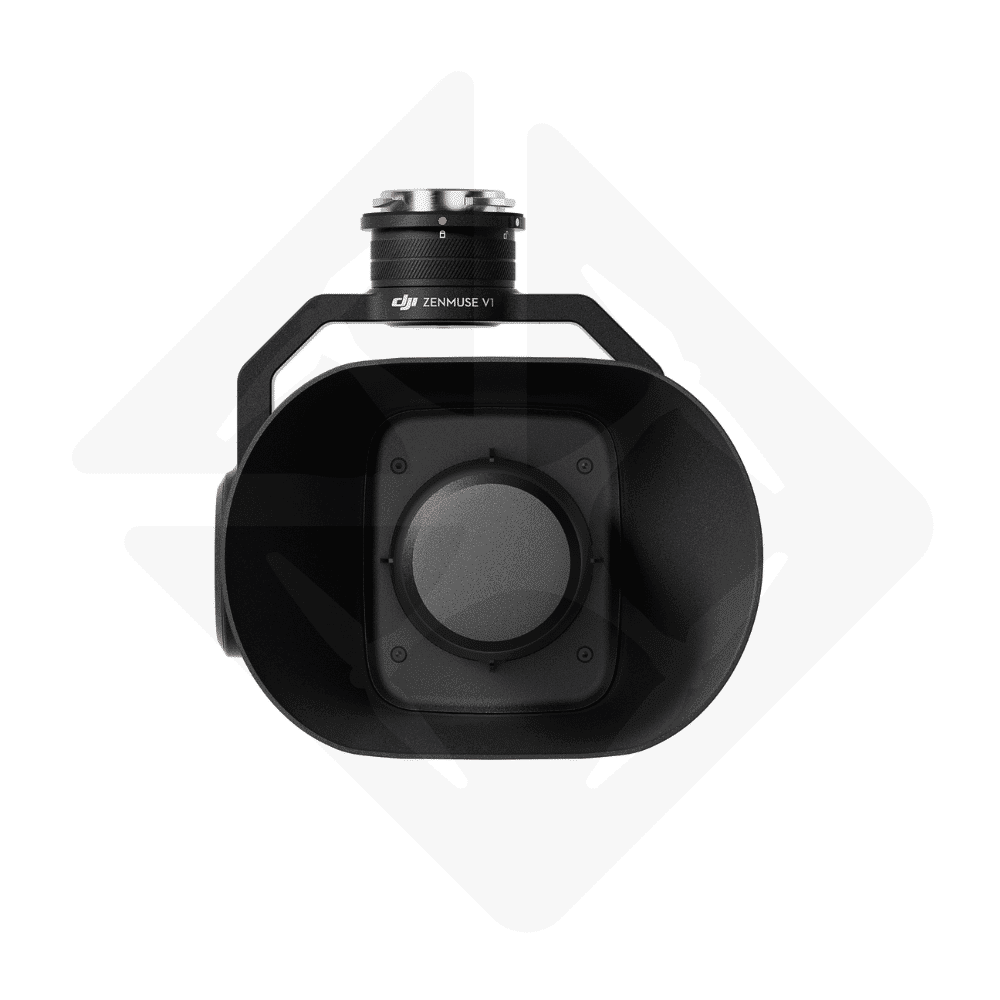

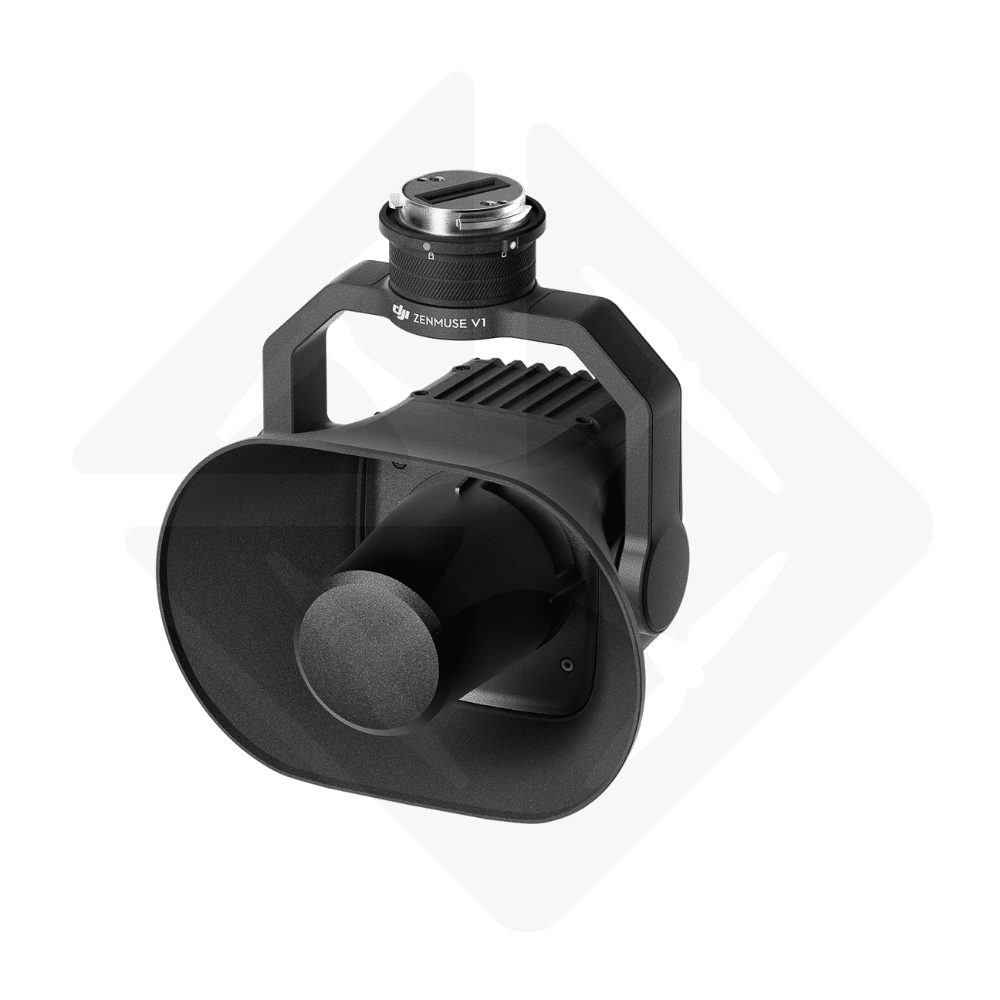

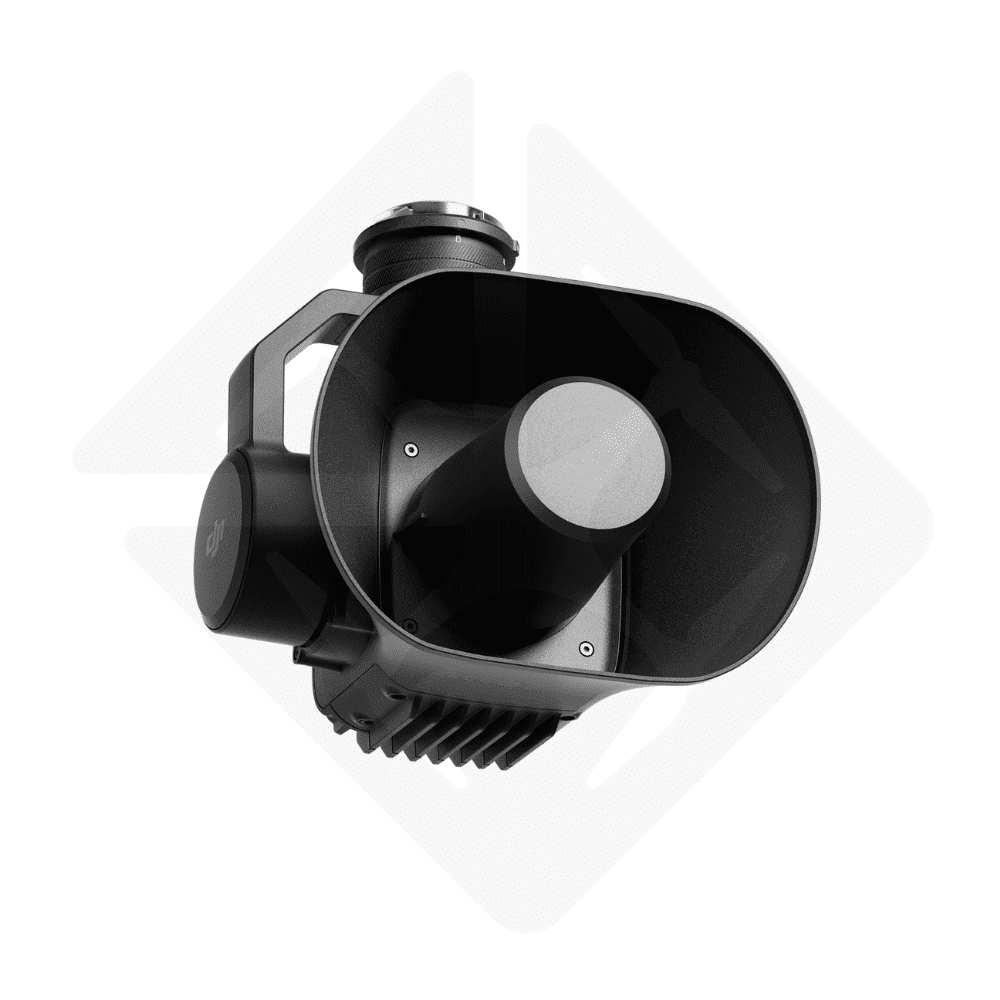

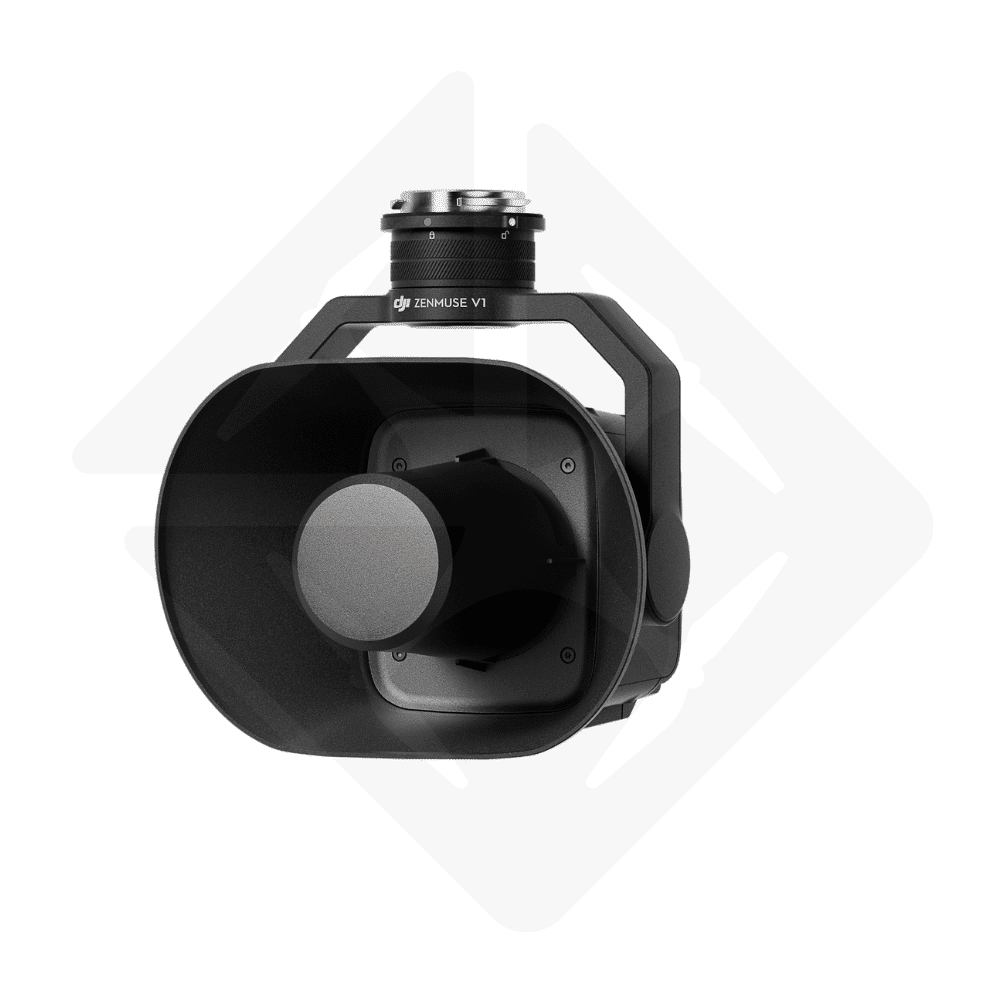

DJI Zenmuse V1 speaker for drones Matrice

Name: DJI Zenmuse V1 speaker for drones Matrice
Brand: DJI Enterprise
SKU: CP.EN.00000649.01
Price: 950.00 EUR
Availability: BackOrder

€ 950,00

The DJI Zenmuse V1 speaker for drones Matrice offers professional voice communication with a range of 250m and up to 120 dB SPL. Compatible with Matrice 300/350 RTK, it offers directional recording, voice synthesis and message broadcasting for safety, rescue and industrial inspection missions.

Available to order: contact us for lead time.

SKU: CP.EN.00000649.01 Category: Safety and rescue EAN : 6937224110625 Brand: DJI Enterprise

Description
Reviews (0)

Introduction

The DJI Zenmuse V1 speaker represents a significant advancement in the field of professional drones dedicated to security and rescue operations . Designed specifically for DJI Matrice Series drones, this high-performance audio system offers an unprecedented aerial voice communication solution. At 690 grams and rated at 30W, the Zenmuse V1 transforms your drone into a powerful communications platform ideal for emergency response, crowd management, search and rescue operations, and industrial site surveillance.

Advanced technical features

Robust design and outstanding audio performance

The DJI Zenmuse V1 speaker stands out for its robust design and outstanding audio performance. Weighing just 690 ± 10 g and measuring 134 x 119 x 140 mm (L x W x H), this compact audio system delivers impressive sound power with a maximum sound pressure level of up to 120 dB SPL. This power allows clear, intelligible broadcasting up to 250 meters away, even in noisy or windy environments.

Unlike lighting solutions like the DJI Zenmuse S1 Projector that improves nighttime visibility, the Zenmuse V1 focuses on audio communication, providing exceptional voice clarity thanks to its intelligent noise reduction technology. This feature is especially useful during rescue missions where clear and precise communication can mean the difference between life and death.

Compatibility and integration

The Zenmuse V1 is specifically designed to integrate seamlessly with DJI Matrice 300 RTK and Matrice 350 RTK drones, requiring the use of the DJI RC Plus radio control system. This integration enables perfect synchronization with other Zenmuse series drone pods, creating a complete ecosystem for professional missions.

The removable DJI SKYPORT mounting system offers exceptional flexibility, enabling the Zenmuse V1 to be installed on different pod configurations: single lower pod, double lower pod or single upper pod. This versatility meets the diverse operational needs of professionals using drones for mission-critical tasks.

Precise stabilization and control

Equipped with a single-axis stabilization system (tilt), the Zenmuse V1 maintains optimum audio performance even in difficult flight conditions. The angular vibration range is remarkably stable, with an accuracy of ±0.01° in hovering and ±0.02° in flight. The mechanical tilt range of -125° to +25° enables sound to be precisely directed at the desired target, maximizing communication efficiency.

This advanced stabilization, similar to that used in the thermal imaging systems of the DJI Enterprise range, ensures that voice messages remain clear and understandable, even when the drone is in motion or subject to adverse weather conditions.

Innovative features

Versatile audio recording and broadcasting

Zenmuse V1 does more than just broadcast pre-recorded messages. It offers a complete set of audio features, including :

Real-time recording and broadcasting: Capture and broadcast personalized messages directly from the remote control, enabling adaptive communication as the situation evolves.
Text-to-speech: Convert text to speech to quickly create clear, precise messages without having to record them manually.
Playback of audio files: Broadcast pre-recorded messages, standardized alerts or even specific sound signals according to mission requirements.
Intuitive playback control: easily manage playback, pause, volume and other audio parameters directly from the DJI RC Plus interface.

High-clarity directional recording

A particularly innovative feature of the Zenmuse V1 is its directional audio recording capability. When recording, the DJI RC Plus remote control can directionally capture voices directly above the microphone, effectively filtering out unwanted ambient noise. This technology ensures that recorded messages are clear and intelligible, even in noisy environments.

The system supports 14-hour internal recording and 32-bit floating-point internal recording, guaranteeing professional audio quality for all your communications. This extended recording capacity is particularly useful for long missions or for documenting communications during critical interventions.

Efficient radio control shortcut

To facilitate use in emergency situations, the Zenmuse V1 supports a customizable shortcut on the remote control, enabling recording to be triggered with a single press. This feature is essential on missions where every second counts, such as security and rescue operations, where rapid communication can save lives.

Professional applications

Public safety and crowd management

In the field of public safety, the DJI Zenmuse V1 loudspeaker transforms Matrice drones into effective aerial communication tools. Law enforcement officers can broadcast clear instructions at public events, demonstrations or emergency situations, improving crowd management and general safety.

The 250-meter range enables coverage of large areas without endangering ground personnel, while exceptional audio clarity ensures that messages are understood even in noisy environments. This capability is particularly valuable when managing potentially dangerous situations, where maintaining a safe distance while communicating effectively is crucial.

Search and rescue operations

For search and rescue teams, the Zenmuse V1 offers a vital means of communicating with people in distress. During natural disasters, accidents in isolated areas or searches in hostile environments, the ability to broadcast reassuring messages or safety instructions can make a significant difference.

Combined with other specialized pods, such as thermal cameras for person detection, the Zenmuse V1 perfectly complements the technological arsenal of rescue teams. The ability to visually locate a person and then immediately communicate with them represents a major advance in modern rescue protocols.

Industrial inspection and site monitoring

In the industrial sector, the Zenmuse V1 facilitates communication between ground crews and drone operators during building and infrastructure inspection missions. Instructions can be transmitted in real-time, allowing for immediate mission adjustments without requiring the drone to land.

For surveillance of sensitive or dangerous sites, the loudspeaker can be used to issue warnings to potential intruders, or to communicate with on-site personnel, without risking the safety of security guards. This application is particularly relevant for large industrial sites, critical infrastructures or restricted-access areas.

Disaster and emergency management

During natural disasters or major accidents, the drone-mounted Zenmuse V1 Matrice can be used as an emergency communications system when conventional infrastructures are damaged or inaccessible. Crisis management teams can broadcast crucial information, evacuation instructions or situation updates to isolated people.

The ruggedness of the system, capable of operating in a temperature range from -20°C to 50°C, ensures its reliability even in the harsh environmental conditions typical of disaster situations. This resilience makes the Zenmuse V1 an invaluable tool in the arsenal of professional emergency response teams.

Integration into the DJI Enterprise ecosystem

Compatibility with existing DJI solutions

The Zenmuse V1 speaker integrates seamlessly into the DJI Enterprise ecosystem, offering full compatibility with Matrice 300 RTK and 350 RTK drones, as well as the DJI RC Plus radio control. This integration enables professionals to easily add audio communication capabilities to their existing equipment without compromising other functionalities.

Synchronization with the cradle enables the direction of sound to be precisely aligned with that of the camera, creating a coherent audiovisual experience. This feature is particularly useful in operations where coordination between visualization and communication is essential.

Complementarity with other payloads

The Zenmuse V1 perfectly complements other Zenmuse series payloads, such as thermal cameras, multispectral sensors and LED projectors. This complementarity makes it possible to create customized drone configurations, adapted to the specific needs of each mission.

For example, by combining the Zenmuse V1 with a thermal camera for people detection and a spotlight for night-time illumination, rescue teams have a complete solution for night-time search and rescue operations. This versatility makes the Matrice system equipped with the Zenmuse V1 an extremely valuable multifunctional tool for professionals.

Detailed technical specifications

General characteristics

Product name: Zenmuse V1
Weight: 690 ± 10 g
Dimensions: 134 x 119 x 140 mm (L x W x H)
Rated power: 30 W
Compatible devices: Matrice 300 RTK (DJI RC Plus required), Matrice 350 RTK
Shell temperature: < 50 °C (plastic shell)
Operating temperature: -20° C to 50° C
Storage temperature: -20° C to 60° C

Stabilization system

Stabilization system: Single axis (tilt)
Angular vibration range: Hover: ±0.01°, Fly: ±0.02°.
Mounting: DJI SKYPORT removable
Mechanical range: Tilt: -125° to +25°.
Adjustable range: Customizable according to mission requirements

Audio features

Impedance: Optimized for maximum audio performance
Rated power: 30 W for powerful diffusion
Effective broadcasting distance: up to 250 metres
Maximum sound pressure level: up to 120 dB SPL
Efficient bandwidth: Optimized for the clarity of the human voice

Advanced features

Recording and playout: Support for real-time recording and playout
Text-to-speech: Convert text to speech for quick messages
Audio file playback: Compatibility with various audio formats
Playback control: Intuitive interface via DJI RC Plus remote control
Radio control button: Customizable shortcut for one-touch recording
Gondola synchronization: Precise alignment with camera direction
Directional audio recording: Targeted voice capture for maximum clarity

Protection and durability

Resistance to environmental conditions

The DJI Zenmuse V1 loudspeaker is designed to withstand the rigors of professional field operations. Its operating temperature range of -20°C to 50°C guarantees reliability in a variety of climatic conditions, from cold environments to hot climates.

The robust plastic shell maintains a temperature below 50°C even during intensive use, ensuring operator safety during post-flight handling. This thermal resistance is particularly important during extended missions, when the audio system operates at full power for long periods.

Payload protection

The system incorporates several protection mechanisms to ensure speaker longevity and reliability. These include :

Overheating protection: automatic temperature control to prevent damage from excessive heat.
Overcurrent protection: prevents current spikes that could damage electronic components.
Power protection: intelligent power management to optimize battery life without compromising performance.

These protection systems, similar to those used in other DJI professional equipment, guarantee the Zenmuse V1’s reliability even under the most demanding conditions.

Conclusion

The DJI Zenmuse V1 speaker for drones Matrice represents a significant advance in professional aerial communications. Its unique combination of audio power, precise stabilization and advanced features makes it an indispensable tool for security, rescue and industrial inspection professionals.

By seamlessly integrating voice communication capabilities with Matrice drone platforms already recognized for their reliability and performance, DJI further expands the application possibilities of drones in critical professional contexts. The Zenmuse V1 illustrates DJI’s ongoing commitment to developing innovative solutions that meet the real needs of professional users.

For organizations looking to enhance their communication capabilities during drone operations, the Zenmuse V1 offers a robust, versatile and high-performance solution that integrates seamlessly into the DJI Enterprise ecosystem. Whether broadcasting critical instructions during an emergency evacuation, communicating with people in distress during rescue operations, or coordinating teams during complex industrial inspections, the Zenmuse V1 sets a new benchmark in professional aerial communication.
