Speedip V2+, drone water sampling, PFAS-ready

Water sampling where boats cannot go

Settling ponds, lagoons, rivers in flood, reservoirs, contaminated or hard-to-reach areas: the Speedip V2+ takes a water sample from the air. The operator stays at a distance, the drone positions itself over the chosen GPS point, and the mission can be fully automated with waypoints in DJI Pilot 2. The system is designed for water network operators, environmental consultancies, public services and laboratories.

How a sampling run works

• The drone hovers above the water: 2 to 6 m for the Matrice 400, 3 to 4 m for the Matrice 350 / 300.
• The operator sets the depth, in manual or automatic mode, then starts the descent. The container opens on the way down.
• At the chosen depth, or on contact with the bottom detected through cable tension, the container fills and closes when it stops or starts to rise.
• The winch raises the container at up to 0.17 m/s; an indicator light shows each phase. The drone must not descend while the container is deployed.
• Back on the ground, the sample is transferred to the laboratory bottle. The container is changed one-handed, with a quick-release button.

Flight and sample safety

A 2 MP starlight camera faces downwards and shows the operation live in DJI Pilot 2, with a field of view of around 180°. A millimetre-wave radar measures the height above the water to the millimetre, from 0.5 to 10 m. The winch monitors cable tension and length, contact with the bottom, reverse winding and motor stall. In an emergency, a cut-off melts the cable in under 10 seconds to free the drone. The health management system (HMS) reports faults and winch maintenance.

Containers: PMMA for routine work, stainless steel for PFAS

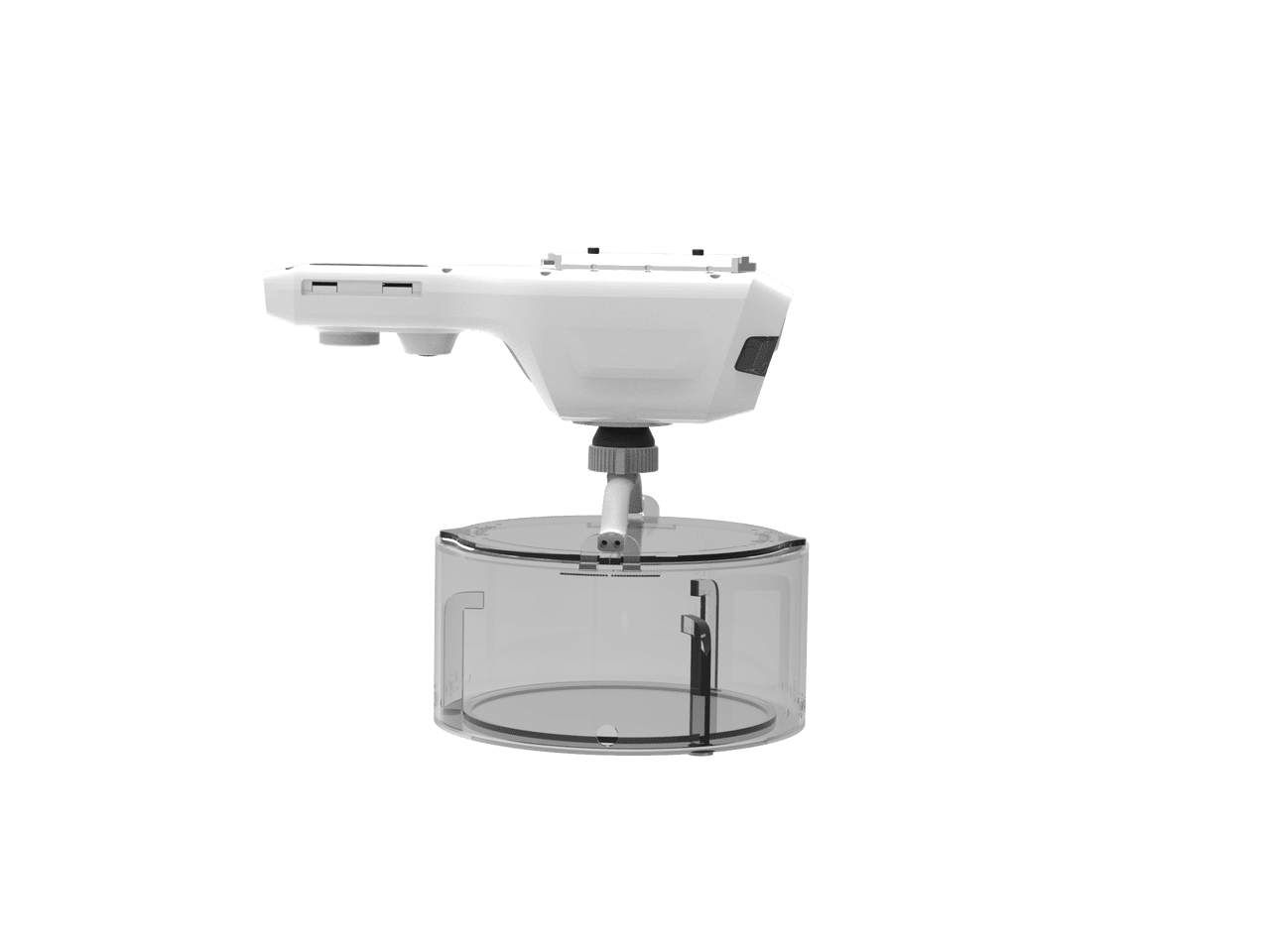

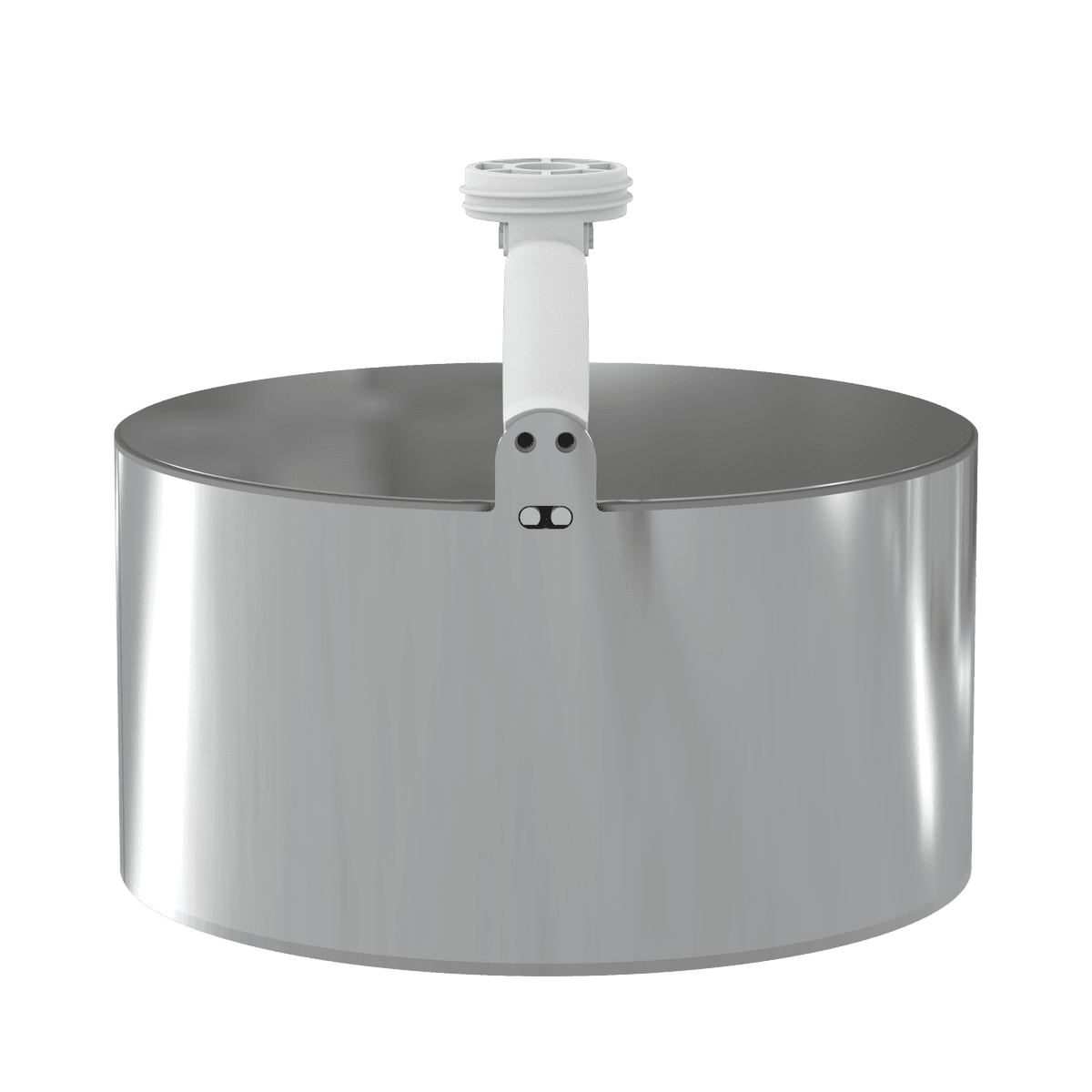

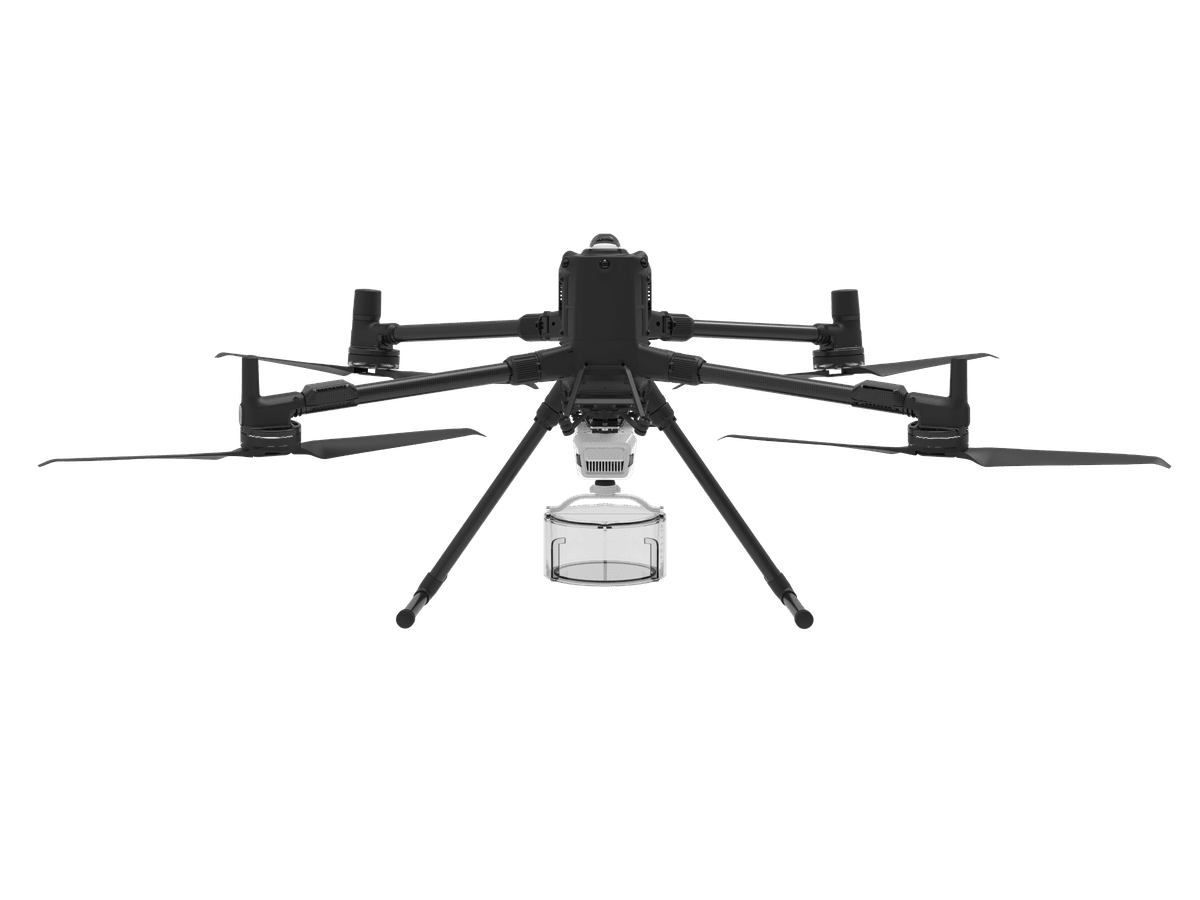

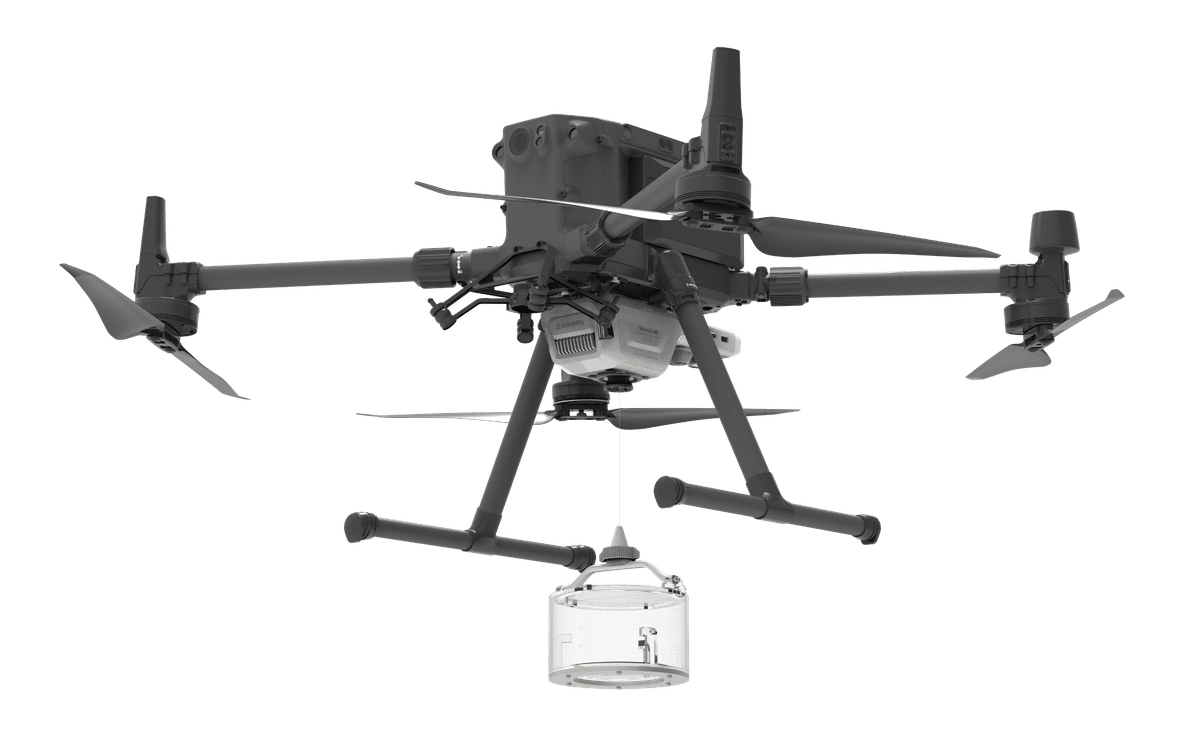

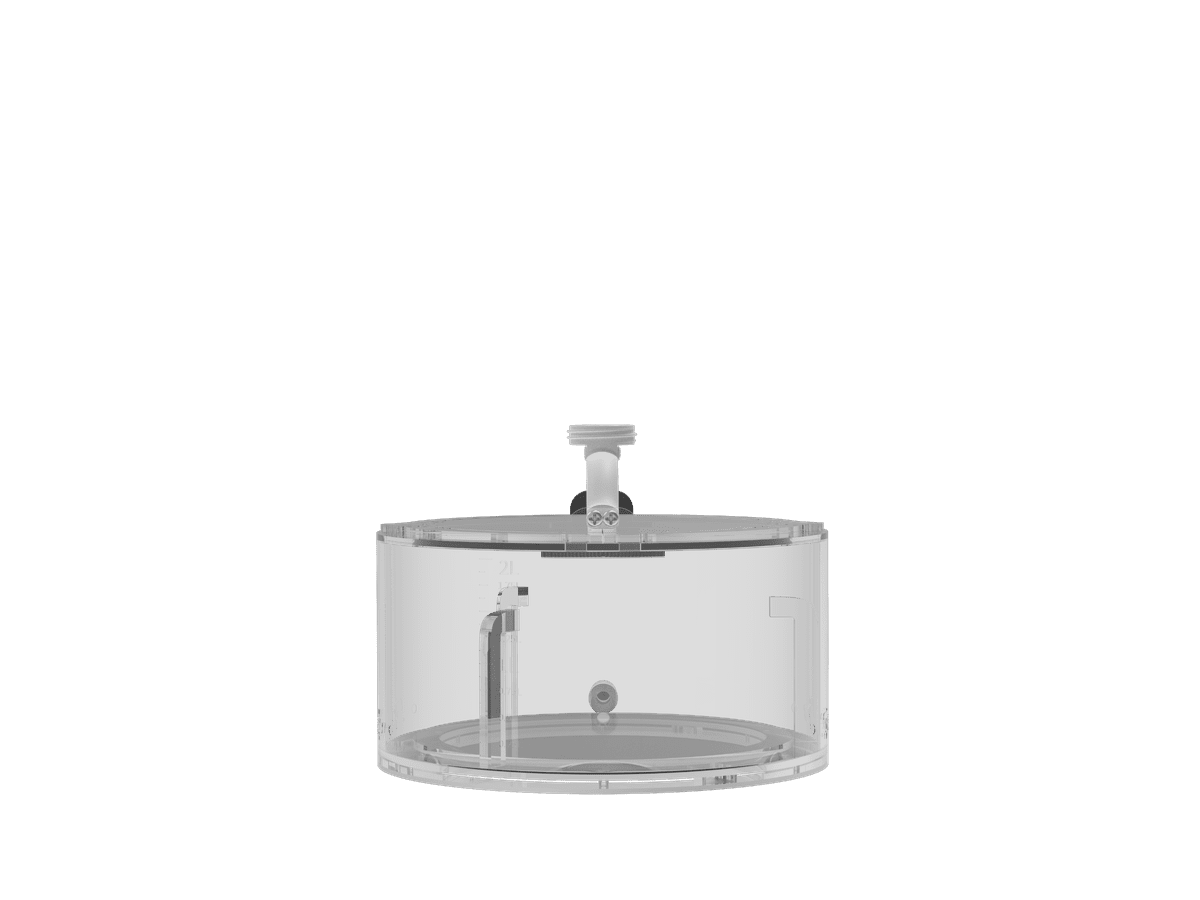

The standard container is made of PMMA bonded with an ultra-low VOC adhesive and weighted with 316L stainless steel: 2 L on the Matrice 400, 1 L on the Matrice 350 / 300 (1.2 L as an option). For PFAS analysis, the 1 L 304L stainless steel container limits leaching and adsorption of these compounds; AIRINS has had it laboratory-validated at ppt level. One container per sample; additional containers are ordered separately. Accessories for the Matrice 400 and the Matrice 350 / 300 are not interchangeable.

Configure your Speedip V2+

Choose your drone model and containers below. You can send the summary as it stands with your quote request.

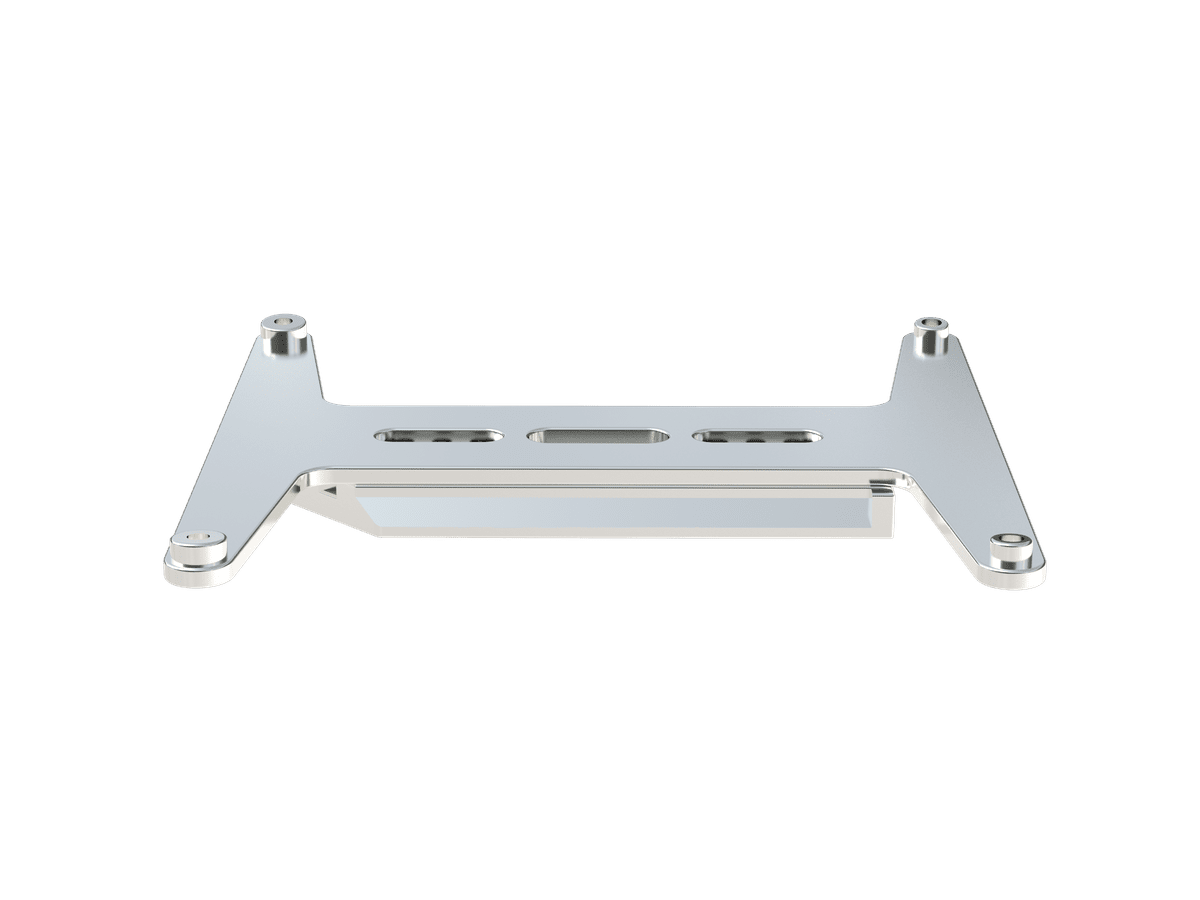

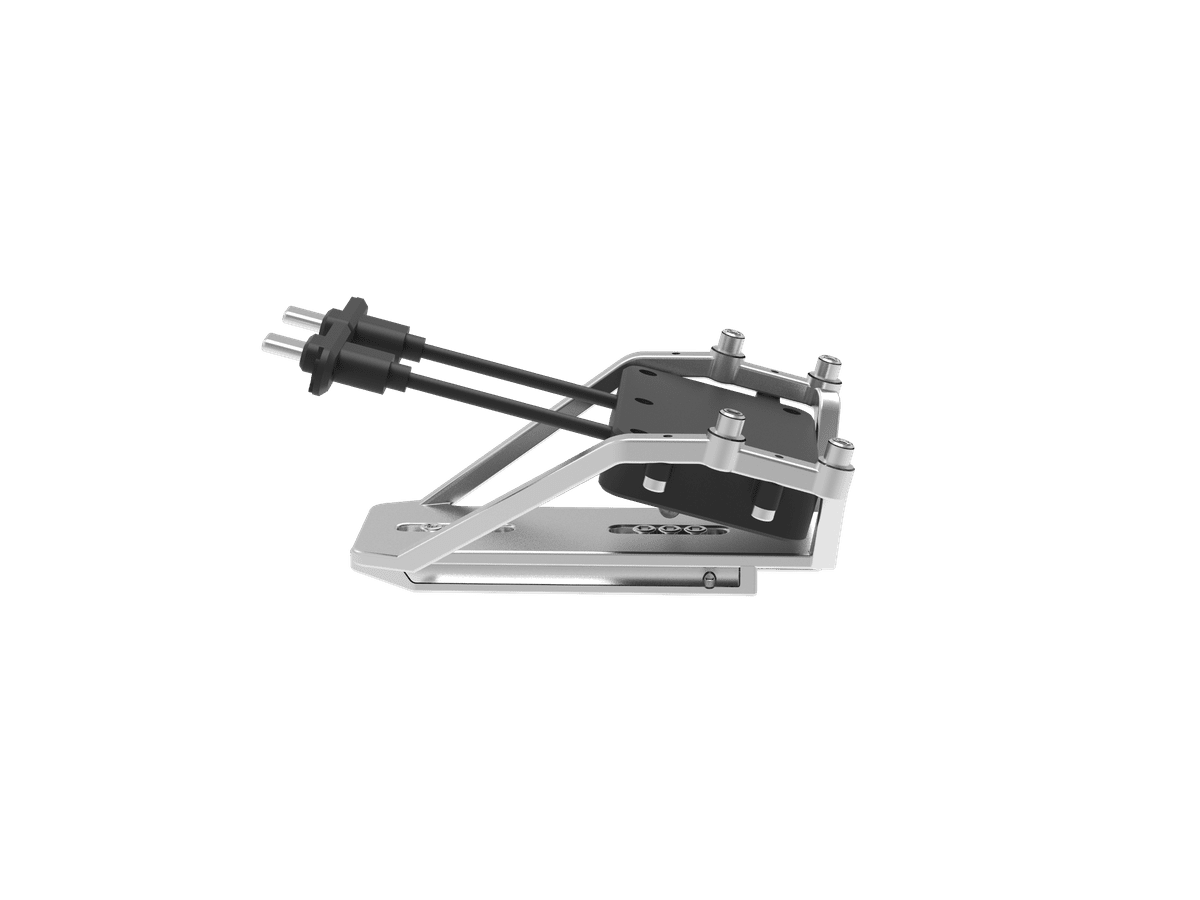

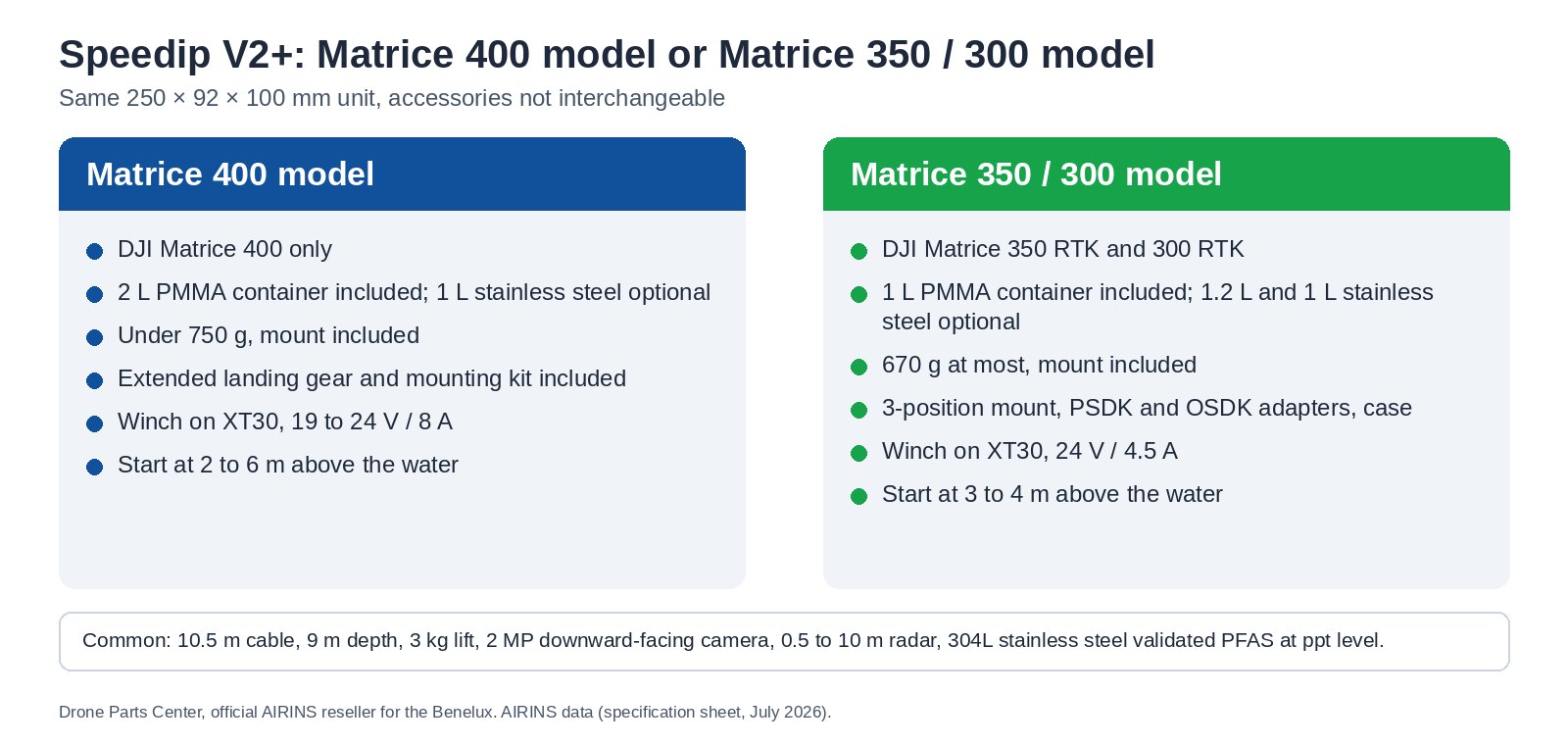

Two models, one per drone family

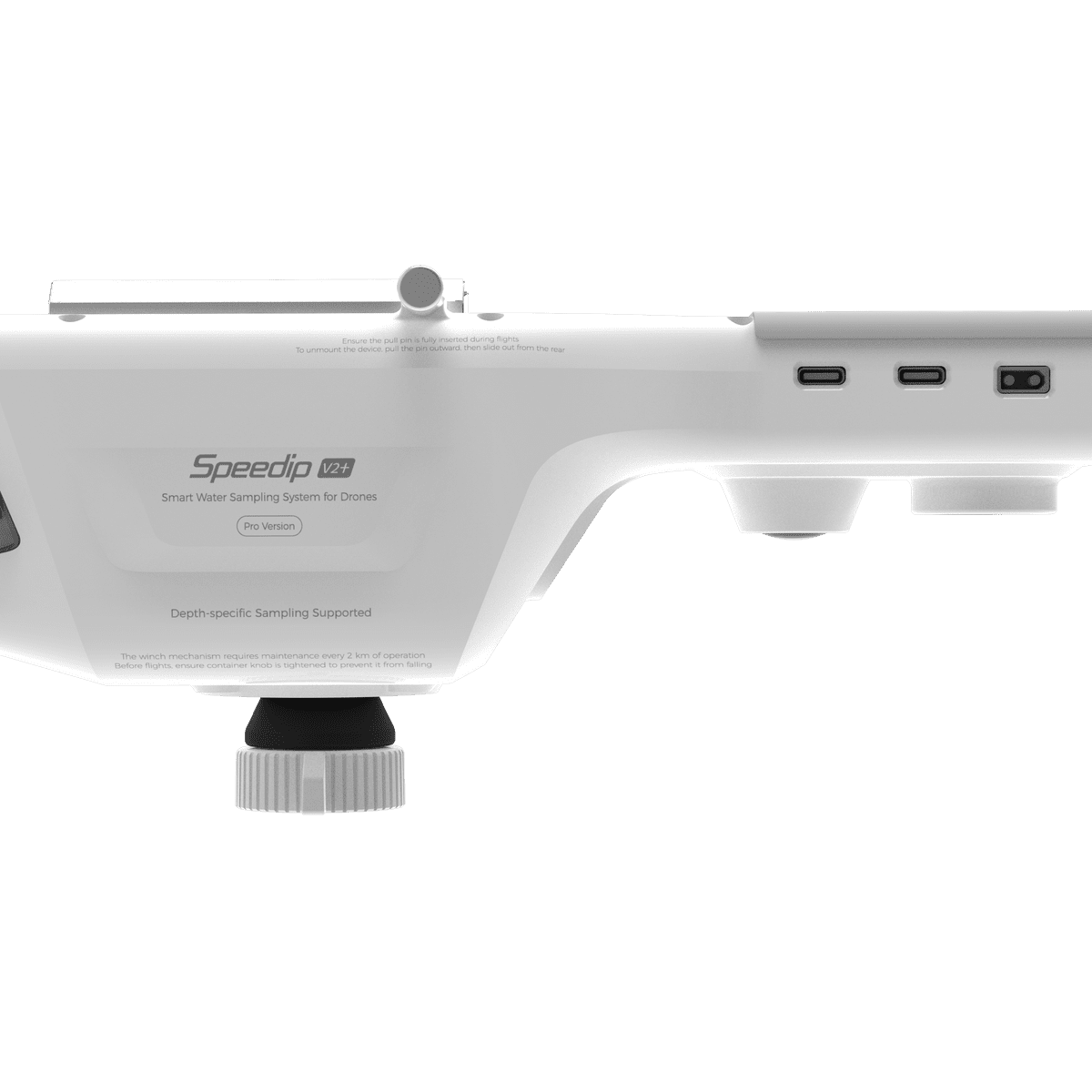

Common technical specifications

Unit dimensions	250 × 92 × 100 mm
Materials	ABS, aluminium alloy and magnesium-aluminium alloy
Cable length	Around 10.5 m; release distance of 10 m at most
Sampling depth	Down to 9 m below the surface, with the drone 1 m above the water
Container speed	0 to 0.17 m/s depending on the phase
Lifting capacity	3 kg
Camera	2 MP starlight, 1/2 inch sensor, F/2.0 aperture, around 180° diagonal, downward-facing
Radar	Millimetre-wave, 1 mm accuracy, 0.5 to 10 m range
Safety features	Cable tension and length, bottom contact, reverse winding, motor stall, emergency cable cut-off in under 10 s
Control	DJI Pilot 2 via PSDK: manual and automatic modes, depth to the decimetre, waypoints; USB-C serial interface for non-DJI drones
Electronics power supply	USB-C PSDK port, 5 V / 3 A at most
Mission log	Built-in SD card
Water resistance	Ports and vents not waterproof; key components treated against moisture, dust and corrosion
Quick mounting	Unit fitted or removed in under 5 s; one-handed quick-release container

Maintenance and operating limits

After each mission, wipe off any remaining water and let the unit dry completely before long-term storage. A strong current reduces the depth actually reached; water heavily laden with sediment can make the container leak at its seals. On the Matrice 400, the drone’s built-in radar is disabled during sampling, and on the Matrice 350 / 300 the downward infrared sensor is covered with a sticker supplied. Water on the ports is not covered by the warranty.

Warranty

Warranty. Standard one-year warranty. The extension can only be purchased with the initial order, at 20% of the total product value per additional year, up to two years of extension. After the warranty period, the hardware and software remain fully usable.

See the Speedip V2+ in action

Order from Drone Parts Center

Drone Parts Center, official AIRINS reseller for the Benelux, advises you on the model, the containers and the sampling procedure, and provides training in Nivelles or at your site. Request a quote with your configuration: purchase orders accepted from public authorities, intra-EU VAT-exempt invoicing for VAT-registered businesses. The Speedip V2+ also appears in our AIRINS and DJI compatibility table. Explore the full AIRINS range and our environmental monitoring solutions.

For gas detection from the same drones, the Sniffer4D Nano 2 Plus mounts on the Matrice 400 and Matrice 350 with a kit, and the MetScan V1P detects methane remotely from both platforms.
