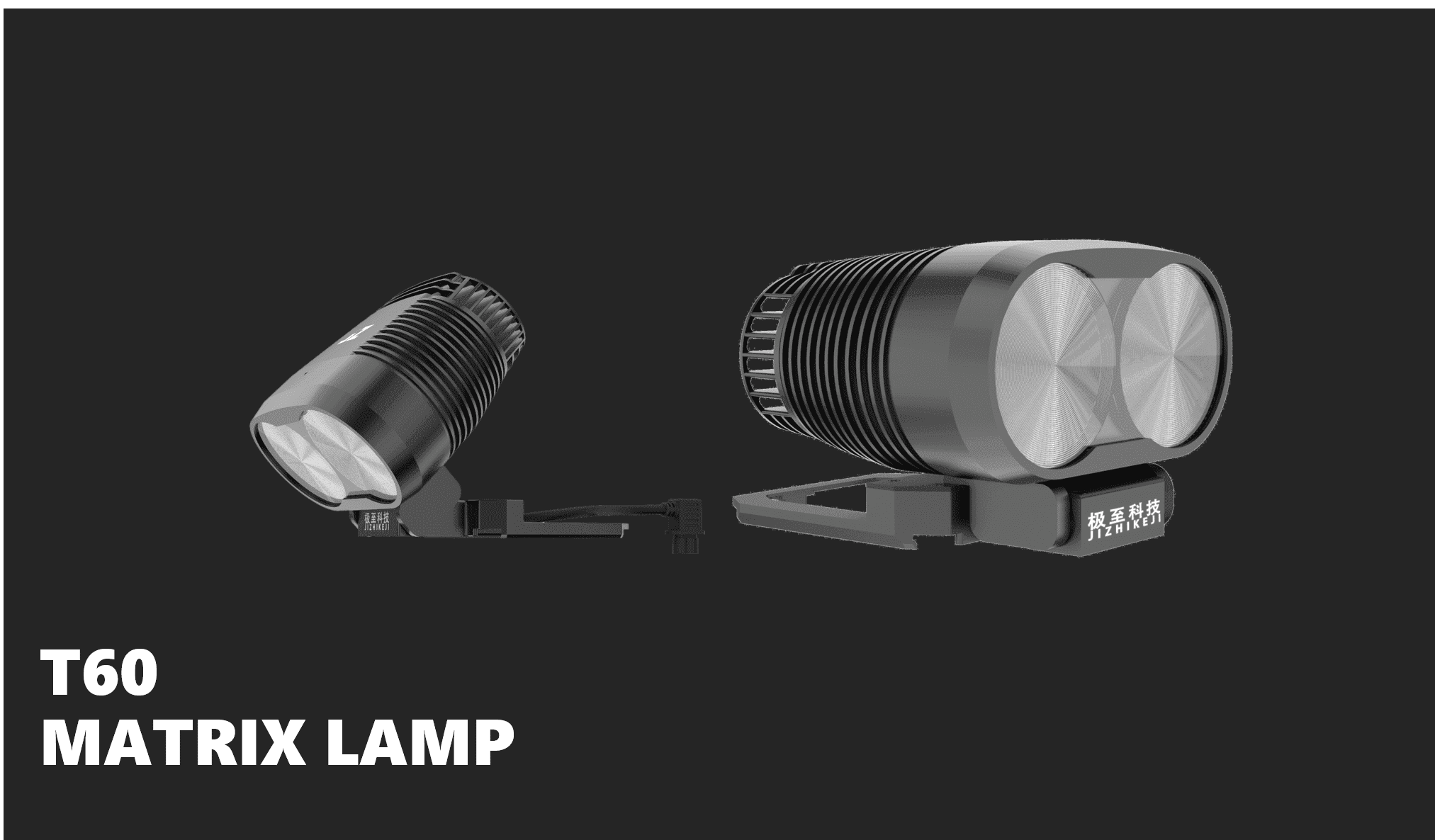

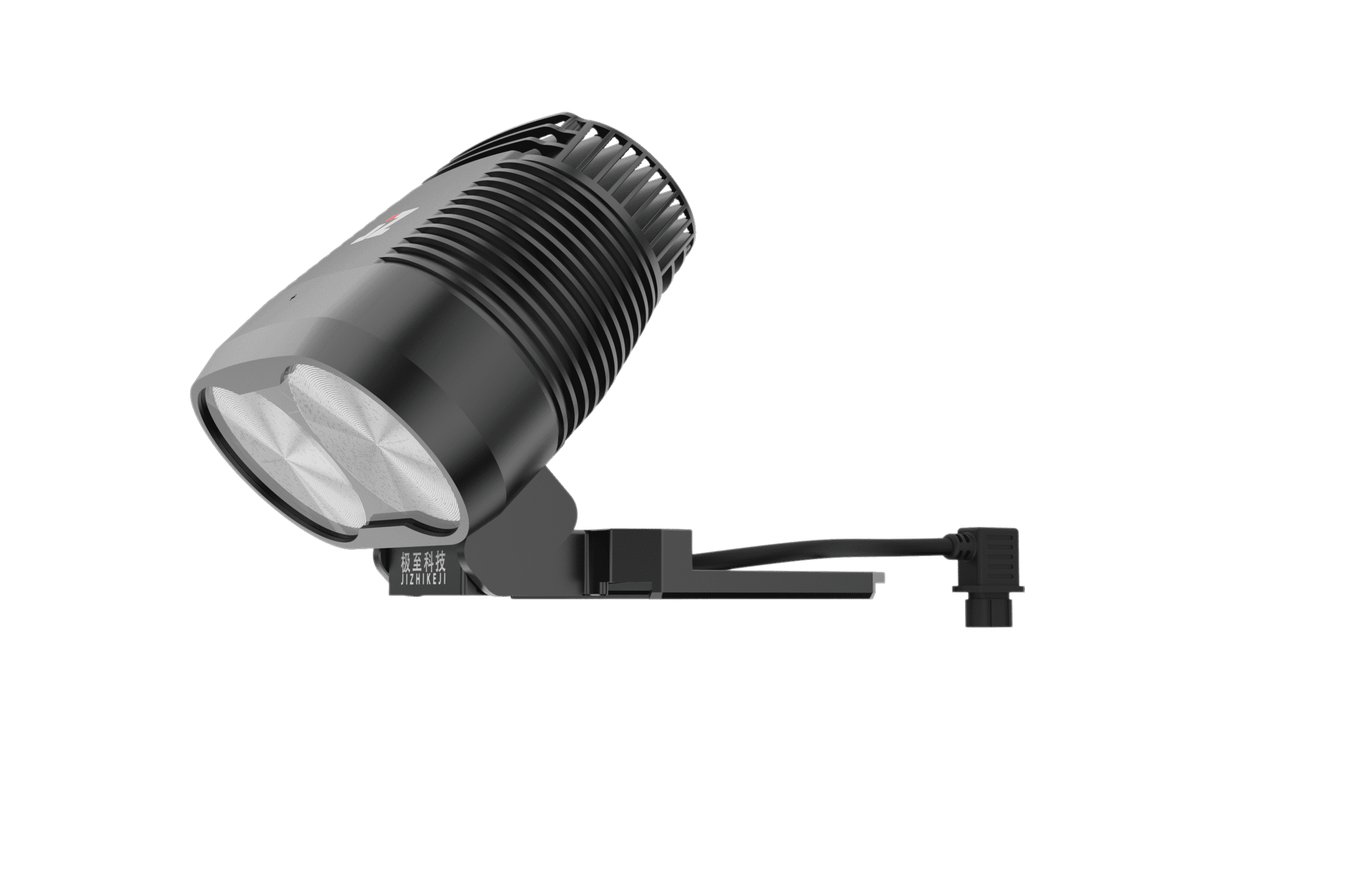

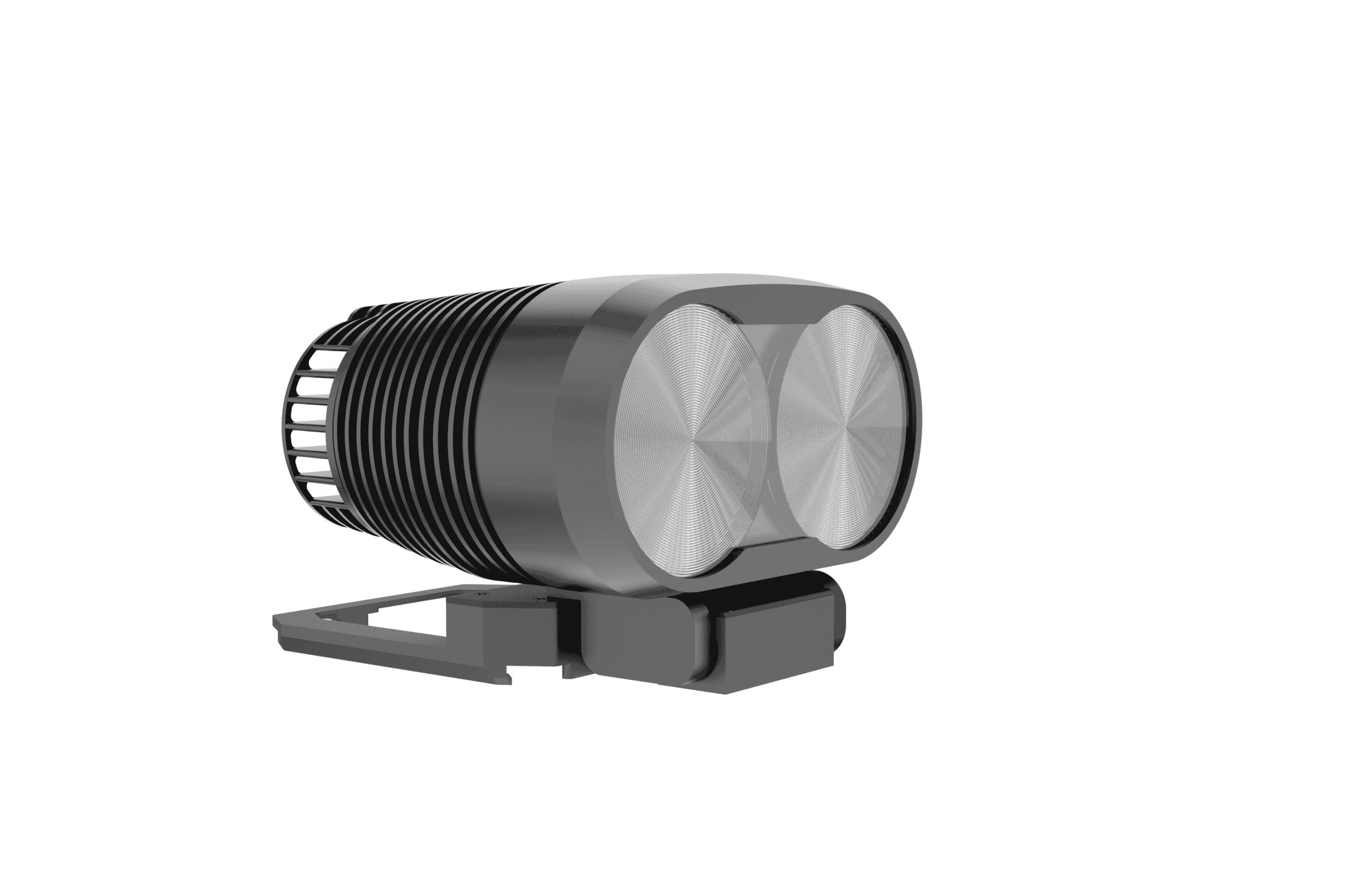

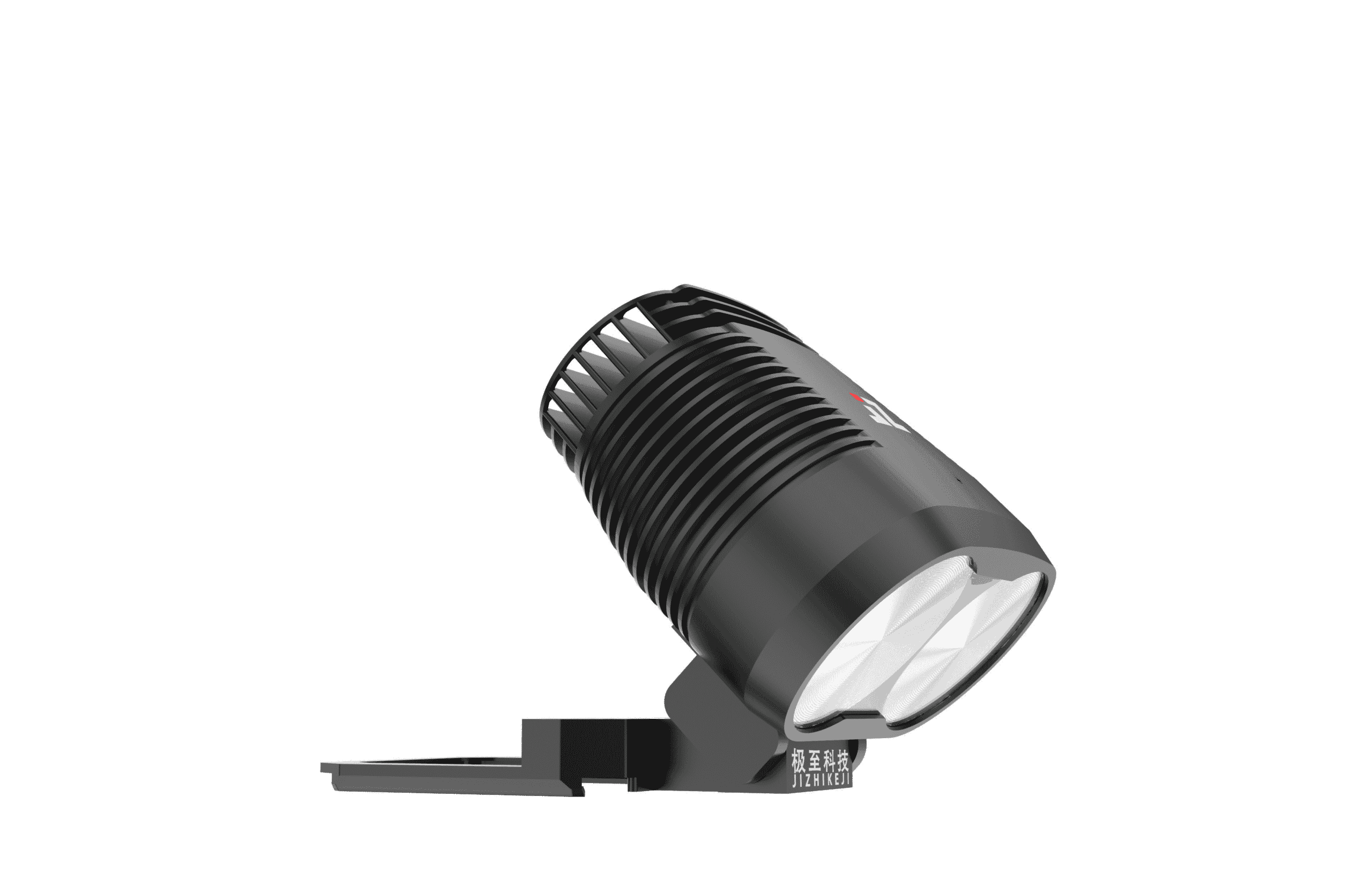

JZ โ LED Projector T60

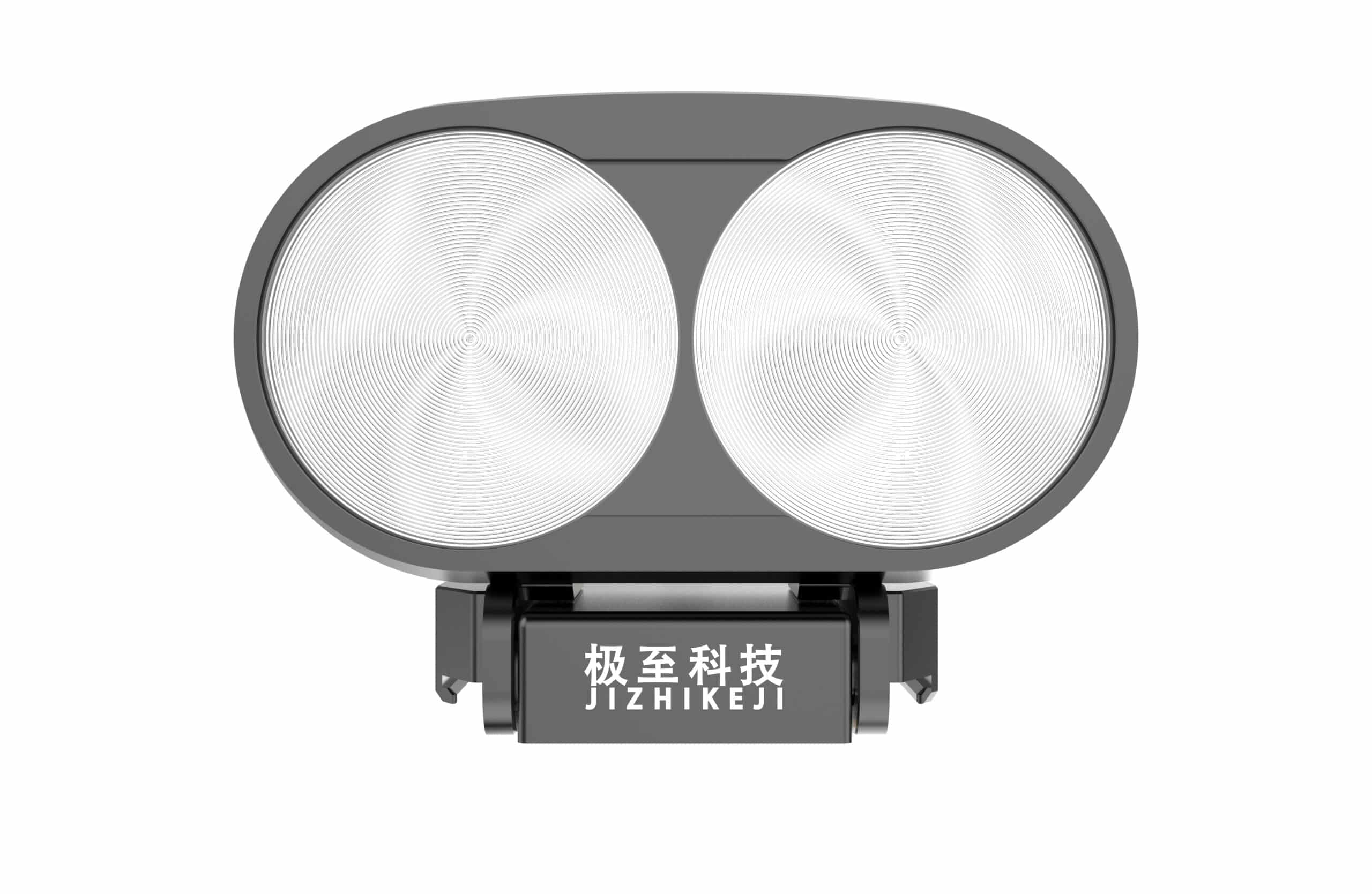

Equipped with two sets of optical lenses, it can emit a uniform column of light of 16ยฐ, the illumination distance is more than 150m, and the exploration area of 50m is more than 150mยฒ.
It is equipped with a standard quick-release mount and a controllable gimbal, which can be linked to the camera. It supports DJI pilot, brightness adjustment, strong light burst and flash modes, among others.
Product Features
Lighting
A button switch, supports brightness adjustment, provides long-distance lighting and search capabilities.
Strong light and flash
Supports burst brightness and burst frequency adjustment.
Gimbal
Controllable gimbal, supporting gimbal control from 0 to -85ยฐ and linkage with the gimbal camera.
Variable heat dissipation
The high-speed cooling fan adjusts speed based on real-time load temperature for efficient heat dissipation.
Technical Parameters
| Product Model | JZ_T60 |
| Electrical Interface | DJI SDK |
| Size | 91.4 x 88.5 x 62.2 mm |
| Weight | 190g |
| Protection Degree | IP4X |

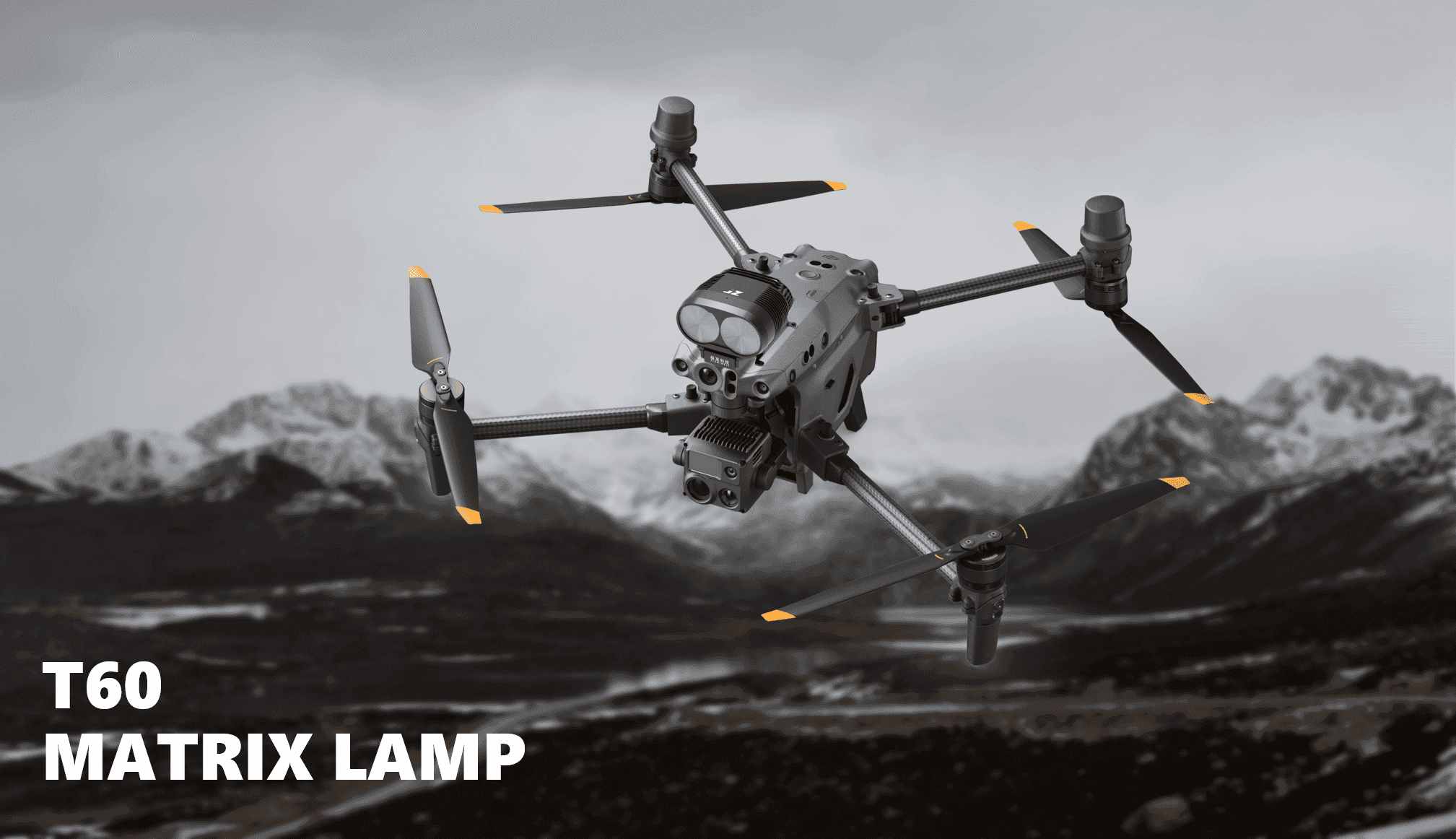

| Supported models | Matrice 30 |
| Max Power | 60W |
| Lighting Mode | Matrix Lamp |
| Lighting Angle | 16ยฐ |
| Gimbal | Controllable gimbal from 0 to 85ยฐ |
| Installation Mode | Standard quick-release mount |
| Operating Temperature | -10 โ ~ 50 โ |
| Storage Temperature | -20 ยฐC ~ 60 ยฐC |
| Lighting Distance | 50m | 100m | 150m |
| Lighting Area | 150mยฒ | 620mยฒ | 1400mยฒ |
| Central Illuminance | 46Lux | 13Lux | 7Lux |
