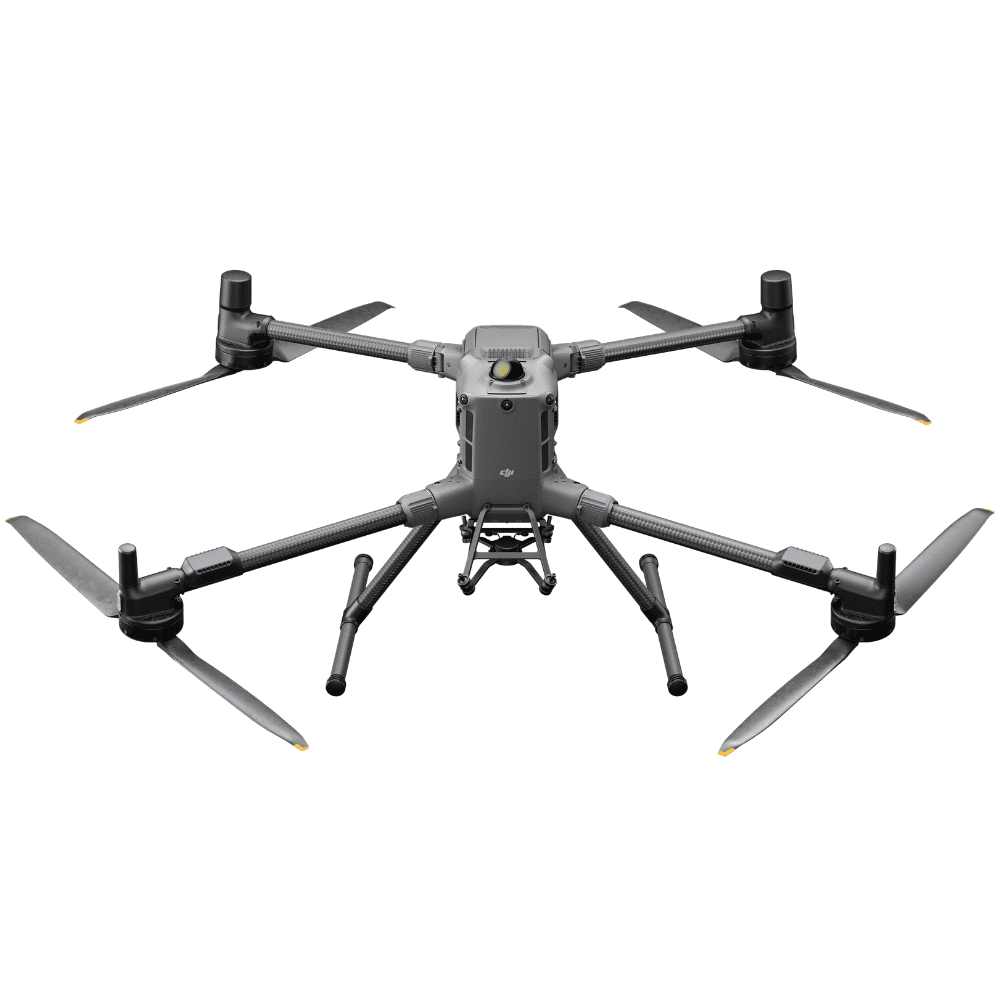

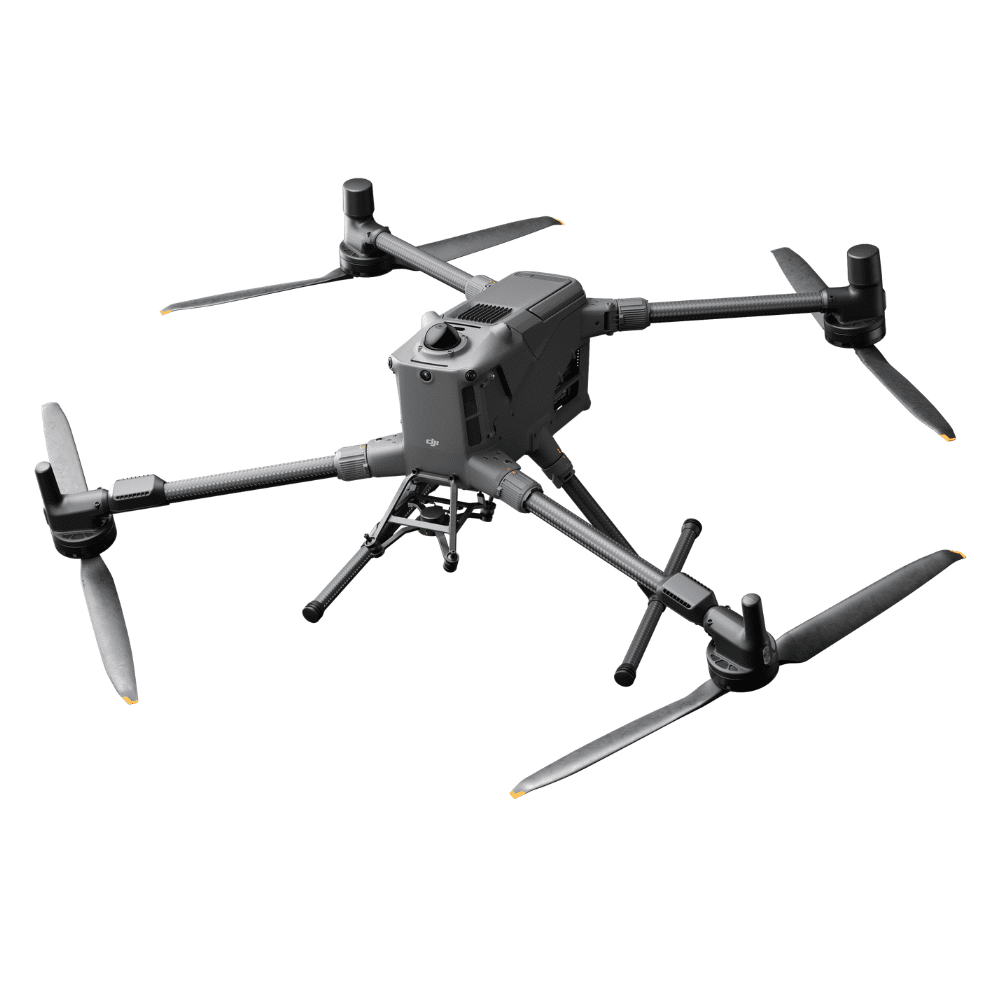

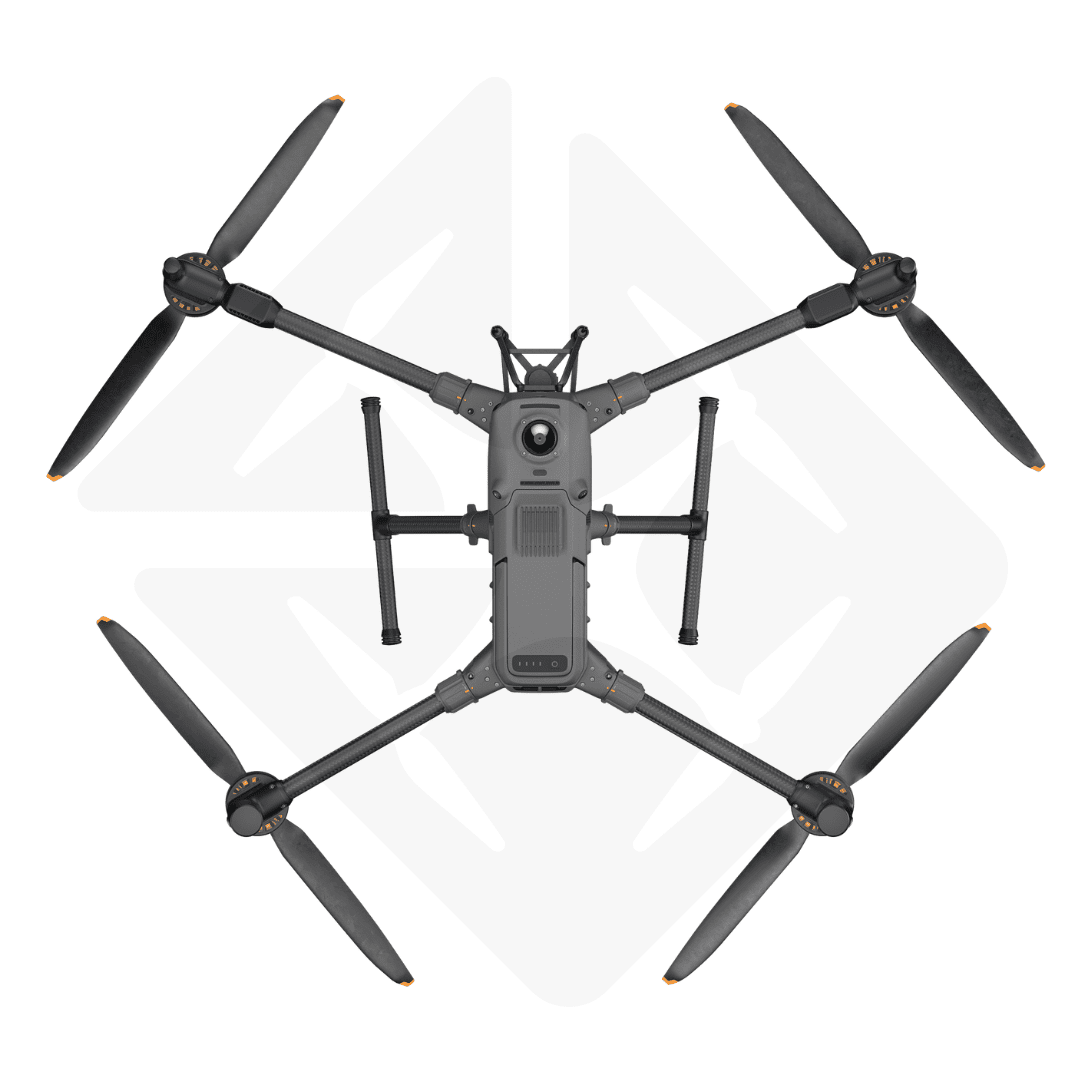

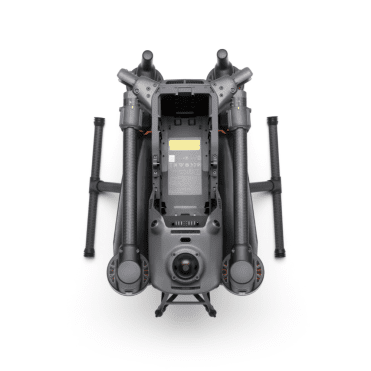

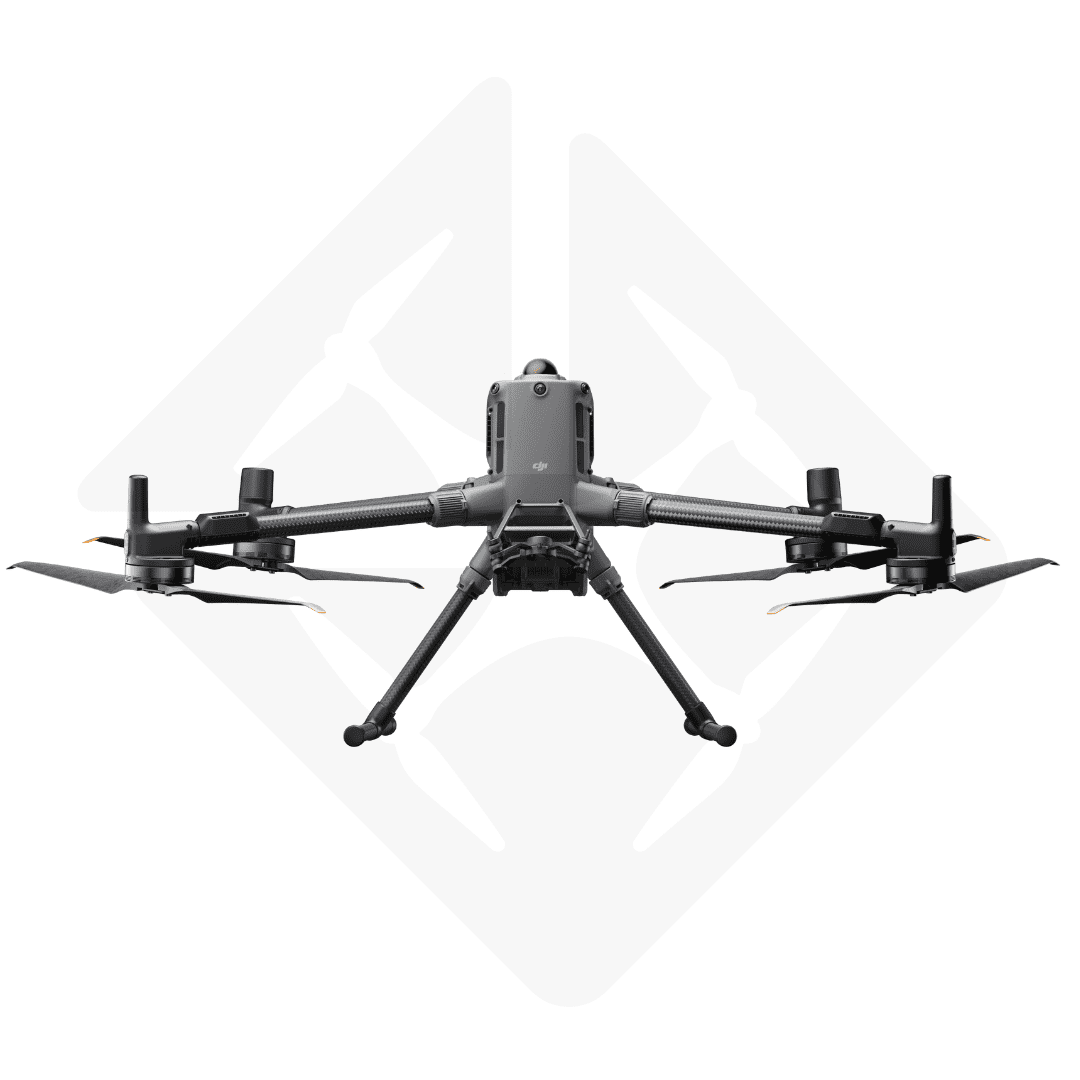

DJI Matrice 400

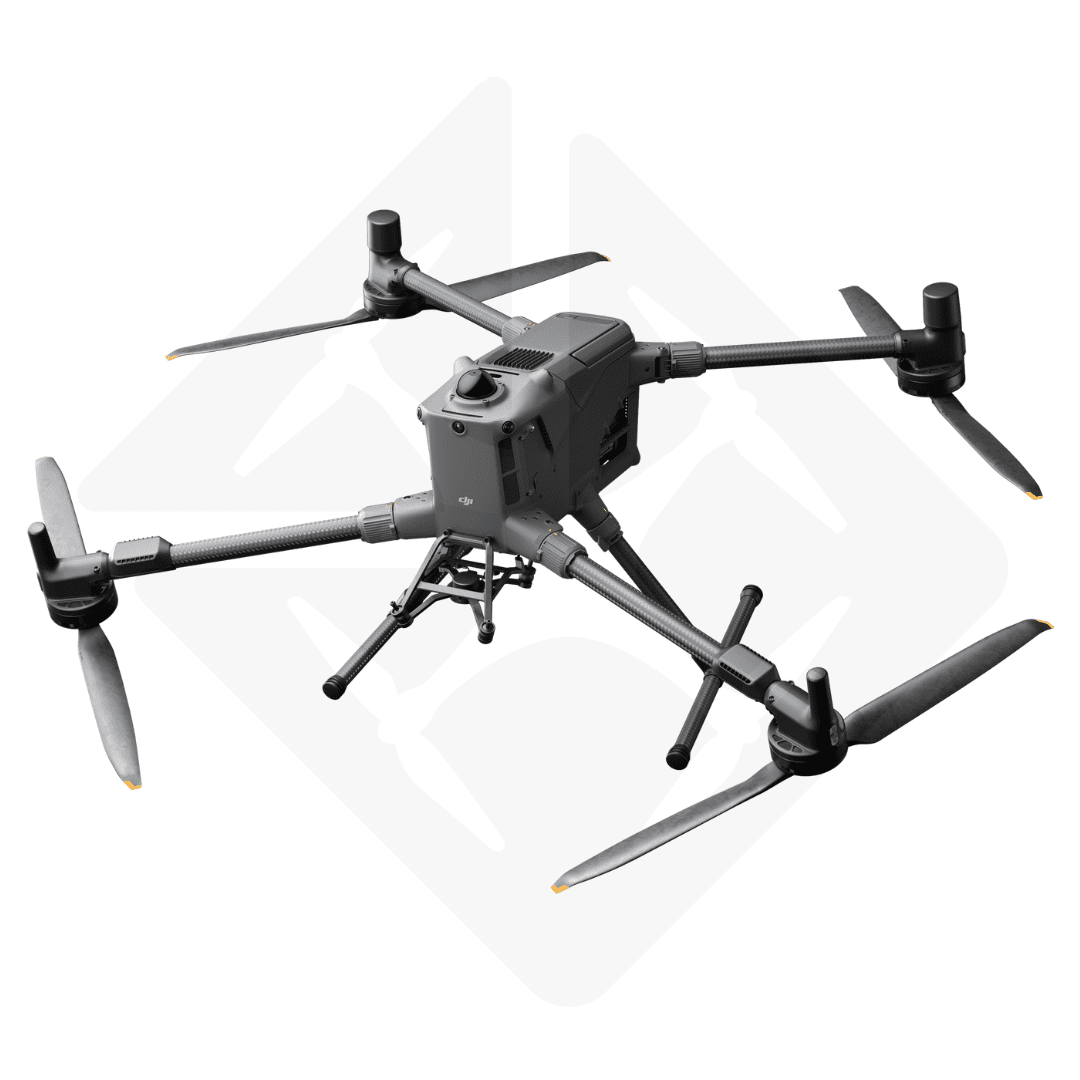

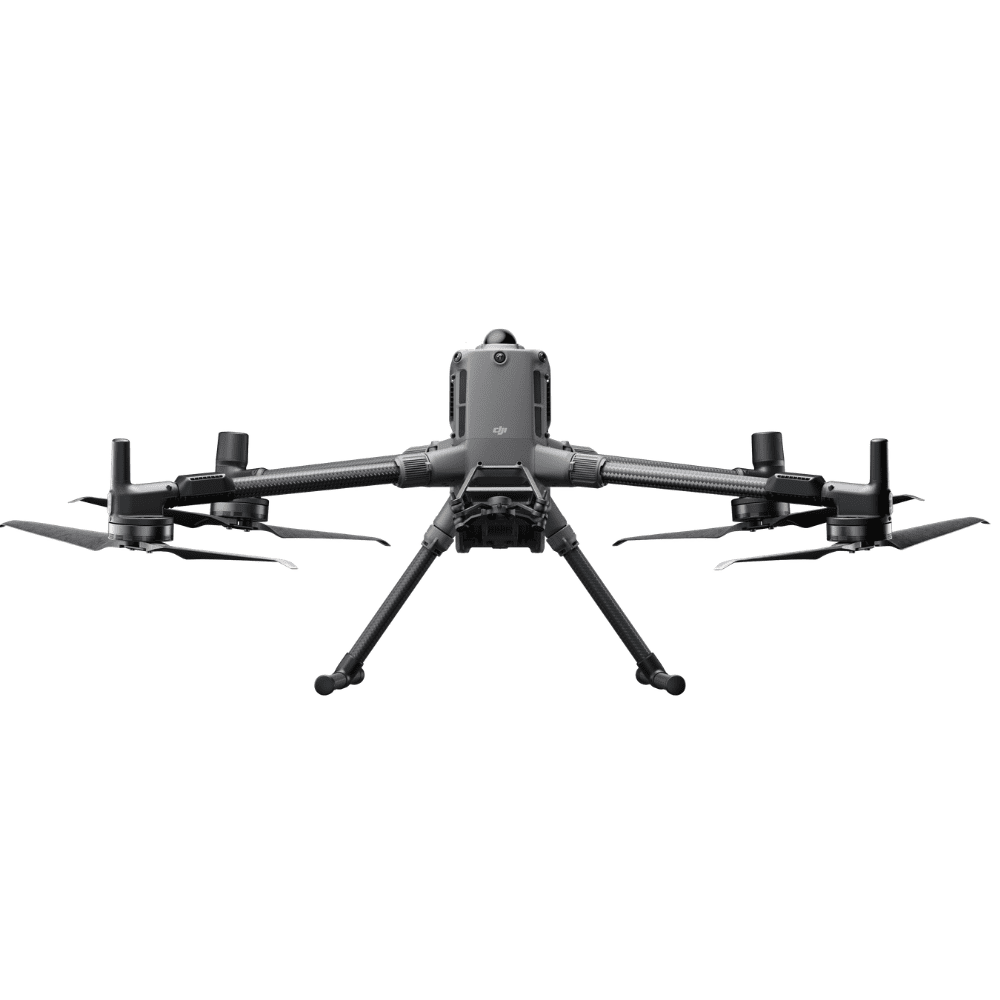

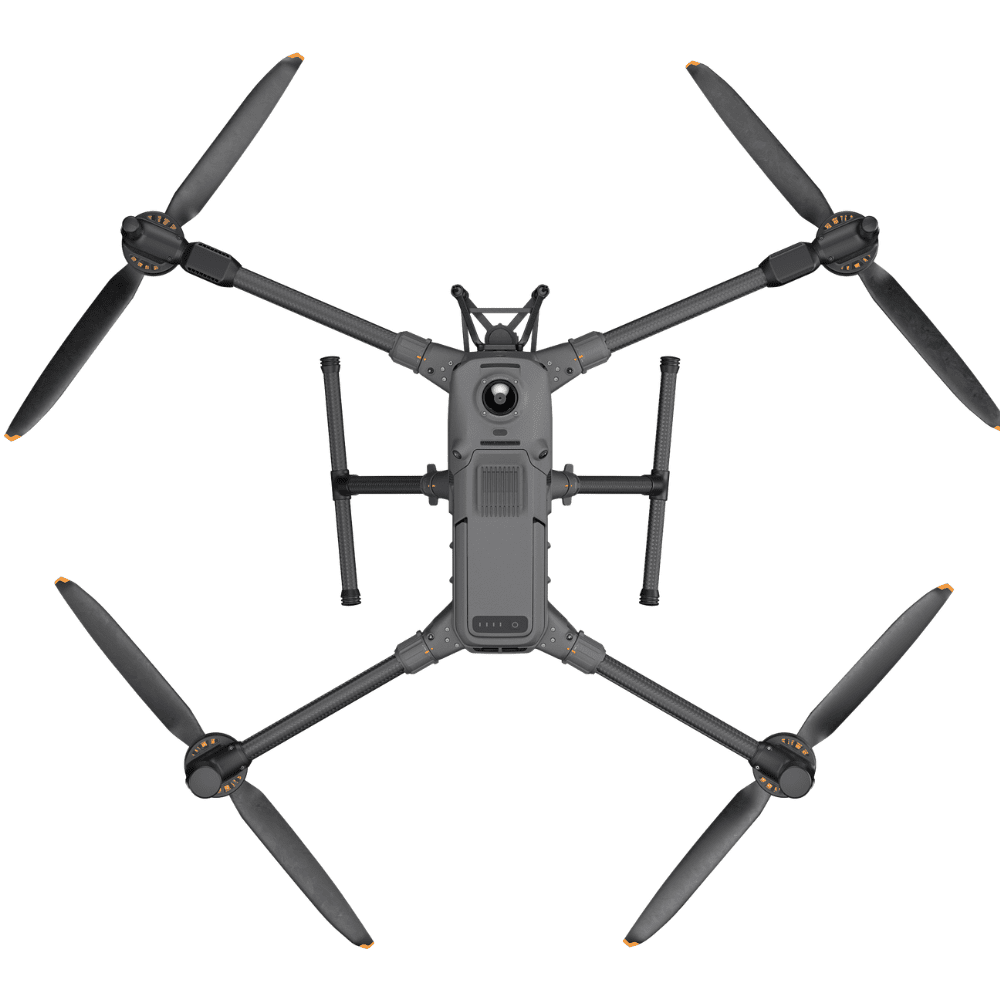

DJI Matrice 400 – Professional Long Range Drone with LiDAR Obstacle Avoidance

The next-generation enterprise drone: 59 minutes of autonomy, 6kg payload and revolutionary obstacle avoidance technologies

The DJI Matrice 400 sets new standards for professional drones with an exceptional 59-minute battery life, a payload capacity of 6 kg , and a power line-level obstacle avoidance system. Designed for critical inspection, mapping, and public safety missions, this enterprise drone delivers unmatched performance with IP55 protection and O4 Enterprise video transmission up to 2.0km.

DJI Matrice 400 Highlights

• 59 minutes of runtime (50% improvement vs. M350)
• 6 kg payload with support for 7 simultaneous payloads
• Obstacle Avoidance Rotary LiDAR + mmWave Radar
• 20 km transmission with O4 Enterprise system
• IP55 weatherproof protection
• Speed 25 m/s with active obstacle avoidance

Revolutionize your flight operations with the DJI Matrice 400

The DJI Matrice 400 marks a new era in professional aviation with technological innovations that push the boundaries of what’s possible in enterprise drones. This intelligent aerial platform has been specifically designed to meet the most stringent requirements of professionals in inspection, mapping, public safety, and search and rescue missions.

With an exceptional flight time of 59 minutes, the Matrice 400 offers a 50% performance improvement over the M350 model, allowing operators to cover larger areas and perform more complex missions without interruption. This remarkable endurance is made possible by advanced aerodynamic optimization and an intelligent energy management system that maximizes the efficiency of every flight.

Revolutionary payload capacity

The Matrice 400’s 6kg payload capacity is more than double that of the M350, opening up new possibilities for the integration of specialized equipment. This platform can simultaneously support up to 7 different payloads, allowing professionals to combine high-resolution cameras, thermal sensors, projectors, speakers and other specialized equipment according to the specific needs of each mission.

This exceptional flexibility makes the Matrice 400 the ideal solution for multi-mission applications where versatility and adaptability are essential. Whether you’re conducting infrastructure inspections, search and rescue operations, or maritime surveillance missions, this professional drone is perfectly suited to your operational requirements.

Power Line Level Obstacle Avoidance System

The Matrice 400’s revolutionary obstacle avoidance system incorporates three state-of-the-art technologies to ensure unmatched flight safety. The rotating LiDAR offers precise omnidirectional detection, while the high-precision mmWave radar enables obstacle detection even in conditions of reduced visibility. Low-light color fisheye vision sensors complement this system by providing detailed visual perception of the environment.

This combination of technology allows the drone to automatically detect and avoid obstacles as fine as high-voltage power lines, even in mountainous terrain and in complete darkness. This unique capability positions the Matrice 400 as the benchmark for mission-critical safety where reliability is paramount.

Full technical specifications

Flight Performance

flight time

speed

Speed

speed

Service Altitude

resistance

Temperature

Characteristic	Specification
Maximum	59 minutes (without payload)
Maximum	25 m/s (with active obstacle avoidance)
Ascension	8 m/s
Descending	5 m/s
Maximum	7,000 m
Wind	15 m/s
Operating	-20°C to +50°C

Dimensions and weight

Maximum

weight

capacity

protection

Characteristic	Specification

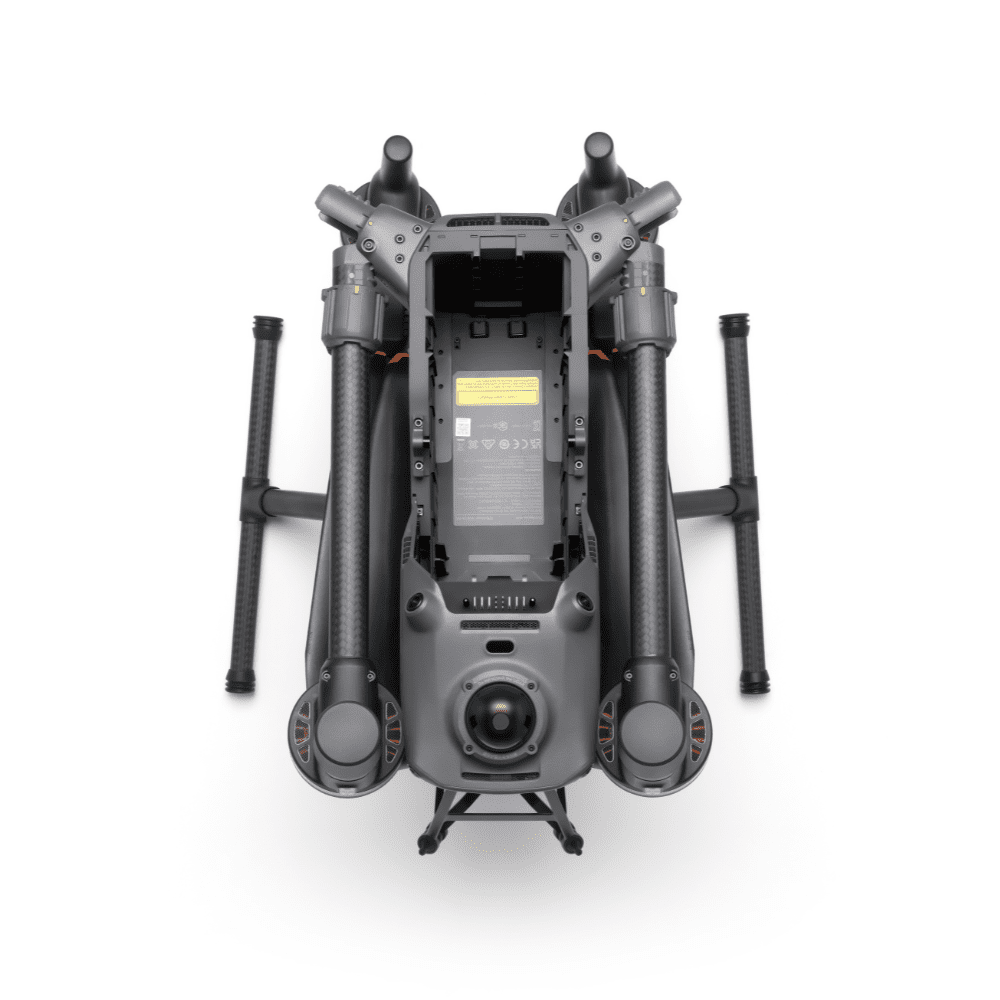

Dimensions (bent propellers)	1085 × 1085 × 727 mm (L × W × H)
take-off weight	9.5 kg
Curb	3.6 kg
Payload	6 kg
Number of concurrent payloads	Up to 7
Environmental	IP55

O4 Enterprise Transmission System

The Matrice 400’s O4 Enterprise transmission system sets new standards in connectivity and reliability. With a maximum range of 20 km (CE/SRRC/MIC), this system ensures a stable video link even in the most demanding environments.

range

frequencies

support

quality

Characteristic	Specification
Maximum	20 km (CE/SRRC/MIC)
Supported	2.4 GHz, 5.8 GHz, sub-2G
4G	Built-in dual 4G dongle
Resistance to interference	Enhanced anti-interference capabilities
Video	High-definition real-time transmission

Smart features and automation

Airborne Relay and Advanced Connectivity

The Matrice 400’s built-in transmission relay module allows the drone to serve as a relay for other Matrice series devices (M400, M4E/4T), effectively solving signal blocking problems in mountainous regions or dense urban environments. This revolutionary feature significantly extends the operational range of drone fleets and improves multi-aircraft mission coordination

Advanced maritime capabilities

The Matrice 400 excels in maritime operations with its unique capabilities for taking off from stationary ships and landing on moving ships. This feature opens up new possibilities for coastal surveillance, maritime search and rescue operations, and offshore infrastructure inspection.

Intelligent tracking and automation

The real-time terrain tracking and power line tracking system significantly increases the efficiency of large area mapping and power line point cloud capture missions. These automated features allow operators to focus on data analysis rather than manual steering, improving productivity and mission accuracy.

Intelligent flight modes available:

• Cruise : Automated flight on predefined trajectories
• FlyTo : Autonomous navigation to destination points
• Smart Track : Automatic tracking of moving objects
• POI (Point of Interest): Automatic orbit around points of interest
• Smart AR Projection : Augmented reality projection for intuitive navigation
• Sloping and Geometric Roads : Flight Planning Adapted to the Terrain
• Intelligent detection with H30T : Automatic object and anomaly recognition

Business applications and use cases

Public Safety and Law Enforcement

The DJI Matrice 400 transforms public safety operations with its expanded capabilities and exceptional reliability. The 50% improvement in flight time over the M350 allows law enforcement to conduct longer patrols and cover larger areas without interruption.

The 6kg payload capacity allows for the simultaneous integration of H30T thermal cameras, S1 high-power floodlights, and V1 speakers, creating a complete platform for emergency response. Dual 4G transmission support and sub-2G frequency ensure reliable connectivity even in dense urban environments with strong electromagnetic interference.

Search and Rescue

For search and rescue missions, the Matrice 400 offers unmatched capabilities with its intelligent victim and vehicle detection. Automatic terrain following during manual flight greatly simplifies operations, allowing pilots to focus on searching rather than navigating.

Obstacle avoidance sensors ensure a more reliable and safer flight, even in difficult conditions. Night operation floodlights and wired power systems provide continuous illumination for long-term missions. AR Street View functionality improves navigation and coordination with ground crews.

Maritime surveillance and coastal operations

Maritime operations particularly benefit from the unique capabilities of the Matrice 400. Vessel detection and counting, combined with floodlight lighting and loudspeaker broadcasting, create a complete platform for coastal surveillance and maritime regulatory enforcement.

The ability to take off and land on ships is revolutionizing offshore operations, allowing the deployment of drones directly from mobile platforms. This feature is particularly valuable for offshore infrastructure inspection, environmental monitoring, and deep-sea search and rescue operations.

Mapping and geospatial

For geospatial applications, the Matrice 400 offers a 50% improvement in effective flight time per mapping mission, allowing wider areas to be covered with fewer flights. The maximum mapping speed of 25 m/s represents a 60% increase over previous models, significantly speeding up large-scale projects.

The payload capacity of 6 kg allows the integration of L2 LiDAR sensors or P1 photogrammetric cameras with auxiliary equipment. The 4G dual transmission support ensures constant connectivity for real-time data transfer, even in remote areas.

Supported route types:

• Orthogonal roads for standard mapping
• Oblique Roads for 3D Modeling
• Sloping roads adapted to the terrain
• Smart 3D for automatic reconstruction
• Geometric Routes for Specialty Applications
• Linear roads for infrastructure inspection

Inspection of electrical infrastructure

Power line inspection is one of the most advanced areas of application for the Matrice 400. The 50% improvement in flight time and extended transmission range make it possible to inspect longer sections of power grid in a single mission.

Relay mode effectively solves signal blocking issues in mountainous regions, ensuring constant connectivity even in the most challenging terrain. The avoidance of obstacles at the power line level ensures maximum safety when inspecting near high-voltage infrastructure.

Renewable Energy & Offshore Inspection

For offshore wind turbine inspection, the Matrice 400 combines a flight range of 59 minutes with the ability to take off and land on ships, allowing for complete inspections without returning to the land base. Power line-level obstacle avoidance ensures optimal safety when inspecting in the vicinity of rotating blades.

The inspection of solar panels benefits from the significant improvement in flight time, making it possible to cover large photovoltaic installations in a single mission. Compatibility with H30T thermal imaging cameras allows for the accurate detection of faulty cells and hot spots.

Ecosystem and compatibility

Compatible cameras and gimbals

The DJI Matrice 400 is compatible with the entire DJI Enterprise ecosystem, providing maximum flexibility to adapt to the specific needs of each mission.

Gimbal cameras supported:

• Zenmuse H30 : Hybrid optical and thermal zoom camera
• Zenmuse H30T : Advanced thermal version with intelligent sensing
• Zenmuse L2 : High-precision LiDAR for 3D mapping
• Zenmuse P1 : 45 MP full-frame photogrammetric camera

Assistive:

• Zenmuse S1 : High-power floodlight for night operations
• Zenmuse V1 : Directional speaker for communication
• Manifold 3 : Embedded computer for AI and real-time processing

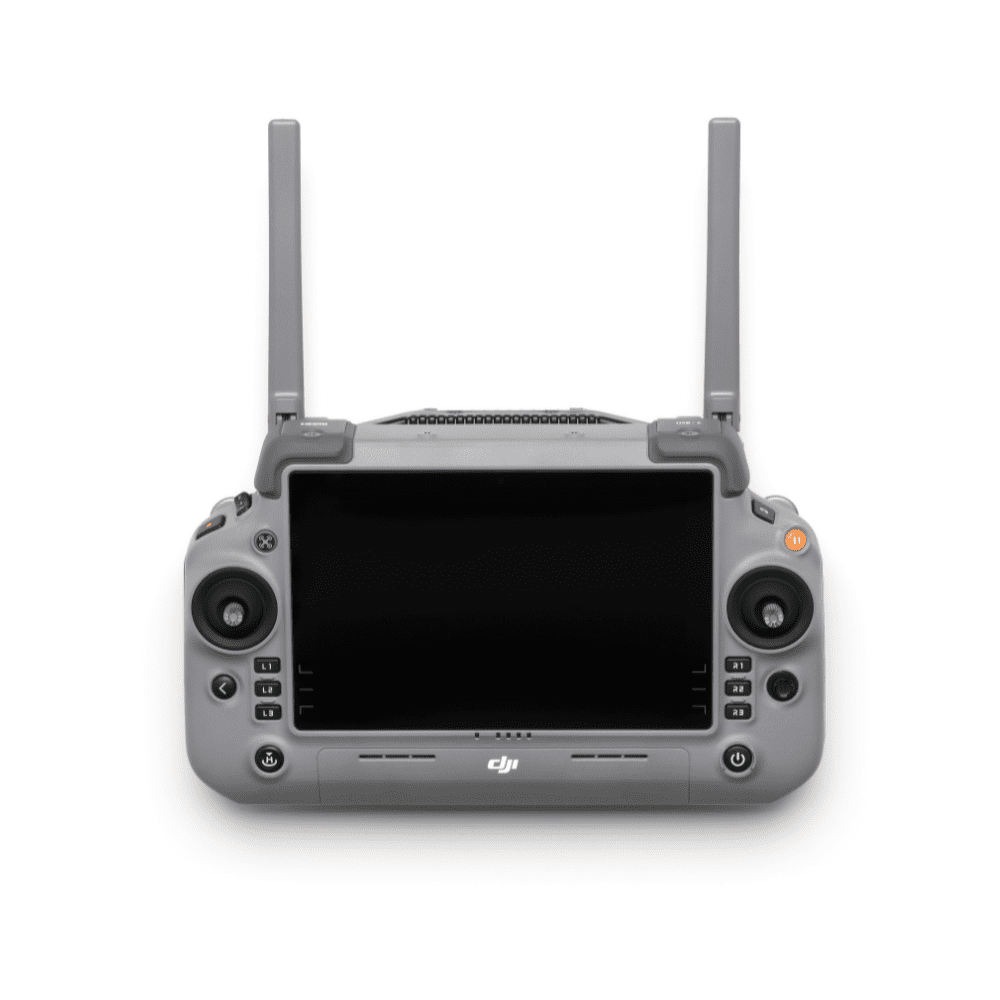

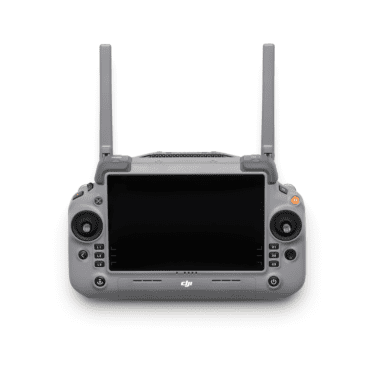

DJI RC Plus 2 Enterprise Enhanced Remote Controller

The DJI RC Plus 2 Enterprise Enhanced Remote Controller included with the Matrice 400 offers a professional flying experience with a 10.1-inch ( 1920×1200, 1000 cd/m²) high-brightness display that is perfectly readable in direct sunlight.

Characteristic	Specification
Screen	10.1 inches, 1920×1200, 1000 cd/m²
System	Android 11 for third-party apps
Autonomy	Up to 6 hours for extended missions
Interfaces	HDMI 1.4, SD 3.0, USB-C, USB-A
Size	268 × 163 × 94.5 mm
Weight	1.15 kg (without external battery)

RTK stations and precise positioning

For applications requiring centimeter positioning, the Matrice 400 is compatible with DJI RTK stations:

• D-RTK 3 Multifunctional Station: Next-generation RTK solution
• D-RTK 2 Mobile Station : Portable Precise Positioning

Development Kits & Integration

The Matrice 400 development ecosystem includes:

• DJI E-Port Development Kit V2: Third-Party Device Interface
• DJI E-Port V2 Coaxial Cable Kit : Extended Connectivity
• DJI SKYPORT V3 Adapter Set : Legacy Compatibility
• DJI SKYPORT V3 Coaxial Cable Kit : Connectivity Solutions

Competitive Advantages and Comparison

Comparison with the DJI Matrice 350

Time

Concurrent

speed

Obstacle

Characteristic	Matrice 400	Matrice 350
Flight	59 minutes	40 minutes
Payload	6 kg	2.7 kg
Payloads	7	3
Maximum	25 m/s	23 m/s
Avoidance	LiDAR + mmWave + Vision	Vision only
Transmission	20 km W4 Enterprise	15 km OcuSync 3
Protection	IP55	IP45
Frequencies	2.4/5.8 GHz + sub-2G	2.4/5.8 GHz

Competitive Positioning

The DJI Matrice 400 is positioned as the gold standard in the heavy professional drone segment, outperforming the competition in several critical aspects:

Unique Benefits:

• Class-leading runtime of 59 minutes
• Most advanced obstacle avoidance system on the market
• Exceptional payload capacity with multi-payload support
• Industry’s most comprehensive integrated ecosystem
• Proven reliability of the DJI Enterprise brand

Frequently Asked Questions

What is the battery life of the DJI Matrice 400?

The DJI Matrice 400 offers up to 59 minutes of flight time, a 50% improvement over the M350. This exceptional range allows for wider areas to be covered and more complex missions to be carried out without interruption.

What payload can the Matrice 400 carry?

The Matrice 400 can carry up to 6 kg of payload and simultaneously support up to 7 different payloads. This capacity is more than double that of the M350 and allows for the integration of multiple specialized equipment.

Does the Matrice 400 have an obstacle avoidance system?

Yes, it incorporates an advanced system with rotating LiDAR, high-precision mmWave radar, and color fisheye vision sensors to detect even high-voltage power lines, even in complete darkness.

What is the transmission range of the Matrice 400?

The O4 Enterprise system offers a maximum range of 40 km (FCC) and 20 km (CE/SRRC/MIC) with support for 2.4 GHz, 5.8 GHz and sub-2G frequencies, plus a built-in dual 4G dongle.

Is Matrice 400 weatherproof?

Yes, the Matrice 400 has IP55 protection which makes it resistant to dust and splashing water, allowing operations in harsh weather conditions.

Which cameras are compatible with the Matrice 400?

The Matrice 400 is compatible with Zenmuse H30, H30T, L2 and P1 cameras, as well as Zenmuse S1 (projector), V1 (speaker) and Manifold 3 (on-board computer) accessories.

General configuration included

The DJI Matrice 400’s General configuration includes:

• DJI Matrice 400 Drone
• DJI RC Plus 2 Enterprise Enhanced Remote Controller
• Spare propellers and maintenance tools
• Professional carrying case
• Documentation and Quick Start Guides
• DJI Pilot 2 and DJI FlightHub 2 Software

Customization Options

Payload configurations available very soon:

• Inspection Pack with Zenmuse H30T
• Zenmuse L2 Mapping Pack
• Security Package with S1 Projector and V1 Speaker
• Photogrammetry Pack with Zenmuse P1

Optional accessories:

• Additional batteries for extended missions
• Multiple charging station
• RTK systems for precise positioning
• Transport and storage equipment

Why Choose the DJI Matrice 400

The DJI Matrice 400 represents the culmination of DJI’s innovation in professional drones. This revolutionary platform combines exceptional performance, advanced security and unmatched versatility to meet the most stringent requirements of professionals.

Investment justified by:

• Improved ROI due to extended battery life and increased productivity
• Maximum safety with the most advanced obstacle avoidance system
• Operational flexibility with support for 7 simultaneous payloads
• Scalability with the DJI Enterprise Ecosystem
• Proven reliability for mission-critical applications

The DJI Matrice 400 isn’t just a drone, it’s an innovation platform that will transform your flight operations and give you the competitive edge to excel in your field.

Complementary products

Complete your DJI Matrice 400 setup with these essential accessories:

• BS100 Intelligent Battery Station (General) – Smart Charging Station for Optimized Battery Management
• TB100 Intelligent Flight Battery – Intelligent Flight Battery for Maximum Battery Life
• TB100C Tethered Battery – Wired Battery for Long Duration Missions
• DJI E-Port V2 Development Kit – Third-Party Equipment Development Kit
• M400 2510F Propeller – High Performance Replacement Propellers
• DJI RC Plus 2 sub2G SDR Module – SDR Module for Long Range Transmission
• Matrice 400 Third Gimbal Connector
• Matrice 400 Dual Gimbal Connector – Connector for double gimbal

---

Protect your investment

Your DJI Matrice 400 is a working tool. Drone Parts Center, Authorized DJI Enterprise Dealer for the Benelux, offers the official DJI services and safety equipment suited to your platform:

Your drone ships with 1 year of DJI Care Enterprise Plus. Remember to extend this protection before it ends: renewal must take place before expiry or within the following 15 days.

• DJI Care Enterprise Plus renewal (DJI Matrice 400): extend the coverage included with your drone. Free repair or replacement within the coverage limit, no deductible, round-trip shipping covered by DJI. Renewable up to 3 consecutive years in total.
• DJI Maintenance Standard (DJI Matrice 400): detailed 8-point inspection, deep cleaning, full update and calibration, replacement of commonly worn parts (shell, propellers, landing gear, antenna, screws), official DJI maintenance report. The Basic and Premium plans are detailed in the comparison table.
• DJI AP100 Parachute (DJI Matrice 400): DJI Enterprise’s first safety parachute for the Matrice 400, automatic deployment in under 600 ms, stabilized descent below 5 m/s. Pre-orders open, delivery expected September 2026.
