DJI E-Port V2 Development Kit – DJI Matrice 400 Advanced Integrations Development Kit

Limitless innovation for developers: standard interfaces, advanced SDKs, and custom integrations for your most ambitious projects

Unlock Development Potential with the DJI E-Port V2 Development Kit

The DJI E-Port V2 Development Kit represents the key to entry into the world of advanced development for the DJI Matrice 400. Designed for developers, integrators, and technology companies, this revolutionary kit transforms proprietary E-Port V2 ports into universal standard interfaces, opening up endless possibilities for integrating third-party devices, developing custom applications, and creating innovative solutions tailored to the specific needs of each industry.

This professional development solution eliminates traditional technical barriers by providing standardized interfaces (XT30, USB 2.0, UART/PPS) that greatly facilitate the integration of specialized sensors, embedded computers, communication systems, and measurement equipment. The kit includes comprehensive technical documentation and advanced development tools that speed up the creation process and significantly reduce time to market for innovations.

Next-generation development architecture

At the heart of the DJI E-Port V2 Development Kit is an intelligent conversion architecture that transforms the Matrice 400’s four E-Port V2 ports into multiple standard interfaces. This revolutionary approach allows developers to connect their devices directly without the need to develop complex proprietary interfaces. The 120W power per port ensures sufficient power for the most demanding equipment, eliminating the energy constraints that often limit integration projects.

The kit’s intelligent management system automatically monitors and optimizes power distribution between different ports, ensuring stable and reliable power for all connected equipment. This embedded intelligence also protects against overloads, short circuits, and voltage variations, preserving the integrity of expensive equipment and ensuring the reliability of developed systems.

Standard interfaces and universal compatibility

The conversion to standard interfaces is the major innovation of the E-Port V2 kit. XT30 ports provide standardized, high-power power that is compatible with the majority of industrial and scientific equipment. USB 2.0 ports allow direct connection of embedded computers, storage devices, and communication interfaces. UART/PPS interfaces facilitate the integration of precise navigation systems, specialized sensors, and time synchronization equipment.

This standardization of interfaces eliminates the technical barriers that traditionally complicate the integration of third-party equipment. Developers can now use their preferred components without the need for specialized adapter development, significantly speeding up development cycles and reducing prototyping costs.

Technical specifications and capabilities

Characteristics of development interfaces

Supported

Interfaces

speed

Protocols

Characteristic	Specification
Model	DJI E-Port V2 Development Kit
Compatibility	DJI Matrice 400 exclusively
E-Port V2 ports	4 ports (E1, E2, E3, E4)
Power per port	120W maximum
Output	XT30, USB 2.0, UART/PPS
Output voltage XT30	12V, 24V, 48V (configurable)
USB 2.0	480 Mbps
UART	RS232, RS485, TTL

SDK Development Capabilities

The SDK includes a comprehensive SDK that provides developers with direct access to the advanced features of the Matrice 400. This programming interface allows for fine-grained control of flight systems, access to real-time sensor data, manage payloads, and create complex automations. The SDK supports major programming languages (C++, Python, JavaScript) and provides libraries optimized for real-time applications.

Built-in debugging tools make the development process much easier by providing complete visibility into system health, data flows, and real-time performance. These tools help you quickly identify problems, optimize performance, and validate application behavior under different operational conditions.

Development applications and use cases

Scientific Research and Instrumentation

For scientific research applications, the DJI E-Port V2 Development Kit opens up new possibilities for integrating specialized instrumentation. Researchers can directly connect spectrometers, gas analyzers, advanced weather sensors, and precision measurement equipment. The 120W of power per port provides power to demanding instruments that previously required complex external power systems.

UART/PPS interfaces facilitate the integration of precise time synchronization systems, which are essential for coordinated scientific measurements. Researchers can synchronize their instruments with the drone’s navigation systems, creating high-precision georeferenced datasets for their analyses. This capability transforms the Matrice 400 into a true airborne research platform.

Advanced Environmental Monitoring

In the field of environmental monitoring, the kit enables the integration of multi-spectral sensors, air quality analyzers and automated sampling systems. Environmental consulting companies can develop tailor-made solutions that combine several types of sensors to create complete and automated monitoring systems.

The USB 2.0 interface allows the connection of embedded computers that can process data in real time, apply artificial intelligence algorithms for anomaly detection and automatically transmit alerts to control centers. This on-board processing capability reduces latency and improves the responsiveness of monitoring systems.

Industrial Applications & Inspection

For industrial applications, the kit facilitates the integration of specialized inspection equipment such as ultrasonic crack detectors, corrosion analyzers and thickness measurement systems. Inspection companies can develop automated solutions that combine autonomous flight and instrumented inspection, reducing risks for operators and improving measurement accuracy.

High-power XT30 ports provide power to rugged industrial equipment that requires stable and reliable power. This capability opens up new markets for aerial inspection in demanding sectors such as aerospace, nuclear and petrochemical.

Development and integration

Simplified development process

The DJI E-Port V2 Development Kit revolutionizes the development process by providing a unified development platform that eliminates the traditional complexities of drone integration. Developers benefit from an integrated development environment that includes simulators, test tools, and out-of-the-box function libraries.

Comprehensive technical documentation guides developers through every step of the process, from initial design to operational deployment. Code samples, interactive tutorials, and detailed case studies speed up learning and reduce the chance of development errors. This educational approach allows even developers who are new to drone technology to quickly create sophisticated applications.

Rapid prototyping and validation

The kit facilitates rapid prototyping by providing plug-and-play interfaces that allow concepts to be tested immediately without prior development of adapters. This capability significantly accelerates innovation cycles and allows companies to validate their ideas before investing in full development.

Built-in validation tools allow for testing the performance, reliability, and safety of developments under controlled conditions. These tools include flight simulators, test case generators, and performance analyzers that ensure the quality of the solutions developed before their operational deployment.

Development Ecosystem & Support

Developer Community and Resources

The DJI E-Port V2 Development Kit is backed by a rich development ecosystem that includes an active developer community, specialized forums, and ongoing training resources. This community shares code samples, technical solutions, and feedback that enrich the development experience for all users.

Training resources include technical webinars, hands-on labs, and specialized certifications that allow developers to quickly master the specifics of drone development. These courses cover the technical, regulatory and security aspects essential to creating reliable business solutions.

Specialized technical support

DJI technical support for the E-Port V2 kit includes specialized expertise in drone application development and complex system integration. Support engineers can provide in-depth technical assistance to solve the most complex development challenges and optimize the performance of the solutions created.

Regular updates to the SDK and developer tools bring new features, performance optimizations, and bug fixes. This continuous evolution ensures that developers always have the most advanced tools to create innovative solutions.

Economic benefits and return on investment

Reduced development costs

The investment in the DJI E-Port V2 Development Kit generates substantial savings by drastically reducing development costs and time. Eliminating the need to create complex proprietary interfaces can save you months of development and tens of thousands of dollars in engineering costs.

The standardization of interfaces makes it possible to reuse existing components and to benefit from the economies of scale of standard equipment. This approach reduces component costs, simplifies maintenance and improves the reliability of the solutions developed.

Accelerating time-to-market

The kit enables a significant acceleration of time-to-market by eliminating the development phases of complex interfaces. Companies can focus on their business value rather than the technical aspects of drone integration, reducing time to market and improving their competitive advantage.

This speed of development allows companies to seize market opportunities faster and respond more effectively to the evolving needs of their customers. Development agility is becoming a decisive competitive advantage in fast-paced technology markets.

Safety and certification

Security Standards and Compliance

The DJI E-Port V2 Development Kit meets the highest security standards for professional and industrial applications. All interfaces incorporate protections against overload, short circuit, and electromagnetic interference. These protections preserve the integrity of connected equipment and ensure the safety of operations.

The kit’s regulatory compliance makes it easy to obtain the necessary certifications for applications in regulated industries. Developers are DJI certified and can build on this solid foundation to earn their own industry certifications.

Risk Management and Reliability

Integrated risk management systems continuously monitor the status of interfaces and connected equipment. In the event of an anomaly being detected, the system can automatically isolate failed components to preserve flight integrity and safe operations.

Redundancy of critical systems ensures maximum reliability for applications where business continuity is critical. This fail-safe design approach ensures that individual equipment failures do not affect the overall safety of the system.

Frequently Asked Questions

What interfaces are available with the E-Port V2 kit?

The DJI E-Port V2 Development Kit converts E-Port V2 ports into standard interfaces: XT30 ports for high-power power (12V, 24V, 48V), USB 2.0 ports for data communication, and UART/PPS interfaces for serial protocols and time synchronization.

How much power is available for connected equipment?

Each E-Port V2 port can deliver up to 120W of power, for a total of 480W for all four ports. This power is enough to power most demanding industrial and scientific equipment.

Is the kit compatible with other DJI drones?

The DJI E-Port V2 Development Kit is specifically designed for the DJI Matrice 400 and its E-Port V2 ports. It is not compatible with other DJI drone models that use different interfaces.

Which programming languages are supported?

The included SDK supports the main programming languages: C++, Python and JavaScript. Optimized libraries and code samples are provided for each language, making it easy to develop robust applications.

Is training required to use the kit?

While the kit is designed to be accessible, technical training is recommended to maximize its potential. DJI offers specialized training covering the technical, safety, and regulatory aspects of drone application development.

How do I get technical support for development?

DJI Technical Support includes specialized development support, accessible through enterprise support channels. Extensive documentation, developer forums, and training resources are also available.

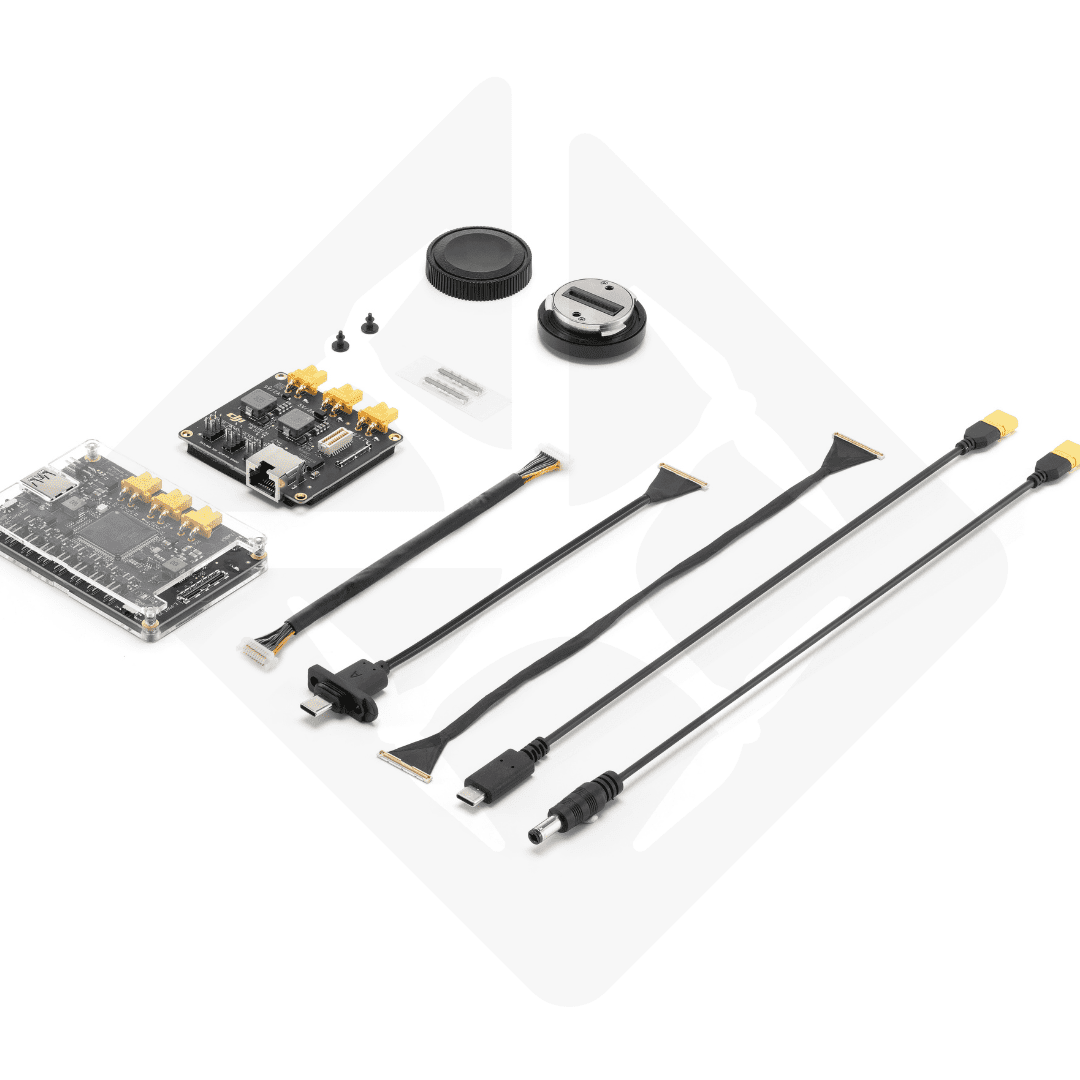

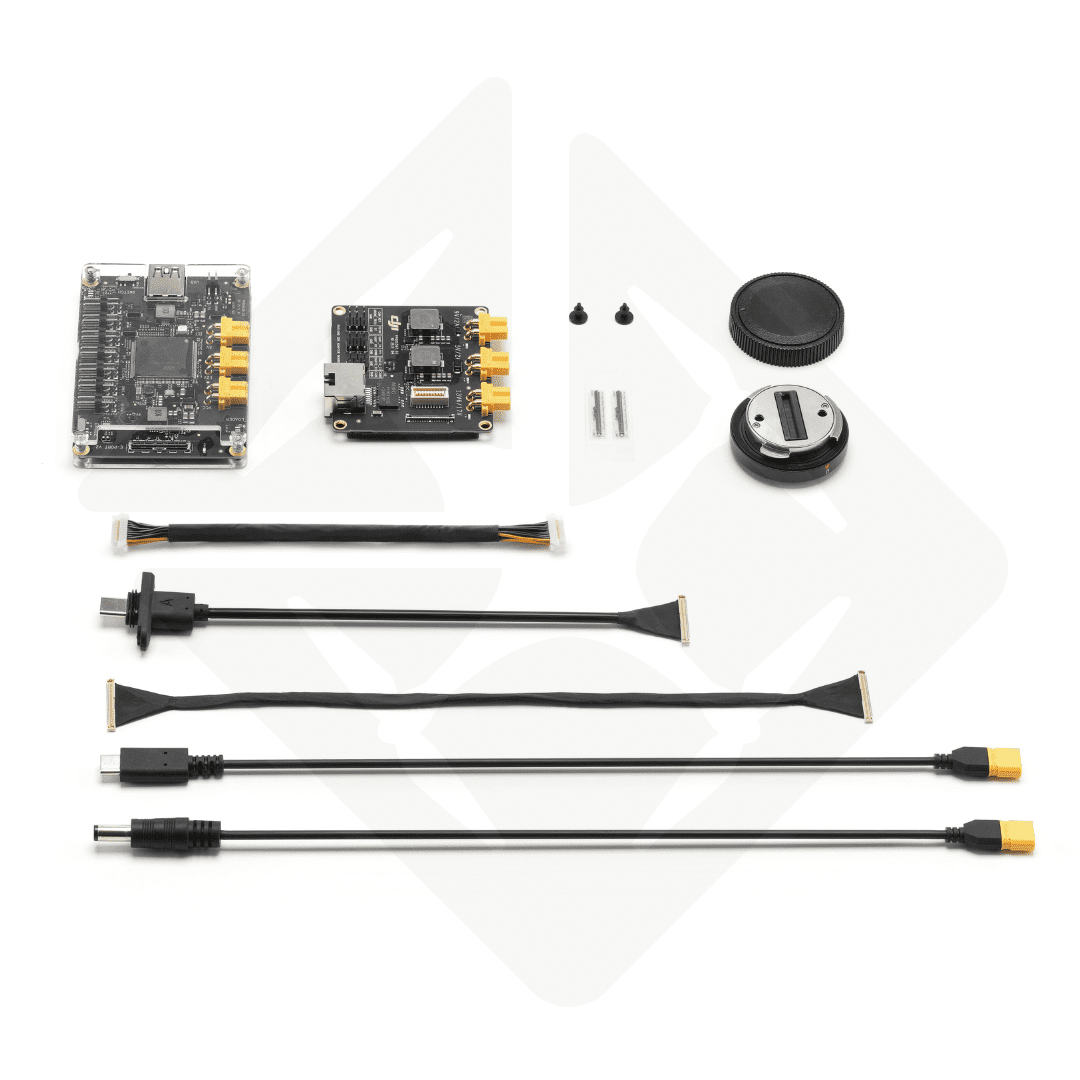

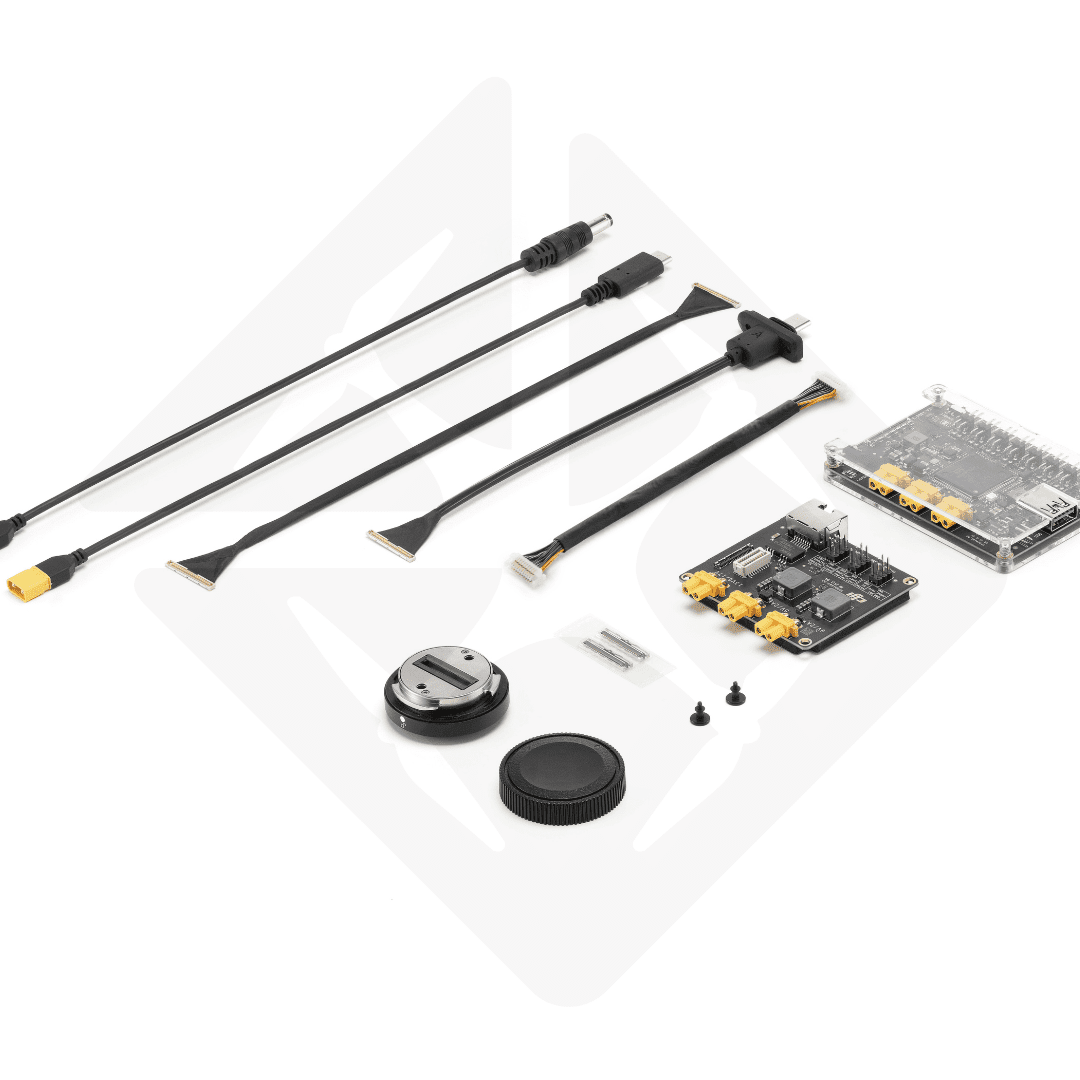

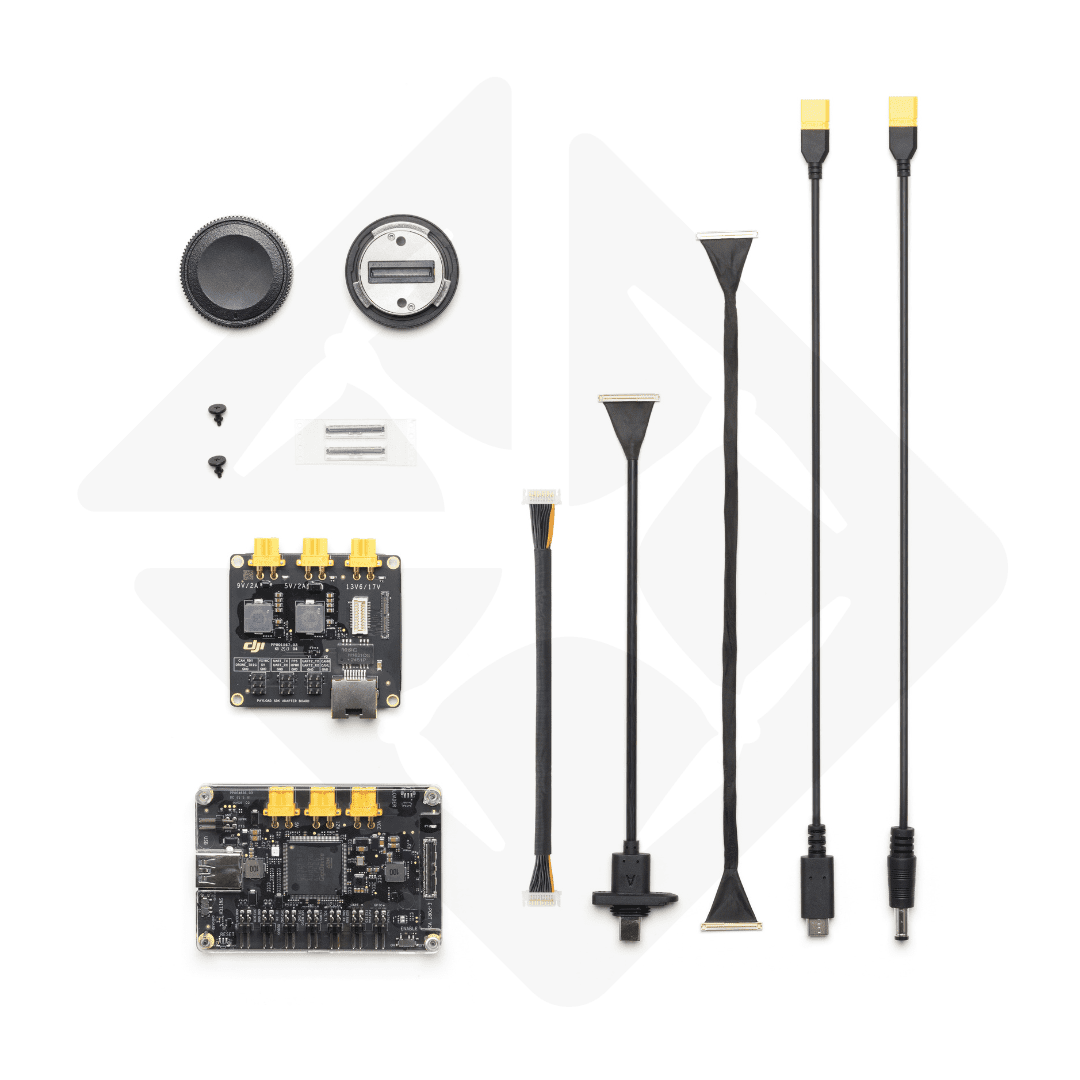

Development Kit Contents

The DJI E-Port V2 Development Kit includes:

• E-Port V2 to Standard Interface Conversion Adapters
• Cables and connectors for all interfaces
• Development boards and prototyping tools
• Comprehensive SDK with technical documentation
• Debugging and validation tools
• Code Samples and Tutorials
• Development licenses and technical support

Why Choose the DJI E-Port V2 Development Kit

The DJI E-Port V2 Development Kit represents the gateway to innovation in the field of professional drones. This revolutionary solution transforms integration constraints into creation opportunities thanks to its standardized interfaces, advanced SDK and comprehensive development ecosystem.

Strategic investment justified by:

• Universal standard interfaces for simplified integrations
• 120W power per port for demanding equipment
• Comprehensive SDK with advanced developer tools
• Drastic reduction in development costs and time
• DJI Enterprise Ecosystem and Specialized Technical Support

The DJI E-Port V2 Development Kit is not just a development kit, it’s an innovation platform that unleashes developers’ creativity and opens up new horizons for professional drone applications.
