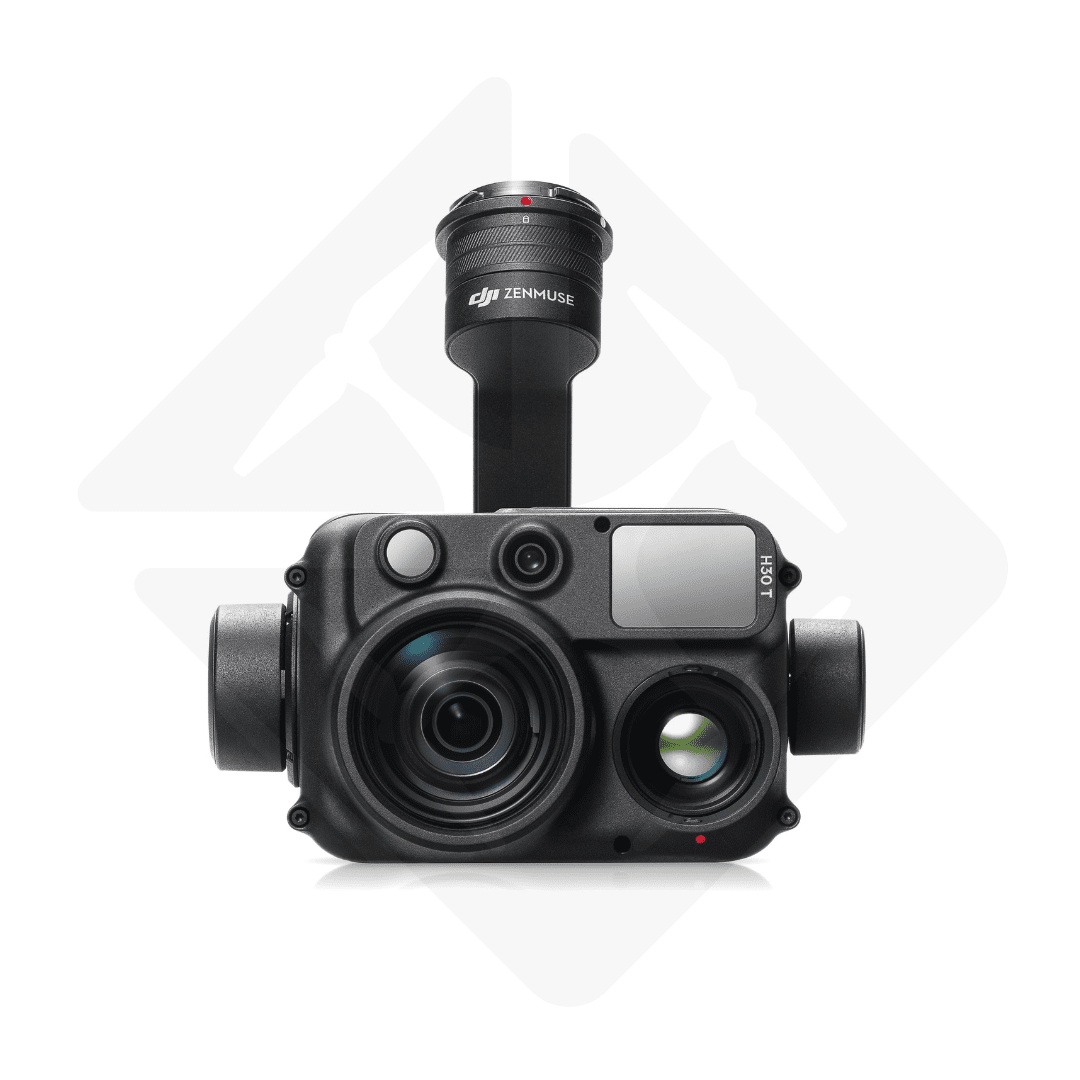

DJI Zenmuse H30T

DJI Zenmuse H30T thermal camera drone: ultimate aerial performance for mission-critical applications

A revolutionary payload for day and night vision

The DJI Zenmuse H30T thermal camera drone embodies the pinnacle of innovation in aerial imaging. This multi-sensor pod integrates five advanced modules: a 40 MP zoom camera, a wide-angle camera, a 3,000 m laser rangefinder, a high-resolution thermal camera and a near-infrared (PIR) light. It is designed to meet the requirements of critical sectors such as public safety, industrial inspection, fire-fighting and environmental protection.

Multisensor technology for precision operations

With a 34x optical zoom and 400x digital zoom, this DJI drone thermal camera guarantees detailed observation from a distance. Its 40 MP sensor captures sharp images, even in difficult conditions. The 48 MP wide-angle lens completes the package for maximum coverage.

Long-range laser rangefinder

With a range of up to 3,000 meters, the integrated laser rangefinder collects distance, altitude and GPS position data with impressive accuracy. This feature is ideal for technical surveys, topography or rapid intervention in unfamiliar terrain.

Intelligent night vision

The H30T camera features an intelligent night scene mode. It automatically switches to optimized night vision: grayscale image, PIR enhancement and infrared switching. This ensures enhanced visibility in total darkness.

Color and infrared night vision

In addition, the camera can display color night vision in minimal ambient light conditions. This dual option – black & white or color – is an asset for critical missions, where every visual detail counts.

Advanced thermography for precise diagnostics

The thermal camera features a resolution of 1,280 x 1,024, four times greater than the previous generation. It covers a temperature range from -20 to 1,600°C. Three levels of thermal gain are available, including a high-resolution mode for small temperature differences.

Synchronized thermal zoom

The “Link Zoom” function enables parallel zooming between the thermal camera and the visible camera. In this way, the operator maintains the same field of view and compares data simultaneously, reducing interpretation errors.

Intelligent capture and data security

DJI algorithms automatically adjust visual parameters according to scene lighting. The system also allows video pre-recording of up to 30 seconds to avoid any loss of critical events.

Safety features

• AES-256 encryption for data streams
• Code-secured microSD card
• One-click log deletion

Exceptional field ruggedness

Rated IP54, the Zenmuse H30T is dust- and splash-resistant. It operates faultlessly between -20°C and +50°C. This level of robustness makes it a reliable tool in extreme environments.

DJI compatibility and easy integration

It is fully compatible with the DJI Matrice 300 RTK and 350 RTK drones, as well as the DJI Matrice 400, and integrates with DJI FlightHub 2 for synchronized live feedback. It can be controlled via the DJI Pilot 2 app.

Available immediately as a kit: DJI Matrice 400 RTK + H30T Inspection Kit, in stock.

Real-life use cases: proven performance

In the Alps, the Zenmuse H30T was used by the Savoie fire department to find a victim buried under an avalanche. The thermal camera detected a heat source over 50 meters away, enabling the victim to be located quickly. In another mission, in Marseille, the municipal services used it to pinpoint areas of heat loss in public buildings.

EDF teams also use it to check the condition of high-voltage insulators from the ground, thanks to its combined optical and thermal zoom. This reduces intervention time and improves worker safety.

Zenmuse H30T vs H20T comparison

• Thermal resolution: H30T 1280 x 1024 vs H20T 640 x 512
• Optical zoom: H30T 34x vs H20T 23x
• Rangefinder range: H30T 3,000 m vs H20T 1,200 m
• Color night vision mode: H30T only
• High-resolution thermal gain: exclusive to the H30T

In short, the H30T offers far greater zoom, thermographic and processing capacity than the H20T. It is therefore recommended for critical environments where every visual detail counts.

Testimonials from the field: the experts speak

Capitaine Dumas – Pompiers du Var: “The Zenmuse H30T has transformed the way we operate in inaccessible areas. In less than two minutes, we had identified a heat source on a roof after a chimney fire.”

Inès Gauthier – Network Engineer: “It enables us to check the thermal condition of HVA cables without having to send out a gondola. Result: a 40% reduction in inspection time.”

Hugo, certified telepilot: “Image quality and optical stability enable long-distance missions without data loss. Impressive!”

Implementation tips and recommendations

To get the most out of this DJI drone thermal camera, here are a few tips:

• Use a DJI Matrice 300 RTK, 350 RTK or Matrice 400 drone for full compatibility
• Activate night scene mode manually in dimly lit urban environments
• Make sure the microSD card is secured with the DJI access code
• Keep your firmware up to date with DJI Assistant 2

Finally, train your operators in thermal analysis, as data quality also depends on its interpretation.

Focus on DJI’s on-board algorithms

Active stabilization automatically corrects vibrations. Zoom Link algorithm keeps both visible and thermal light streams synchronized. Intelligent Capture mode adapts to the scene to balance light and contrast. These software innovations maximize the H30T’s operational value.

FAQ – Frequently asked questions

• Is the H30T compatible with Matrice 200? No, only Matrice 300 RTK, 350 RTK and Matrice 400.
• Does the thermal function work when hovering? Yes, even at high altitude.
• Can I export live video? Yes, via FlightHub 2 or internal recording.

Conclusion

The DJI Zenmuse H30T thermal camera drone is the most complete and powerful rig on the market. It combines advanced thermal imaging, high-definition zoom, night vision and data protection. Whether you’re involved in public safety, energy inspection or environmental monitoring, the H30T is a major asset for your operational efficiency.

Discover the complete solution: Energy Inspection by Drone
