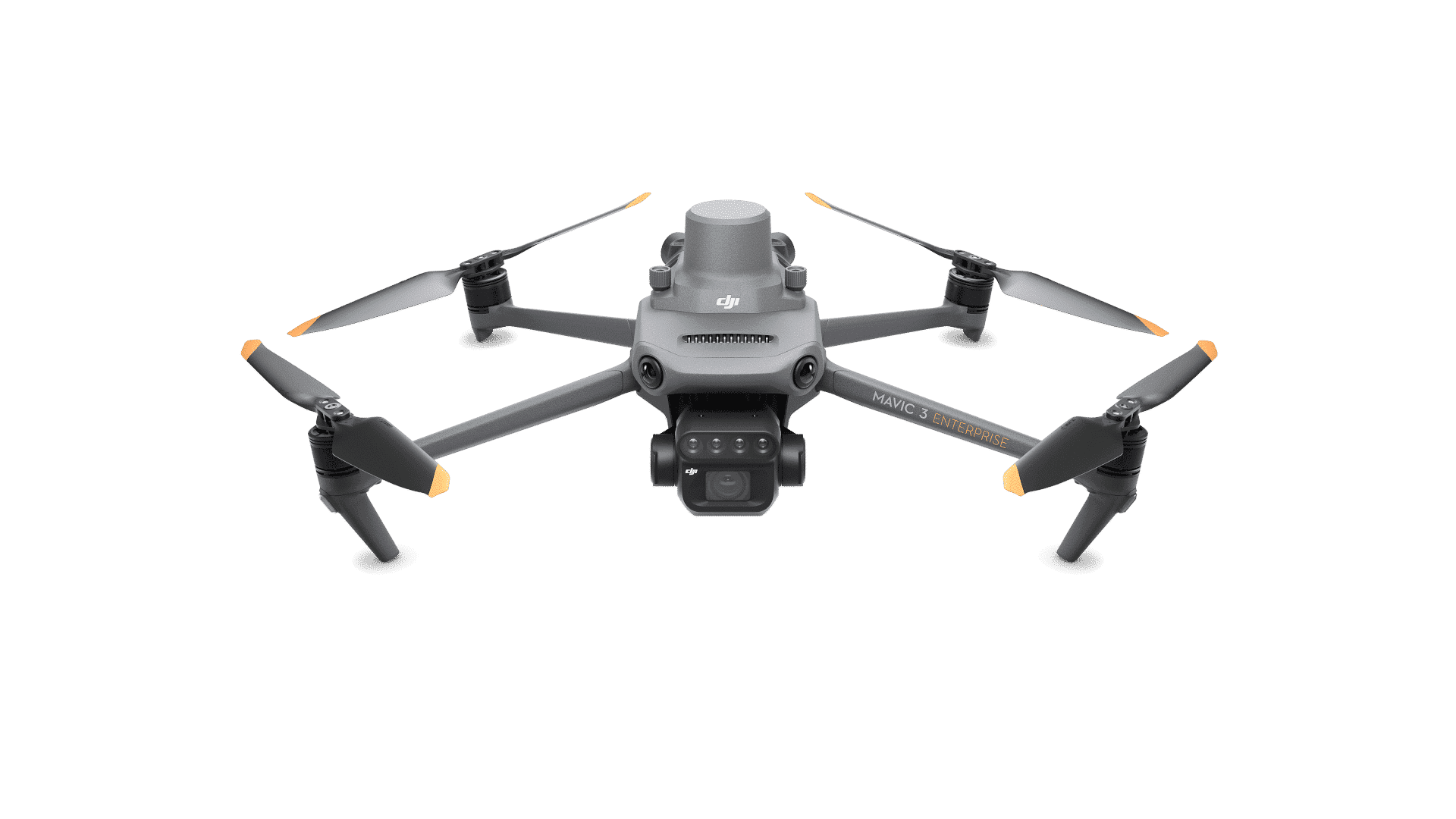

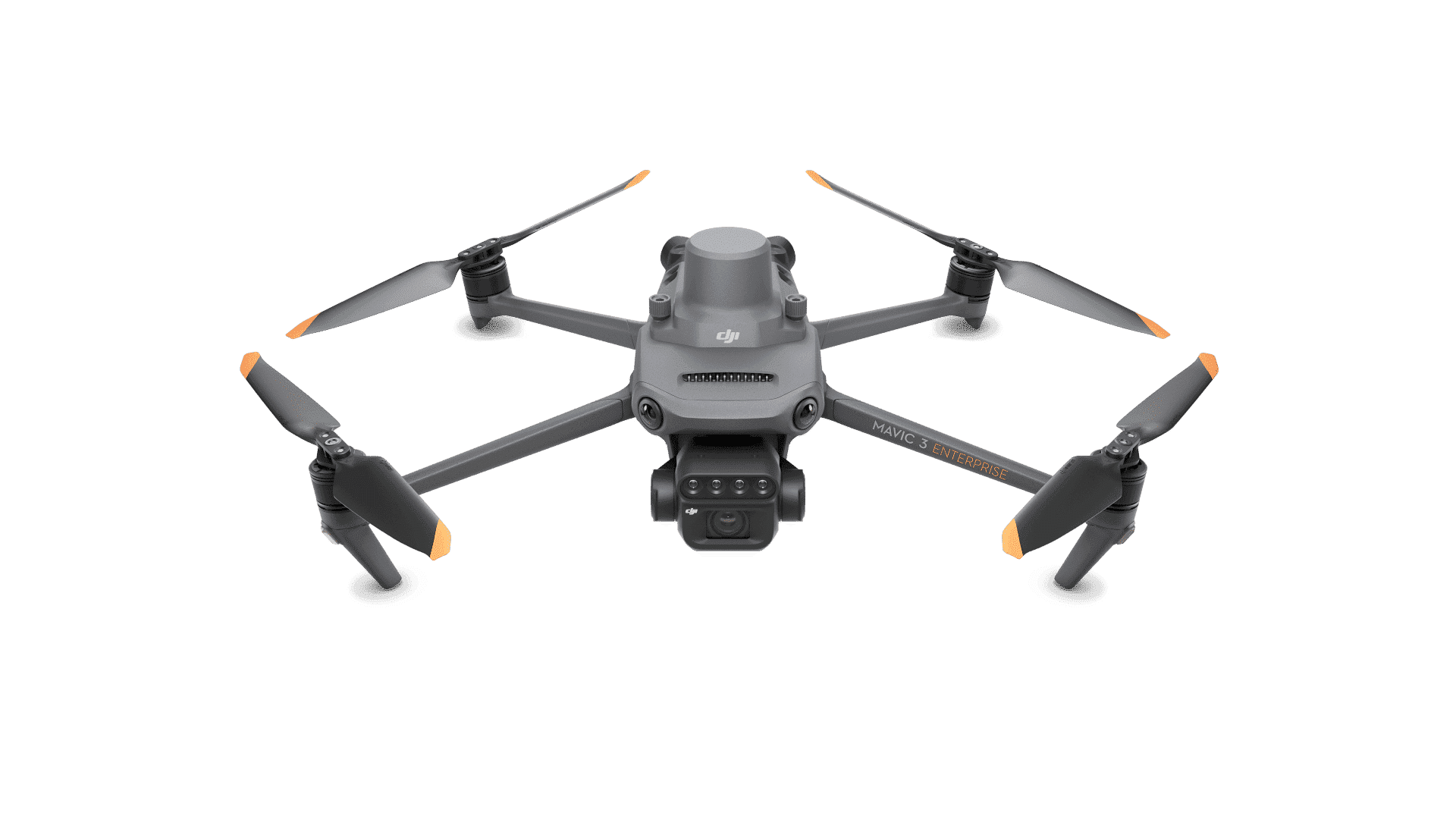

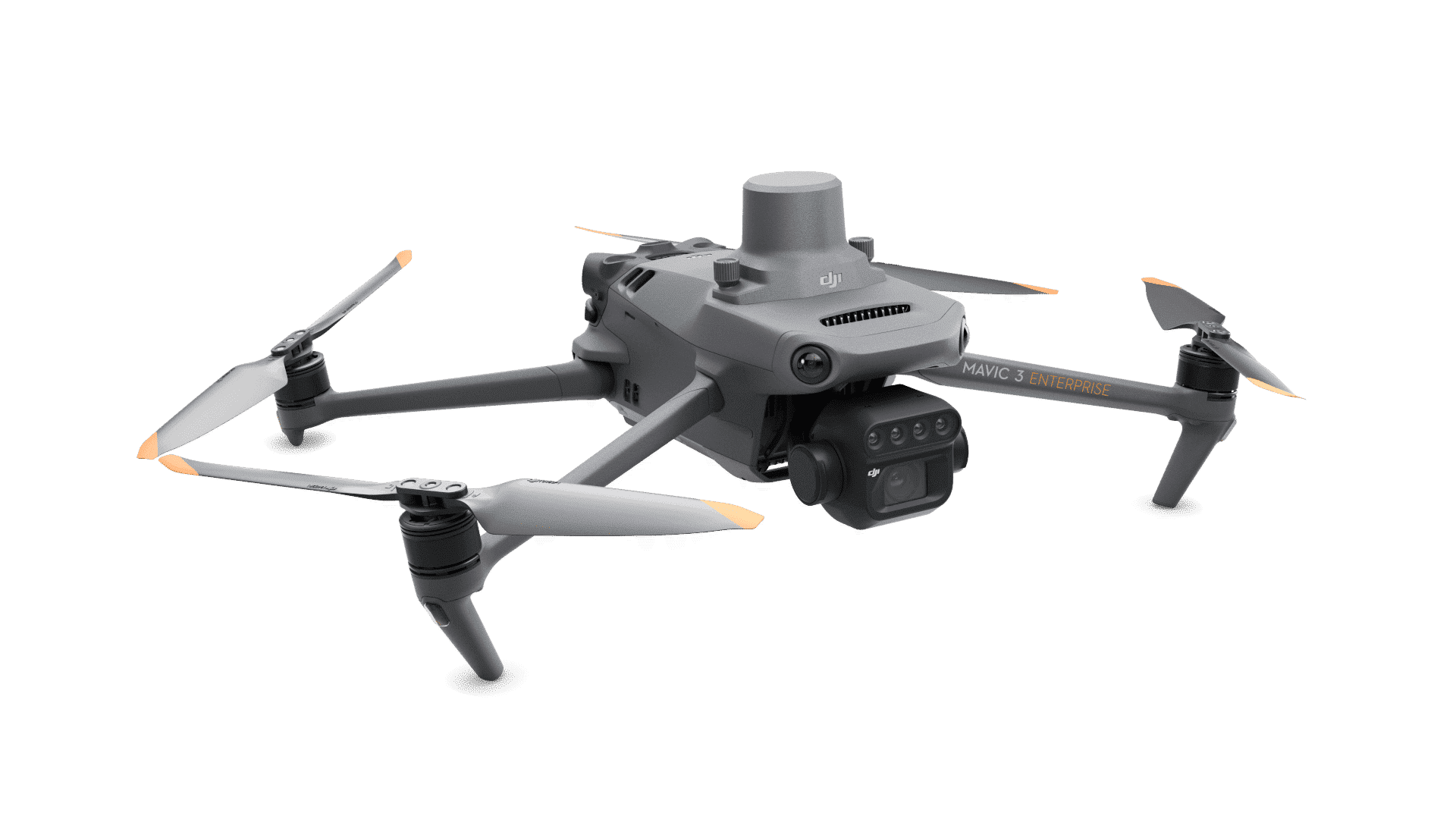

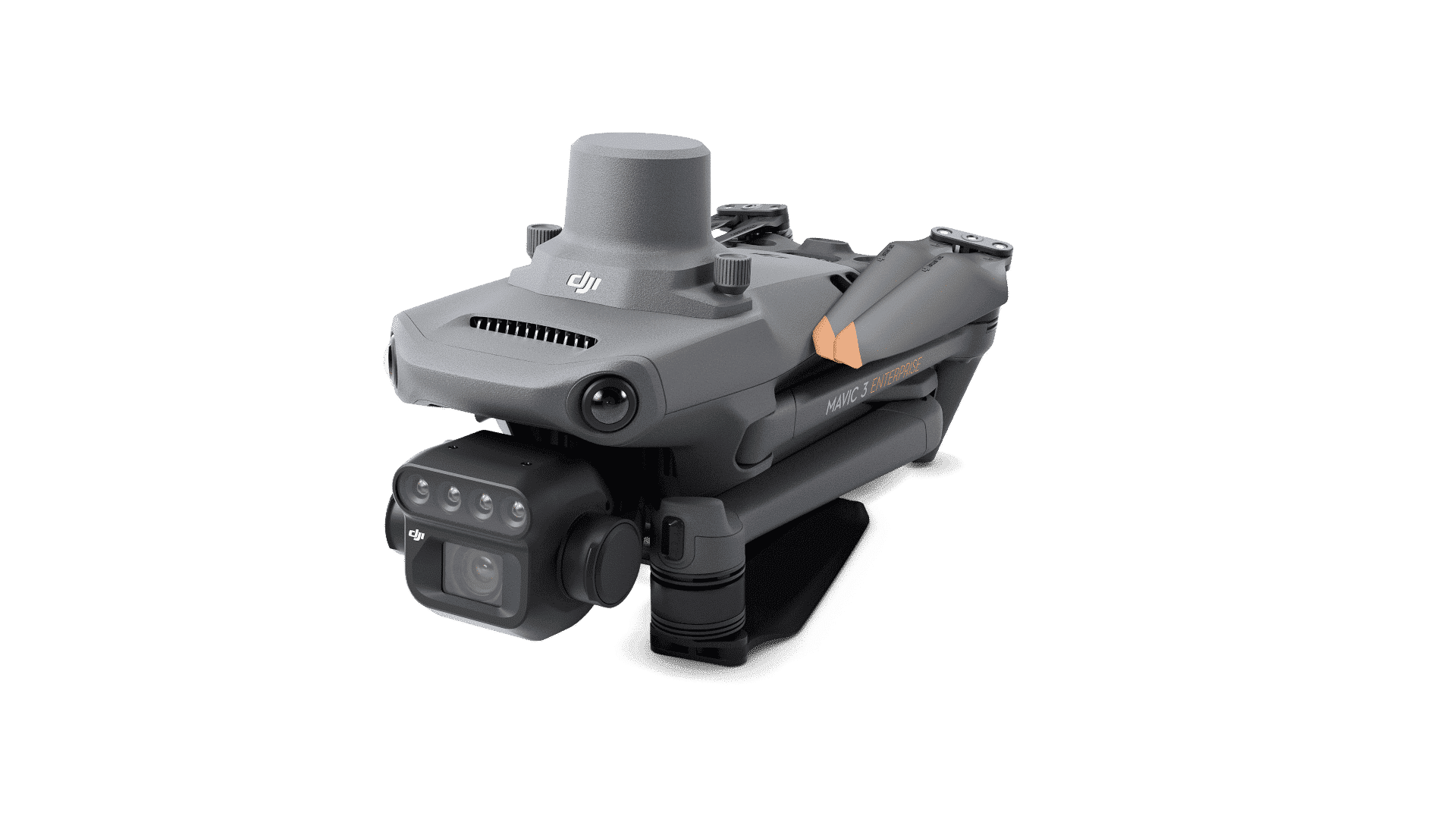

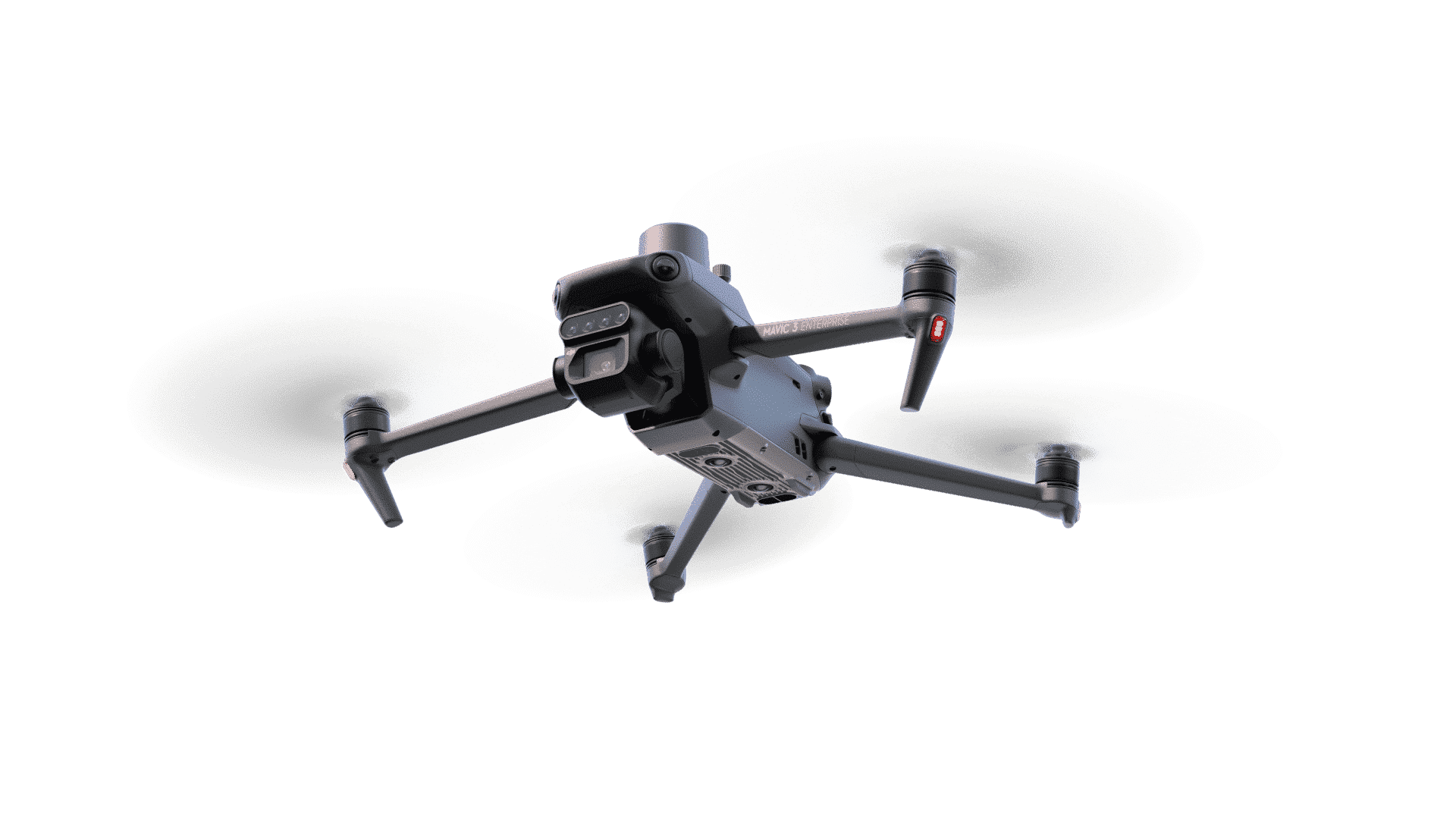

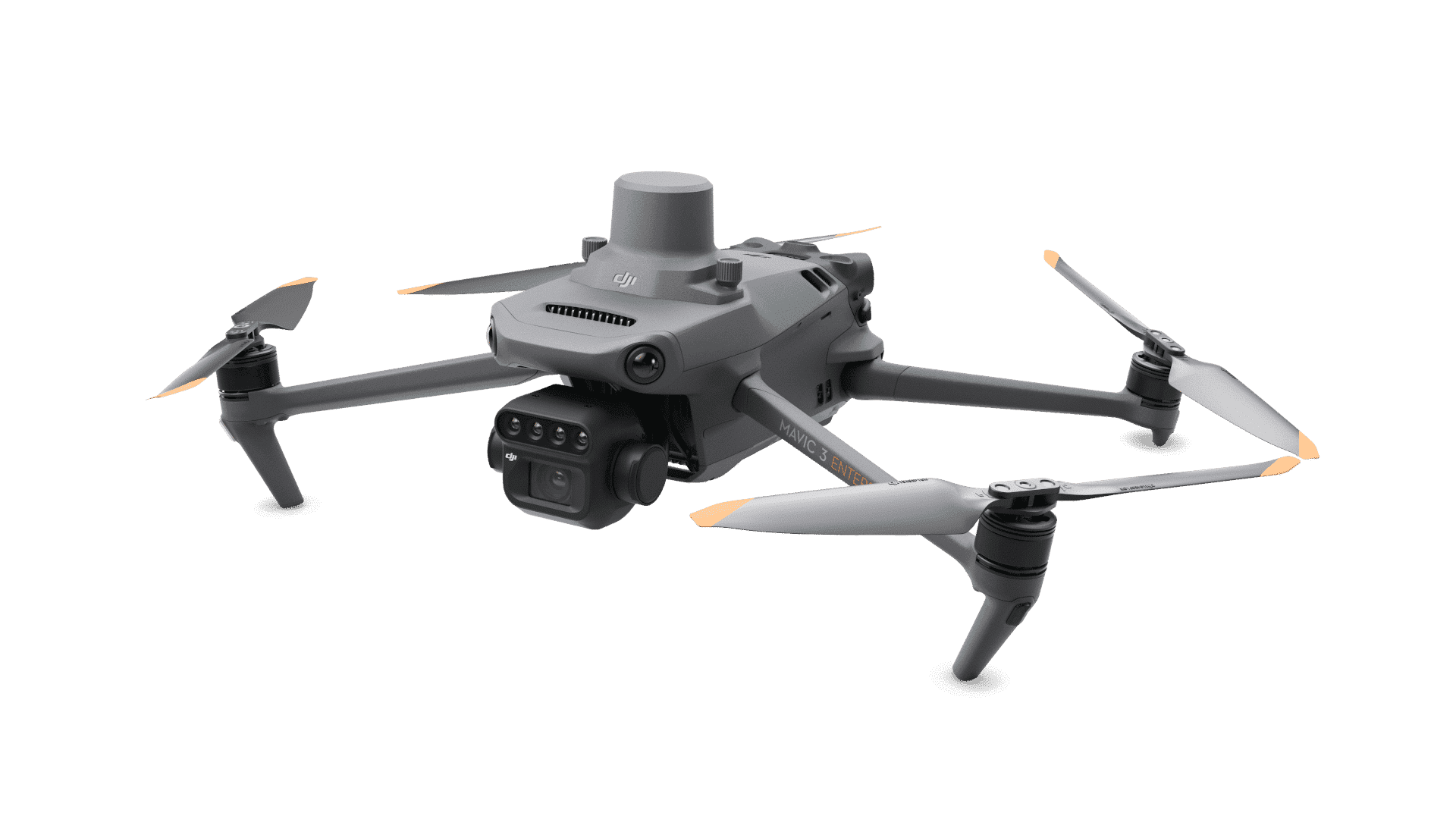

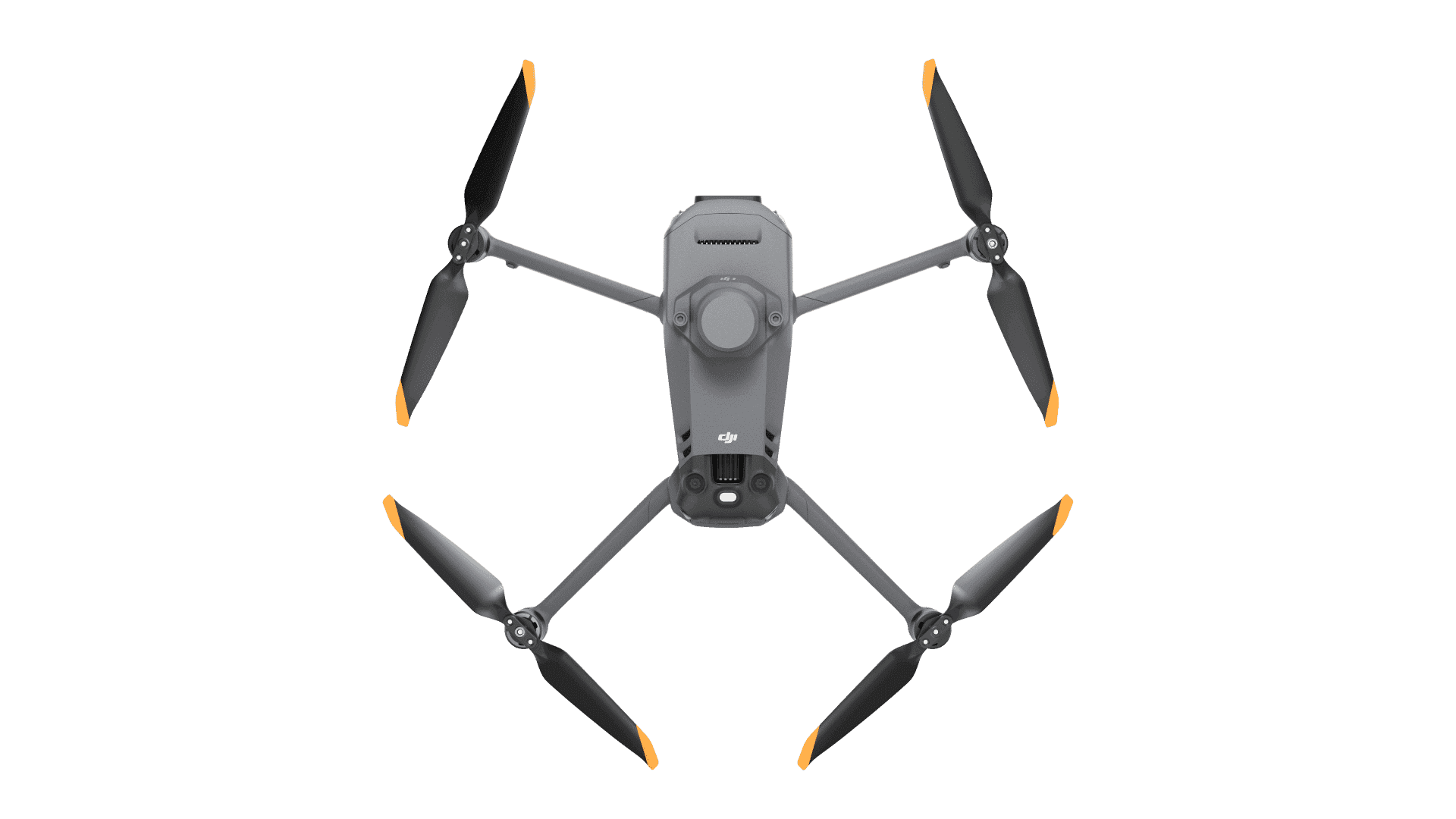

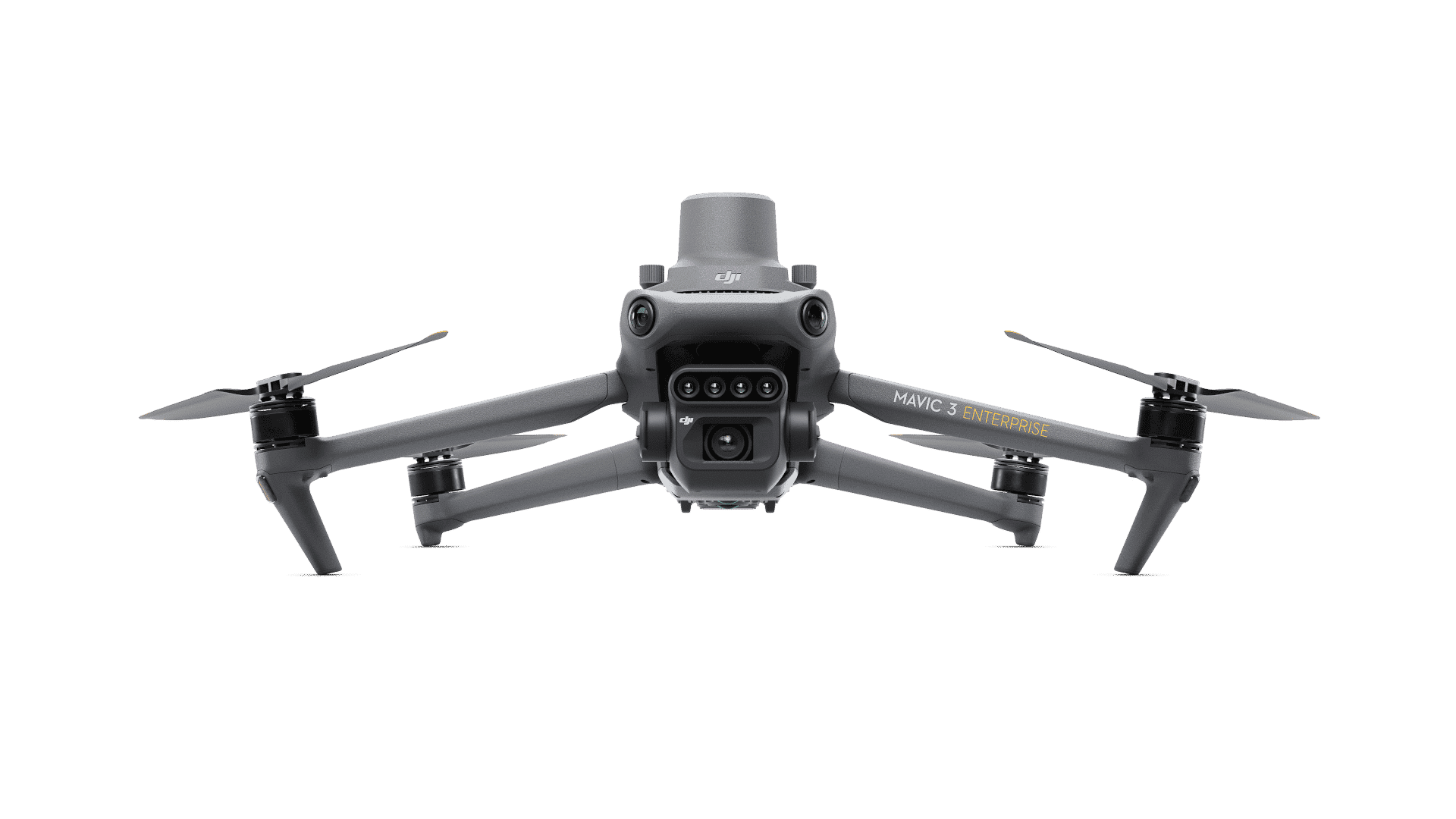

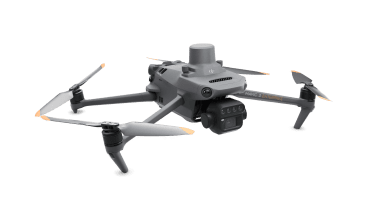

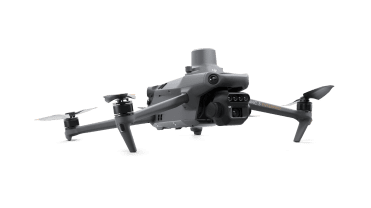

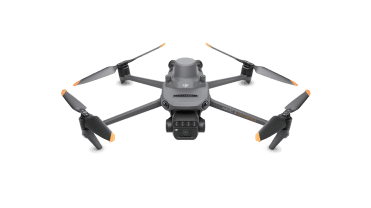

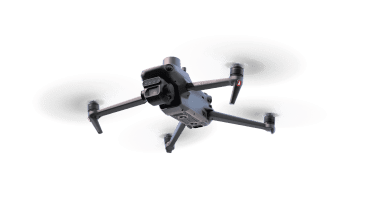

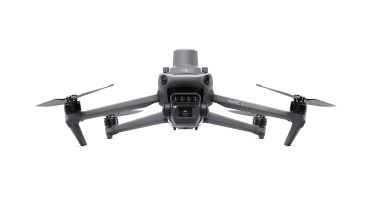

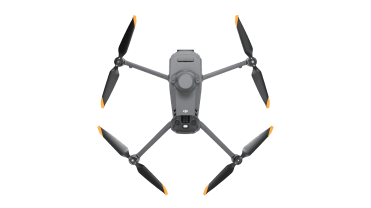

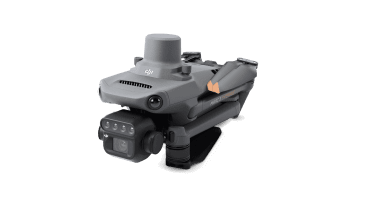

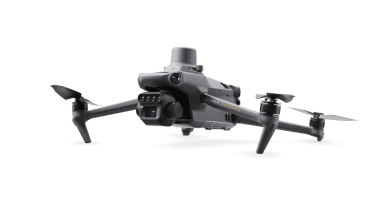

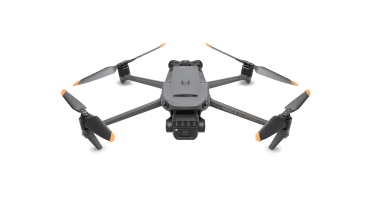

DJI Mavic 3 Multispectral (Universal Edition)

DJI Mavic 3 Multispectral (Universal Edition)

23634

RGB and Multispectral Imaging System

Mavic 3 Multispectral – also known as Mavic 3M – uses a two-in-one camera system to view and collect a wide range of information that users can turn into results in the field.

An RGB camera is equipped with a 4/3-inch, 20MP CMOS image sensor and a mechanical shutter with a maximum speed of 1/2000. It handles high-speed continuous shooting at the fastest interval of 0.7 seconds and can quickly collect image information, greatly improving the efficiency of field operations.

In addition to the RGB camera, a four-lens multispectral camera provides more precise directional information, helping users to better understand crop conditions by detecting details that the human eye cannot. Each of the four multispectral cameras can capture 5 million pixels and search for the following wavelengths:

• Green (G): 560nm ± 16nm
• Red (R): 650nm ± 20nm
• Red Edge (RE): 730nm ± 20nm
• Near-Infrared (NIR) 860nm ± 26nm

By combining these two cameras, Mavic 3M performs applications such as high-precision aerial surveys, crop growth monitoring, and natural resource surveys.

Centimeter-level RTK Positioning

Mavic 3M includes an RTK module that allows for centimeter-level positioning. The drone, its camera, and the RTK module are synchronized at the microsecond level to accurately obtain position information of each camera’s imaging center. This allows the Mavic 3M to perform high-precision aerial surveys without using ground control points. And with a battery life of up to 43 minutes, Mavic 3M can perform surveying and mapping operations of an area as large as 2 square kilometers in a single flight.

Designed for Safer Operation

Mavic 3M is equipped with O3 video transmission, which integrates two signal transmission channels and four signal reception channels, and supports an ultra-long transmission distance of 15 kilometers. For added safety, Mavic 3M is equipped with omnidirectional obstacle detection to detect obstacles in all directions and help avoid them accurately.

Unlimited Possibilities

Assisting professional users and partners in different fields, Mavic 3M can be integrated into various ecosystems to offer unlimited possibilities for smart agriculture. With the built-in DJI Cloud API, based on the MQTT protocol in Pilot 2, users can directly connect Mavic 3M to a third-party cloud platform to collect information, live videos, photo data, and other information, all without the need to develop a separate application. Mavic 3M also supports Mobile SDK 5 (MSDK5), allowing users to easily develop exclusive control applications for scenarios such as intelligent monitoring.

A New Tool for Precision Agriculture

Mavic 3M is useful in a multitude of work scenarios. It can perform aerial ground surveys on mountain forests and orchards. The DJI SmartFarm platform generates an NDVI vegetation index to provide data for more efficient and localized crop treatment. Automatic field spotting can detect crop anomalies and perform intelligent analyses that allow a single person to manage 70 hectares of land.

Contents

• 1 x DJI Mavic 3M Multispectral Drone
• 1 x DJI Care 1 year
• 1 x RTK Module
• 1 x Battery for DJI Mavic 3
• 1 x Gimbal protector
• 3 x Pair of propellers
• 1 x 64GB microSD card
• 1 x DJI RC Pro Enterprise
• 1 x USB Type-C to USB-C cable
• 1 x Screwdriver
• 1 x 100W charger
• 1 x Power adapter
• 1 x USB to USB-C cable
• 1 x Protective case
• 1 x DJI Terra 3 months
• 1 x DJI Smartfarm 6 months
