Dronavia – Kronos M30 for DJI Matrice 30 / 30T

Kronos M30: Professional Security System for DJI Matrice 30 and Matrice 30T

The Kronos M30 is the parachute recovery (PRS) and flight termination (FTS) system designed for the DJI Matrice 30 and the DJI Matrice 30T, two professional drones widely used for inspection, mapping and civil security. Developed by Dronavia, this conversion kit transforms your Matrice 30 / 30T into an EASA Class C5 compliant device.

Compact and lightweight (kit of 0.34 kg), the Kronos M30 integrates without compromising the flight performance of the Matrice 30/30T. In the event of an incident, the FTS shuts down the engines and the parachute deploys in 0.27 seconds, ensuring the safety of people and property on the ground.

Compliance with Class C5 and EASA regulations

The Kronos M30 conversion kit is certified according to European standards:

• MoC 2511 — Flight Termination System (FTS): Compliant internal circuit breaker
• MoC 2512-M2 — Parachute Recovery System (PRS): certified recovery system

This dual compliance transforms your DJI Matrice 30 / 30T into a Kronos AD Matrice 30 (Class C5) drone, compliant with EASA requirements for specific category operations (STS-01, STS-02, SORA/PDRA). Ideal for professional operators in Belgium, the Netherlands, Luxembourg and throughout the European Union.

Technical characteristics

• Deployment time: 0.27 seconds
• Kit weight: 0.34 kg
• Type of parachute: Compact, suitable for the weight of the Matrice 30/30T + payloads
• Detection and triggering: Autonomous, unlimited in energy
• Getting started: Automatic when the drone is powered on
• Safety lock: Automatic activation above 20 m altitude
• Landing detection: Integrated
• Internal FTS: Installation in an approved workshop
• Operating temperature: -5°C to 40°C
• Compatible POD: Kronos M30 (specific, with 4g CO2 cartridge)
• Reset: By exchanging Kronos M30 POD + 4g CO2 cartridge
• Manual activation: Klick remote control
• Compatible drone: DJI Matrice 30 and DJI Matrice 30T
• Compliance: MoC 2511 (FTS) + MoC 2512-M2 (PRS) — Class C5 EASA

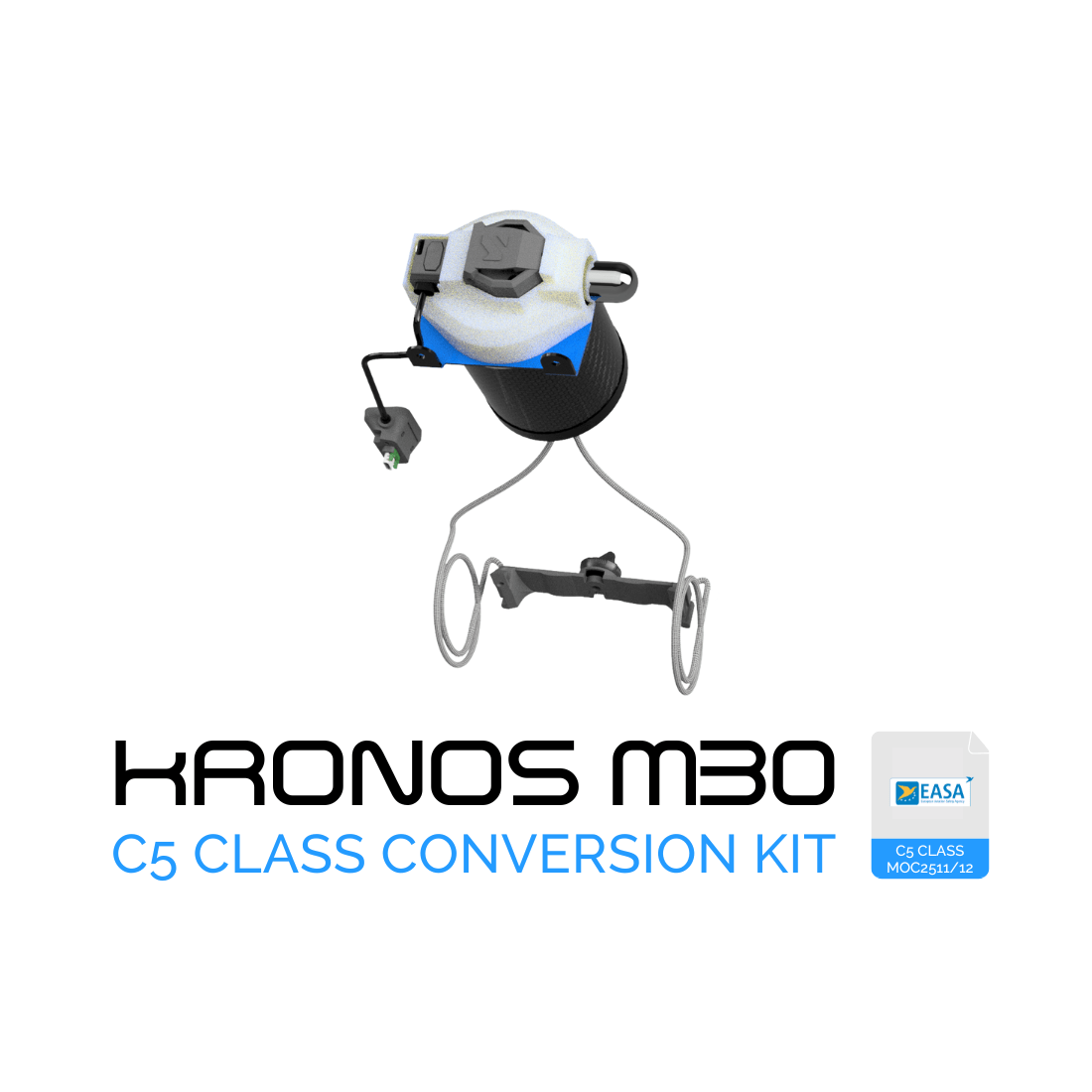

Kronos M30 Kit Contents

• Kronos M30 Parachute Recovery System (PRS)
• Kronos M30 Internal Flight Termination System (FTS)
• POD parachute Kronos M30 (pre-armed, with 4g CO2 cartridge)
• Klick remote control (manual activation)
• EASA compliance documents (MoC 2511 + MoC 2512-M2)
• Installation and user guide

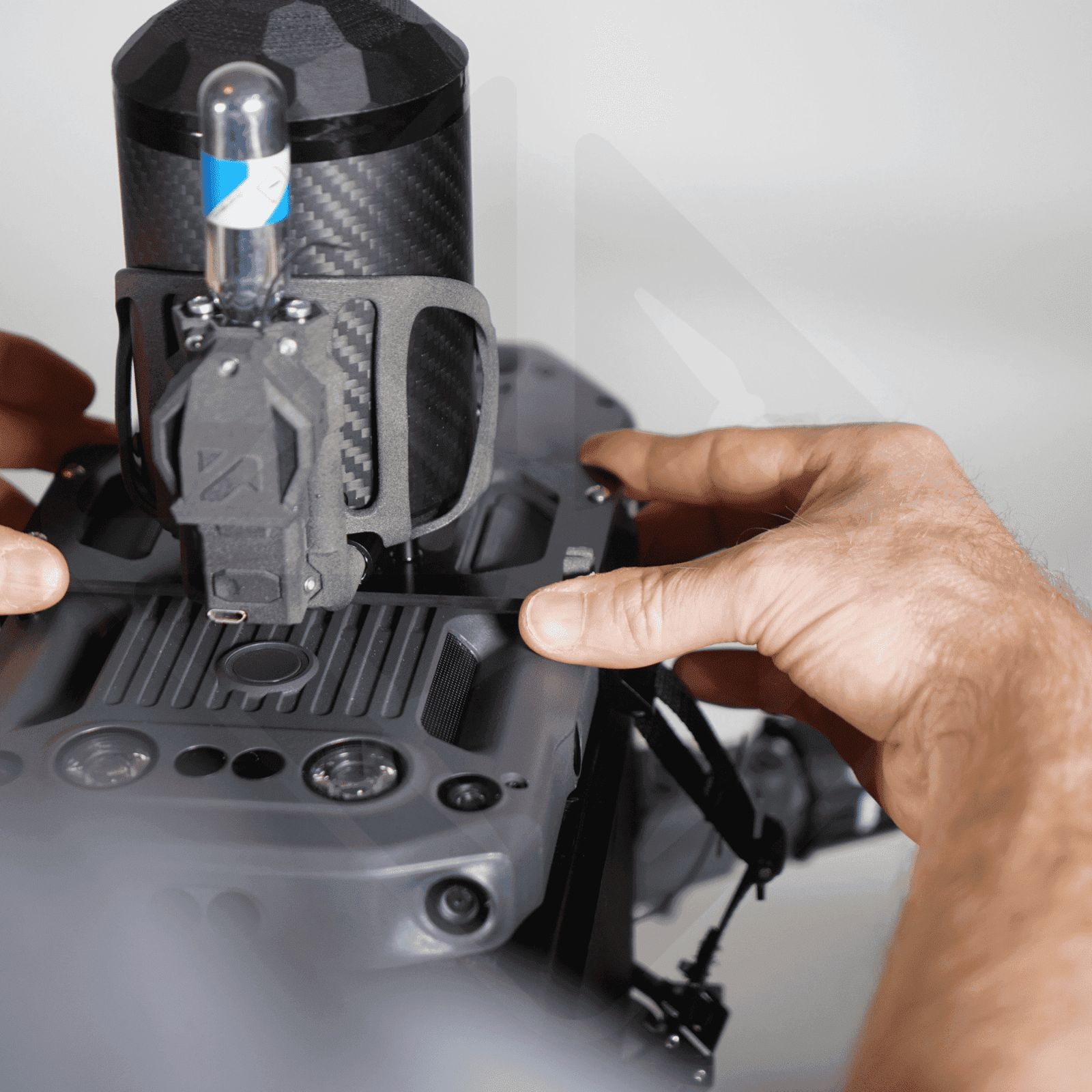

Installing the internal FTS

Installation of the internal circuit breaker system (FTS) in the DJI Matrice 30 or DJI Matrice 30T must be performed by a certified technician in an authorized workshop. Drone Parts Center has a workshop in Nivelles (Belgium) for this intervention. The drone can also be sent by parcel post (shipping costs on request or at your expense).

The DJI manufacturer’s warranty is preserved: if you need DJI after-sales service, simply disassemble the conversion kit before sending the drone for repair.

Maintenance and annual overhaul

The annual review is mandatory to maintain the conformity of the system and the validity of the certification. It includes:

• Full PRS and FTS verification
• Deployment testing
• Replacement of consumables (POD, 4g CO2 cartridge) if necessary
• Recertification for 12 months

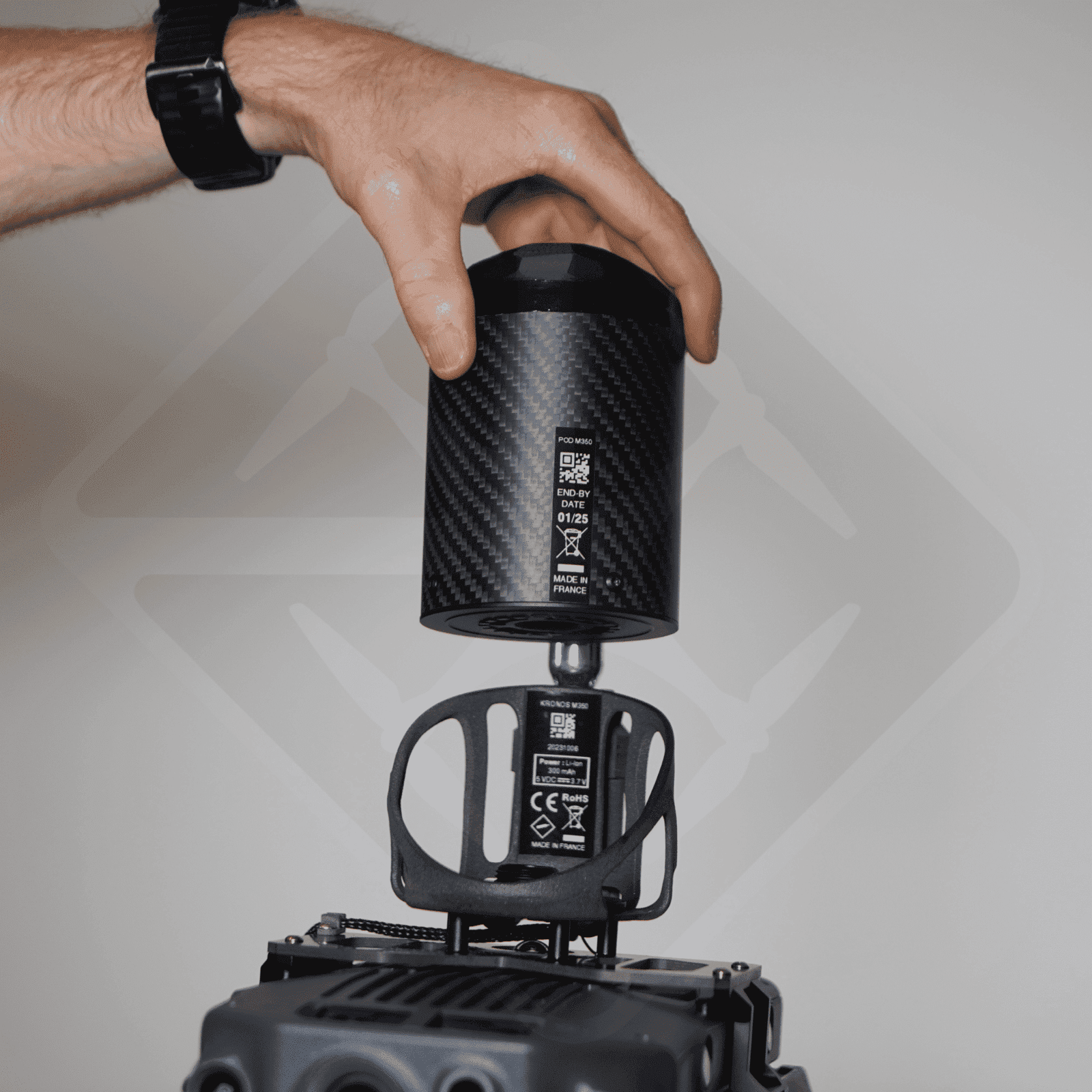

Rearming after deployment requires an exchange of the Kronos M30 POD and a 4g CO2 cartridge.

Frequently Asked Questions (FAQs)

Is the Kronos M30 compatible with both the Matrice 30 and the Matrice 30T?
Yes, the Kronos M30 kit is compatible with both DJI Matrice 30 and DJI Matrice 30T variants.

What is the difference between the Kronos M30 and the systems for the Mavic range?
The Kronos M30 uses a compact parachute sized for the Matrice 30/30T (0.34 kg kit). The POD is specific (Kronos M30, shared with the Kronos I3 for Inspire 3) and uses a 4g CO2 cartridge for deployment.

How does rearmament work after deployment?
The reset requires the exchange of the Kronos M30 POD and a 4g CO2 cartridge. Contact our workshop to arrange the exchange.

Can the annual inspection be carried out on site?
Yes, our workshop in Nivelles carries out annual revisions. You can also send us your drone by secure postal parcel.
