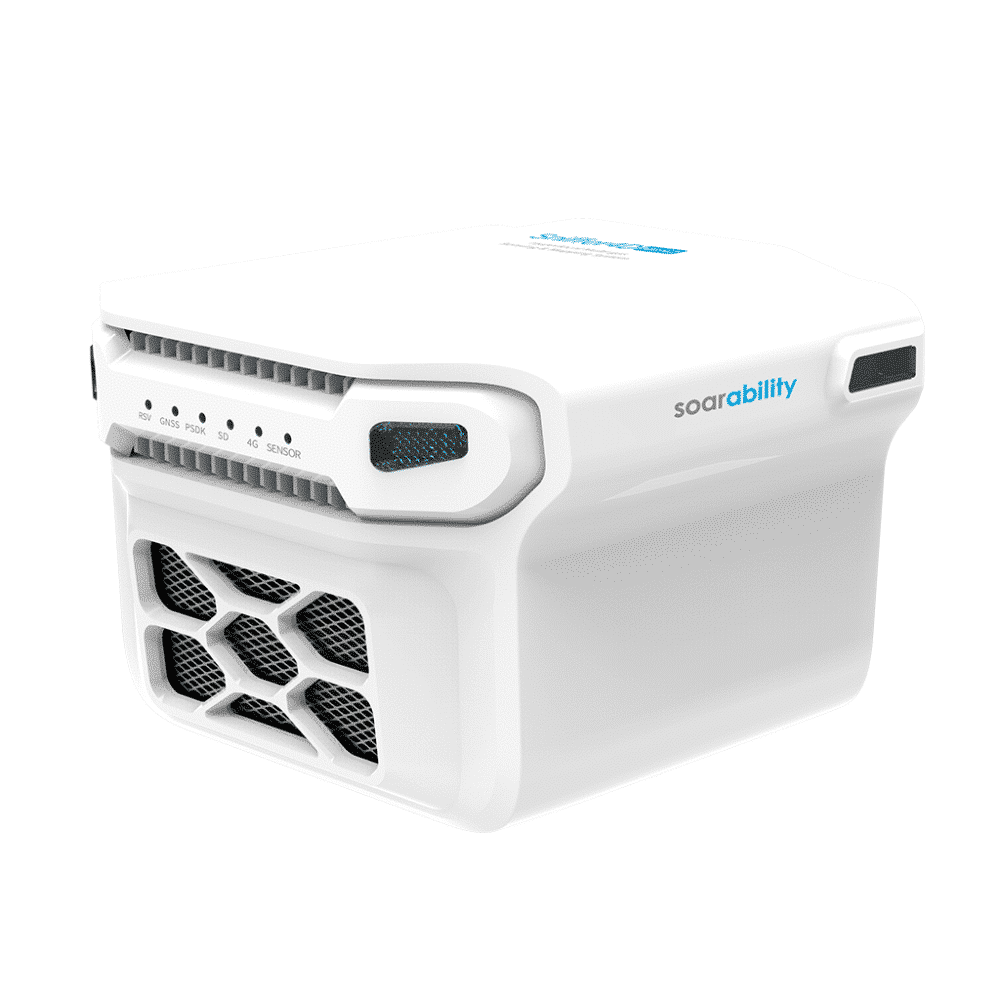

Sniffer4D Mini2

Presentation

The Sniffer4D Mini2 is AIRINS’ most comprehensive airborne multi-gas detection solution. With 8 internal sensor slots and 7 optional external modules, it covers the full range of environmental monitoring, HAZMAT and industrial sensing needs.

Each unit is fully configurable: choose from more than 22 gas sensors (PM, TSP, O₃+NO₂, NO₂, CO, SO₂, H₂S, NH₃, HCHO, Odour (OU), TVOC, etc.) depending on your application.

DJI drone compatibility

Editing

mounting

Mounting

Drone	Integration	Kit required	Autonomous missions
DJI Matrice 400	Direct via SkyPort	M400 kit (387 €)	Yes (via DJI Dock 1)
DJI M350 / M300 RTK	Payload	M350 kit (387 €)	Yes (via DJI Dock 1)
DJI M30	Compact	M30 kit (150 €)	No
DJI Mavic 3 Enterprise	Lightweight	Mavic 3 kit (225 €)	No

Optional plug-ins (Mini2 only)

In addition to the 8 internal sensors, the Mini2 accepts external modules mounted on the drone:

• Gas Sampling Module — Collection of samples for laboratory analysis
• Ultrasonic Wind Module — Real-time wind speed and direction
• O₃ UV spectrophotometry module — High-precision ozone
• CH₄ TDLAS Module (1 ppm) — High-resolution methane by laser
• CO₂ NDIR module (1 ppm) — high-resolution CO₂ for GHGs
• External GPS Module — Additional Satellite Positioning
• Temperature & Humidity Module — High-Precision External Sensor

Use cases

• HAZMAT / Emergency Response — Rapid identification of toxic gases prior to team engagement (CO, H₂S, SO₂, NH₃, TVOC)
• Urban and industrial air quality — Multi-pollutant screening (PM, NO₂, SO₂, CO, O₃) for emissions mapping
• Oil & Gas — Methane and VOC leak detection, site screening, environmental compliance
• Landfills & CET — Biogas Emissions Monitoring (CH₄, H₂S, SO₂), Regulatory Compliance

AIRINS.ai Software

Each Sniffer4D Mini2 includes access to the AIRINS.ai platform (hosted in Europe, GDPR compliant):

• 2D/3D visualization : point cloud, grid, heatmap interpolation of concentrations
• Structured reports : PDF or DOCX export with mission summary and spatial distribution
• GIS exports : Shapefile (.shp), GeoJSON, CSV for integration into your GIS systems
• Animations : animated replay of the results for briefings and discussions
• Real-time control via DJI Pilot App and DJI FlightHub 2

Technical specifications

Sensors

sensors

Drones

missions

Model	Sniffer4D Mini2
Internal	Up to 8 configurable modules
Plug-ins	7 optional modules (wind, TDLAS, sampling, etc.)
Available	22+ modules: PM, TSP, O₃+NO₂, NO₂, CO, SO₂, H₂S, NH₃, HCHO, Odour (OU), TVOC, etc.
Compatible	DJI M400, M350/M300 RTK, M30, Mavic 3 Enterprise
Autonomous	Yes (via DJI Dock 1 with M400/M350)
Software	Sniffer4D Mapper + AIRINS.ai (included)
Connectivity	4G/LTE (SIM card optional), GPS
Manufacturer	AIRINS (formerly Soarability)

Frequently asked questions

How many sensors can I install on the Mini2?

The Sniffer4D Mini2 accepts up to 8 internal modules simultaneously. Some sensors are mutually exclusive (e.g. PM and TSP cannot coexist). Use our configurator above to check the possible combinations.

What is the difference between the Mini2, Nano2 and Nano2+?

The Mini2 offers 8 internal slots + external modules and is compatible with DJI M400/M350/M300/M30 drones. The Nano2 (4 slots) is optimized for the DJI M3D/Dock 2. The Nano2+ (5 slots) is designed for the latest generation DJI M4D/4TD/Dock 3.

Can the Mini2 perform autonomous missions?

Yes, when mounted on a DJI M400 or M350 with the DJI Dock 1. Waypoint missions are programmed via DJI FlightHub 2, and data is transmitted in real-time via 4G to AIRINS.ai.

What is the external TDLAS CH₄ module?

It is a high-precision laser module that detects methane from 1 ppm. It mounts on the outside of the drone and only works with the Mini2 on the M400 or ground robot. Ideal for rapid screening of natural gas leaks.

Do I need a subscription for AIRINS.ai?

Basic access to AIRINS.ai (visualization, reports, exports) is included with every Sniffer4D. Advanced features (quantization, multi-user) may require an additional subscription.

Is DPC an authorized AIRINS reseller?

Yes, Drone Parts Center is an authorized AIRINS (formerly Soarability) dealer for Belgium. We provide sales, configuration and technical support.
