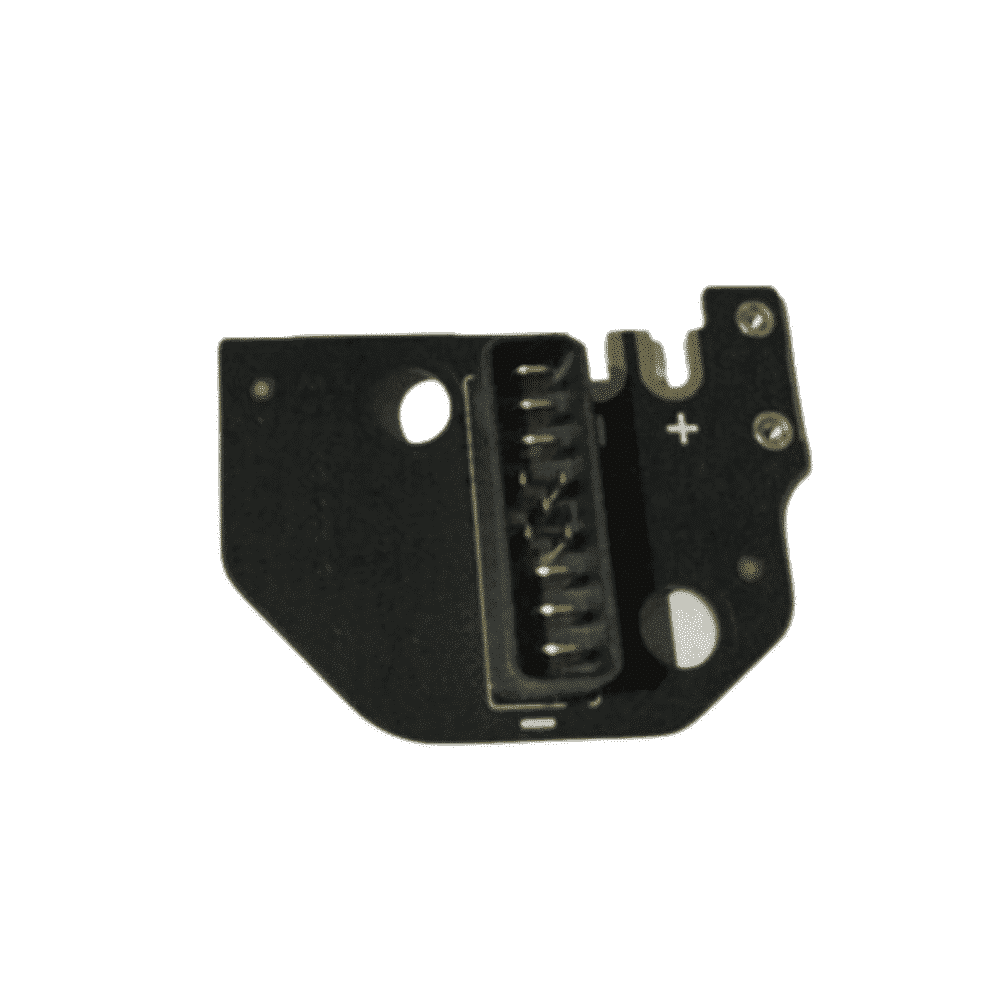

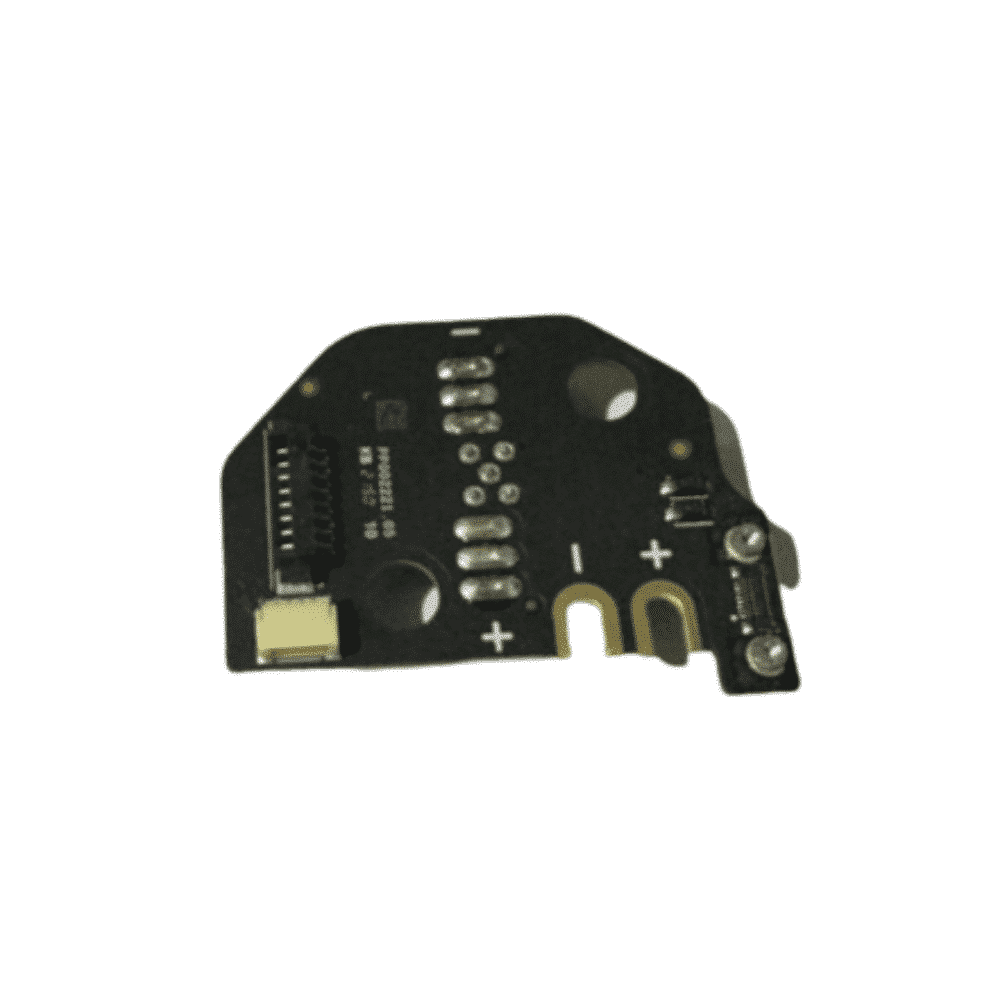

DJI Matrice 30 – Right Battery Port Module

DJI Matrice 30 – Right Battery Port Module

The right battery port module is the internal connector of the DJI Matrice 30 that provides the mechanical and electrical interface between the right TB30 battery and the drone’s power system. This module transmits the battery current to the ESCs and on-board electronics.

Function

The Matrice 30 uses a dual battery system (left and right) to ensure power redundancy. The right battery port module handles the connection, locking, and detection of the TB30 battery in the right compartment.

Compatibility

100% original DJI part, compatible with DJI Matrice 30 and DJI Matrice 30T.
