DJI Matrice 30 – Left Battery Port Module

DJI Matrice 30 – Left Battery Port Module

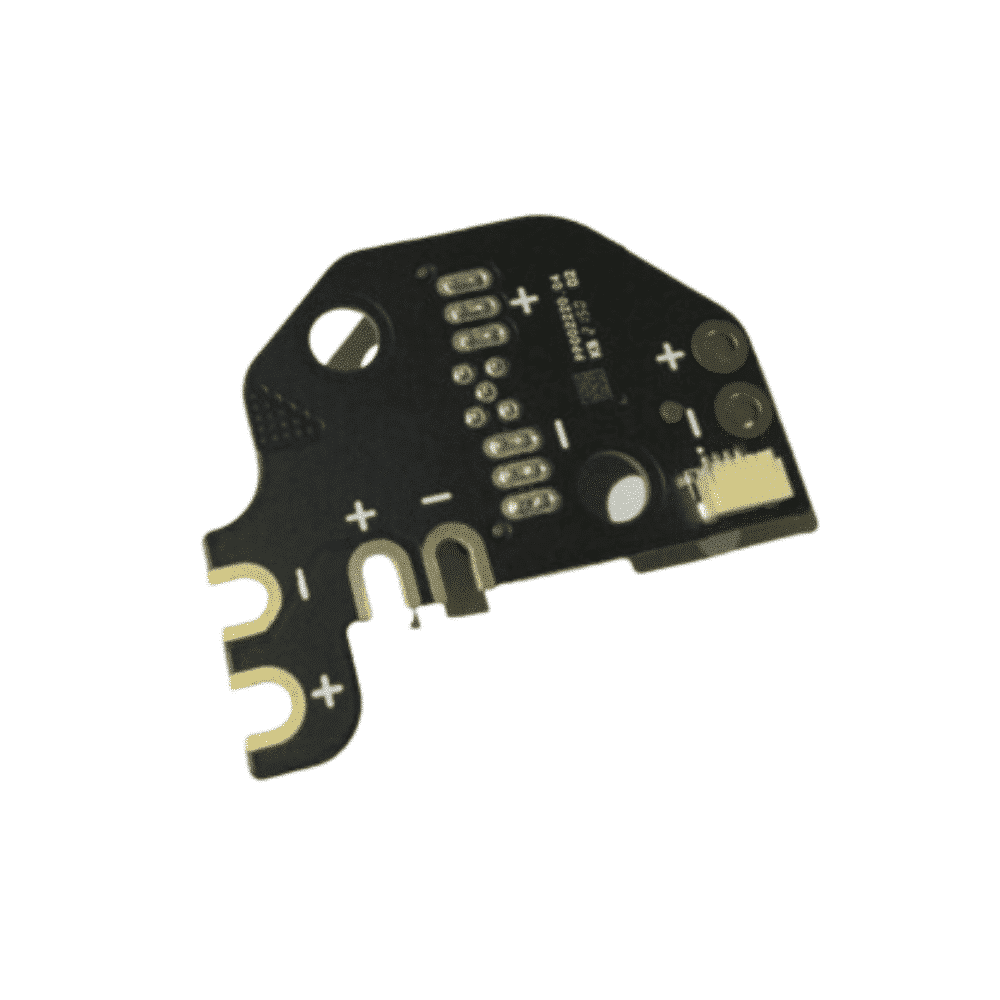

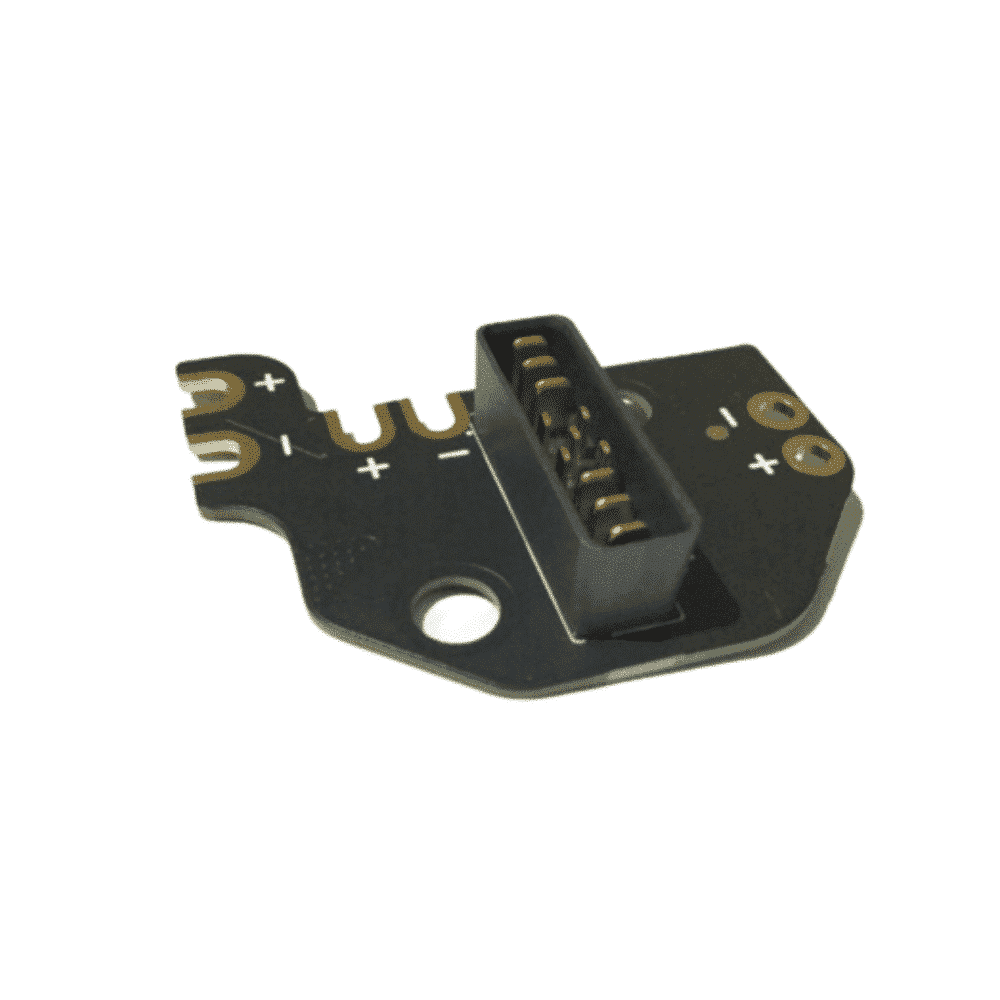

The left battery port module is the internal connector of the DJI Matrice 30 that provides the mechanical and electrical interface between the left TB30 battery and the drone’s power system. This module transmits the battery current to the ESCs and on-board electronics.

Function

The Matrice 30 uses a dual battery system (left and right) to ensure power redundancy. The left battery port module handles the connection, locking, and detection of the TB30 battery in the left compartment.

Compatibility

100% original DJI part, compatible with DJI Matrice 30 and DJI Matrice 30T.
