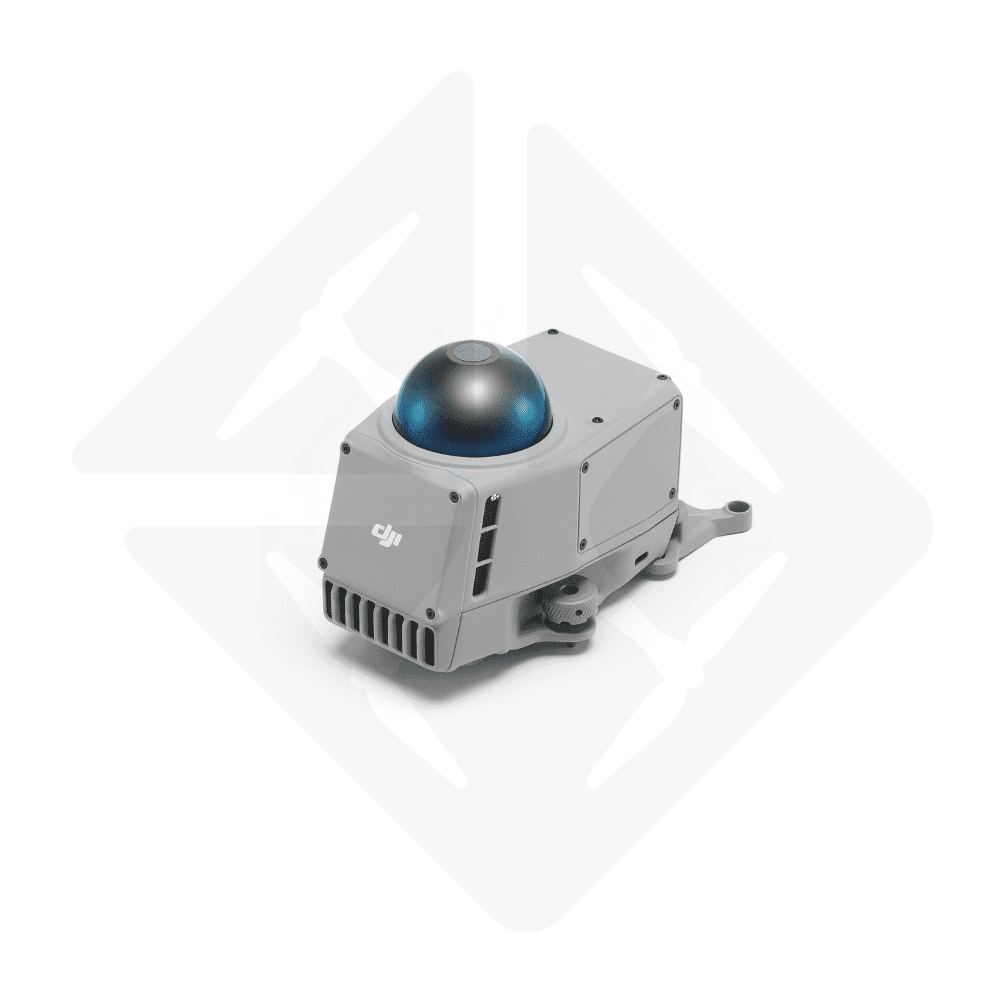

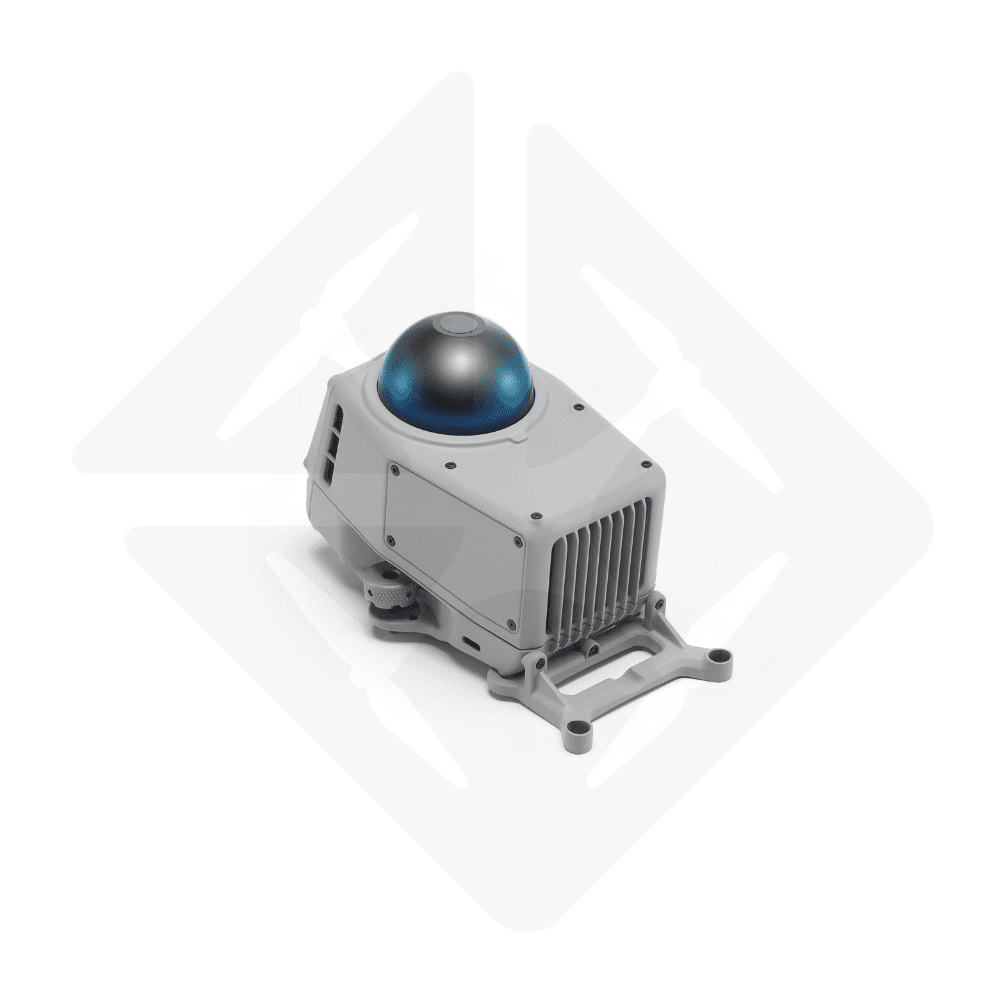

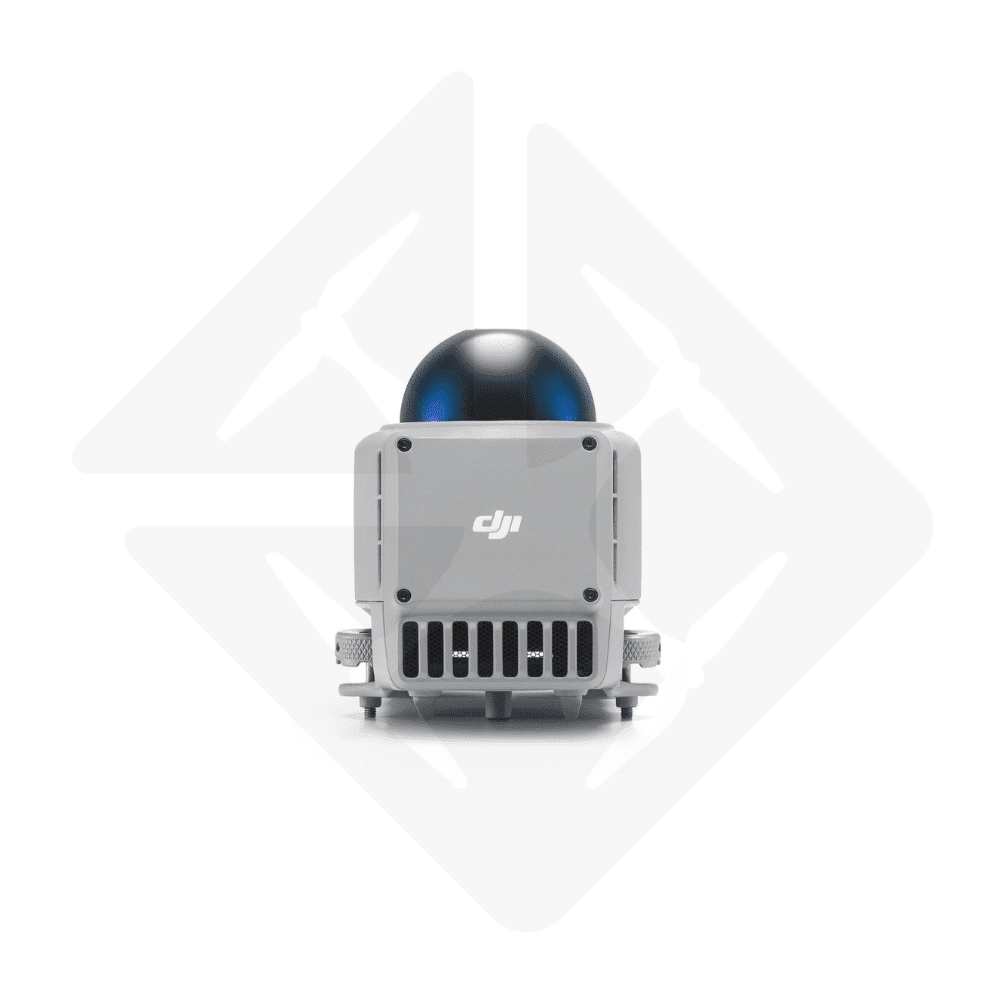

Matrice 4 Obstacle Sensing Module

The Matrice 4 Obstacle Sensing Module is an accessory designed to provide advanced obstacle detection for DJI drones in the Matrice 4D series. Combining LiDAR and millimetric radar, it enables omnidirectional avoidance and improves flight safety, even at 15 m/s.

Technical specifications

• Weight: 225 g
• Dimensions: 103.3 × 64 × 85.8 mm
• Protection rating: IP55 (water and dust resistant)
• Operating temperature: -20° to 50°C
• Detection type: LiDAR and 5-direction millimetre radar
• Field of view (FOV ) :
  • LiDAR: 360° vertical, 60° horizontal
  • Millimetric radar: 90° vertical, 90° horizontal
• Detection range: up to 100 m
• Effective detection speed: Vol at ≤15 m/s for avoiding obstacles as fine as 12 mm steel wire

Advanced protection for complex missions

This module improves obstacle detection in all directions, thanks to a combination of LiDAR and millimeter radar. It is designed to operate effectively in a variety of demanding environments.

🚨 Caution: Avoidance performance may be reduced under certain conditions (fog, rain, snow, fast-moving objects).

Why choose Matrice 4 Obstacle Sensing Module?

✔ Ultra-precise detection thanks to LiDAR and millimetre radar technology
✔ Omnidirectional obstacle avoidance, even for very fine objects
✔ Perfect compatibility with the Matrice 4D series
✔ IP55 resistance for reliable outdoor use
✔ Enhanced safety for high-speed flights
