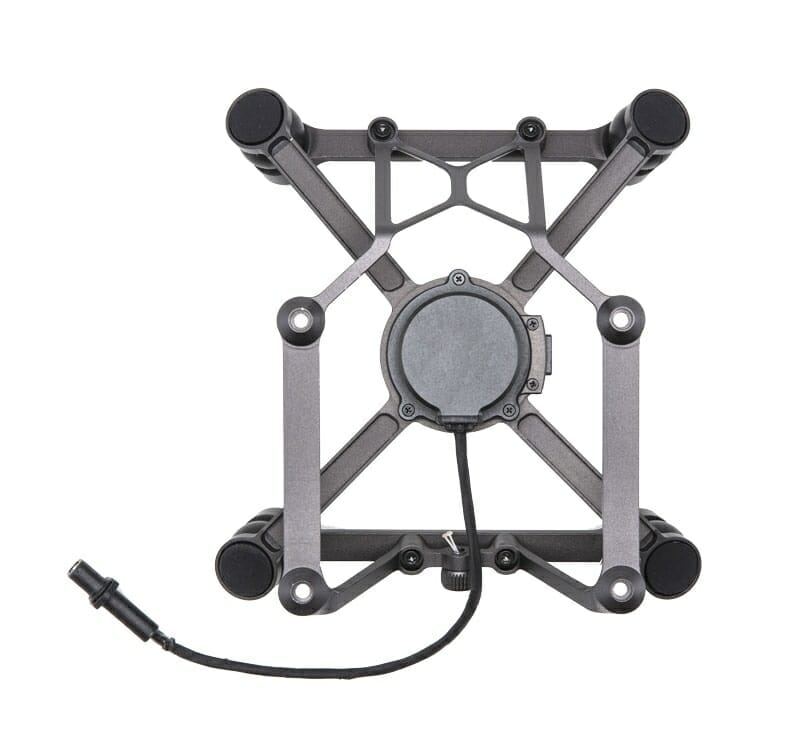

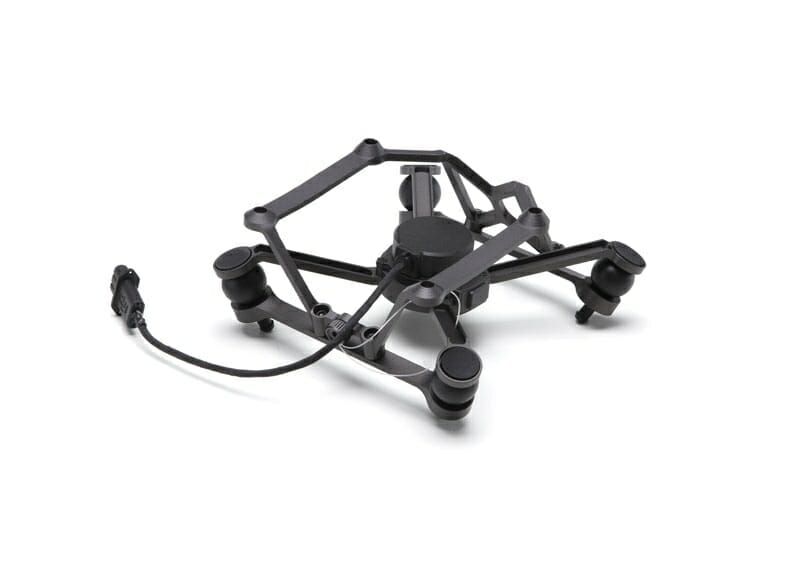

DJI Matrice 300 RTK – Upper Gimbal Connector

Top Gimbal Connector for DJI Matrice 300 RTK

The upper gimbal connector allows a compatible gimbal to be mounted on the top port of the DJI Matrice 300 RTK. This mounting position on the top of the drone is used for missions that require an upward clear field of view or a multi-pod setup.

Compatible Gimbals

This connector is compatible with the following gimbals from the DJI Enterprise series:

• DJI Zenmuse H20 / H20T (Hybrid Camera with Zoom, Wide-Angle, Laser Rangefinder and Thermal Camera)
• DJI Zenmuse XT2 (FLIR Thermal Camera)
• DJI Zenmuse Z30 (30x optical zoom camera)
• DJI Zenmuse XT S (Thermal Camera)

Installation

The connector installs on the upper gimbal port of the Matrice 300 RTK. The M300 RTK has three gimbal ports in total (two lower and one upper), allowing for simultaneous multi-sensor configuration for inspection, mapping, or public safety missions.

Official DJI Spare Part

This connector is an official DJI replacement part, identical to the one that came with the Matrice 300 RTK as standard. It is recommended to replace it in case of wear or damage to ensure a reliable connection between the drone and the gimbal.
