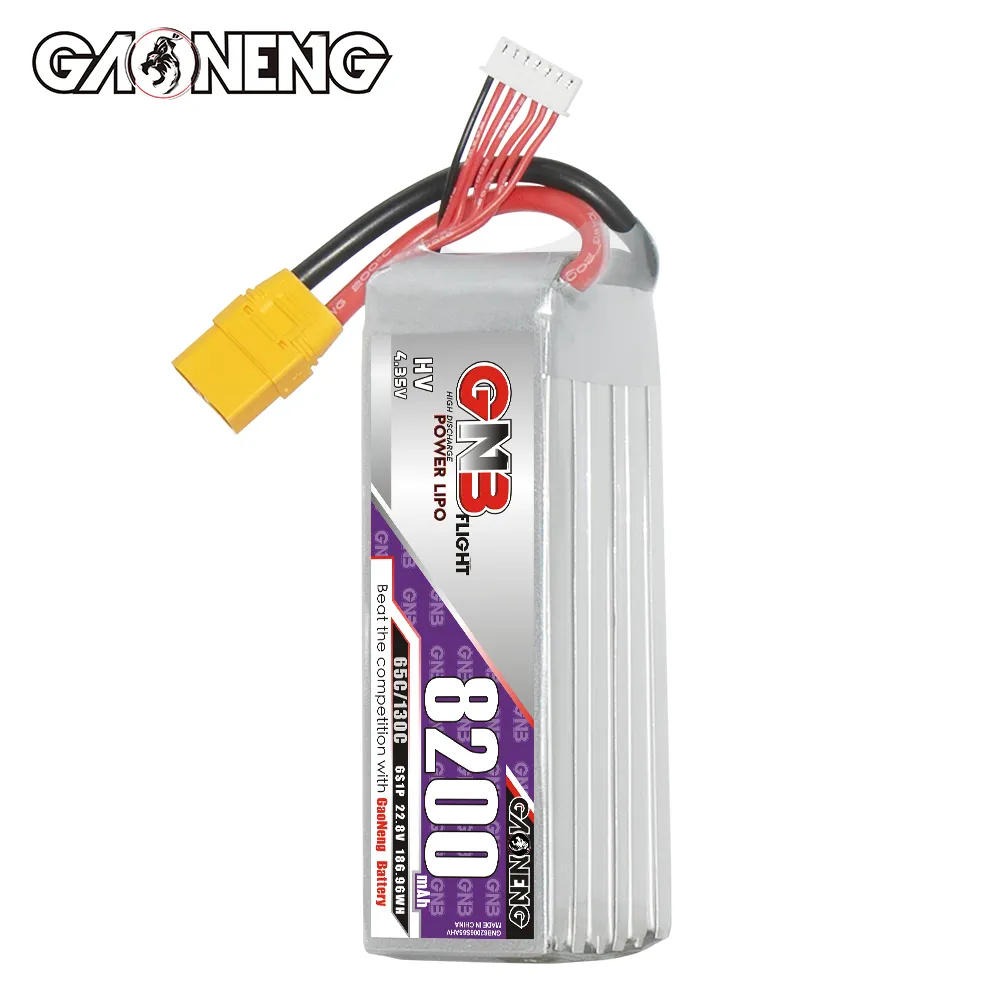

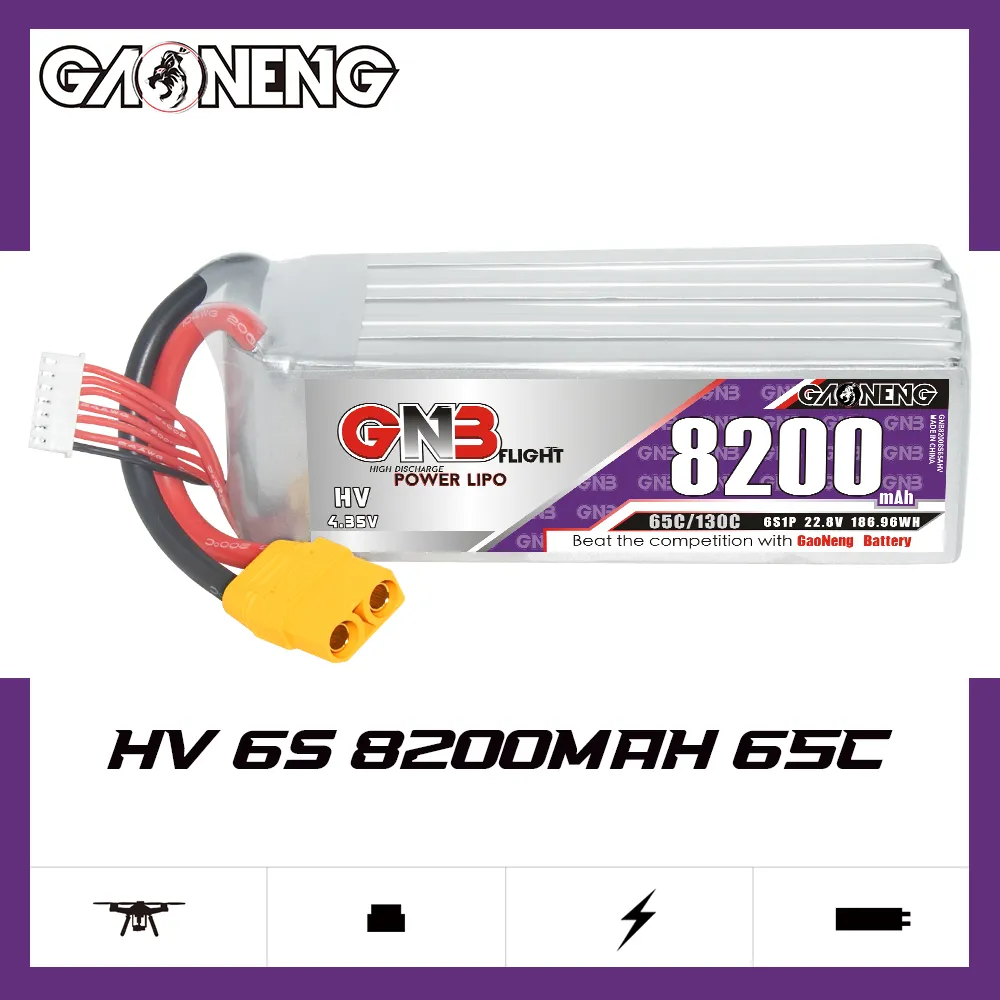

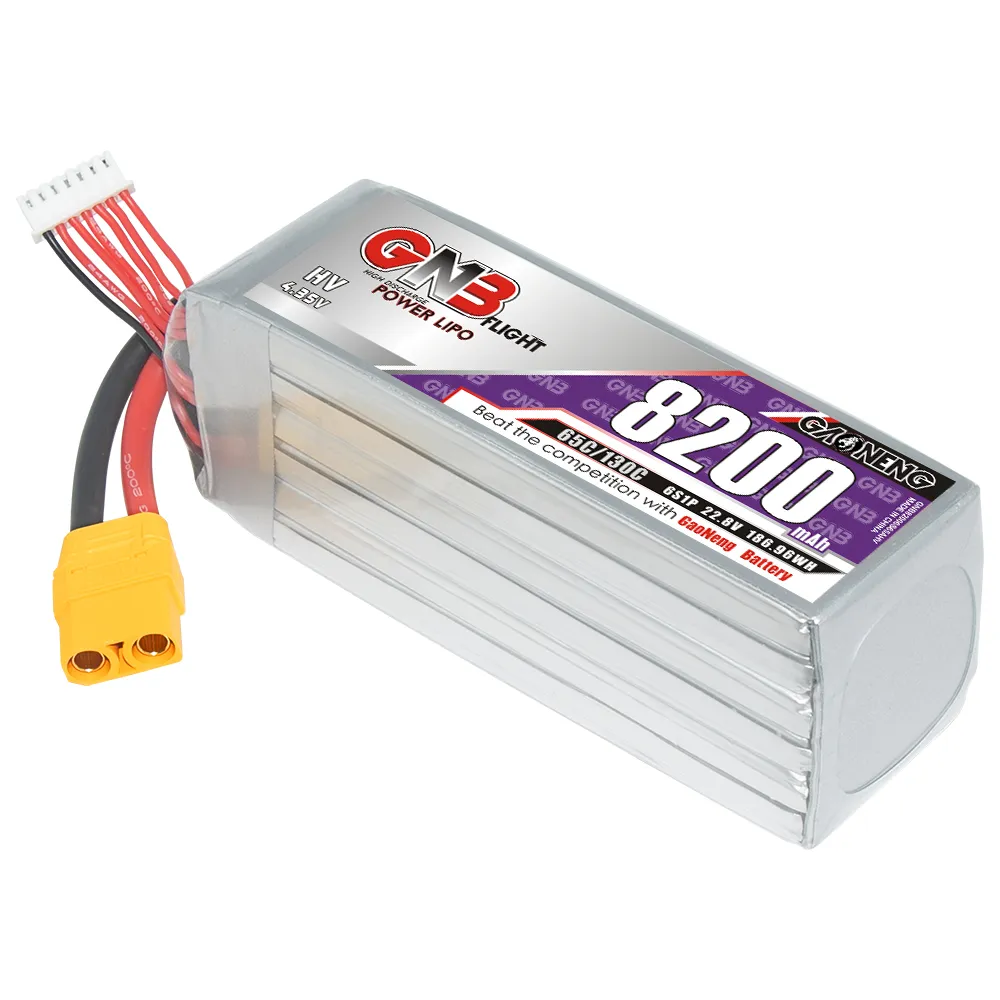

GAONENG GNB HV 6S 22.8V 8200mAh 65C XT60 LiPo Battery

GNB 6S 8200mAh LiPo battery: power and autonomy for your FPV drones

The GNB 6S 8200mAh LiPo battery is designed for demanding pilots. Manufactured by GaoNeng, this high-voltage (LiHV) battery delivers 22.8 V thanks to its 6S1P configuration. Its continuous discharge rate of 65C ensures stable power even during the most intense maneuvers. It is equipped with an XT60 connector for a reliable and secure connection.

GNB 8200mAh 65C Technical Specifications

• Model: GNB82006S65AHV
• Capacity: 8200 mAh
• Voltage: 22.8 V (LiHV high voltage)
• Configuration: 6S1P
• Discharge rate: 65C continuous / 130C peak
• Charging rate: 1C to 5C
• Discharge connector: XT60
• Balance connector: 7-pin JST-XH
• Dimensions: 68 × 44 × 141 mm (H × W × W)
• Weight: 868 g (±16 g)

High-voltage LiHV technology

Unlike conventional LiPo (3.7 V per cell), this battery uses LiHV technology. Each cell reaches 3.8 V nominal voltage. The result is a total voltage of 22.8 V instead of 22.2 V in standard 6S. This difference translates into more immediate power and better responsiveness in flight.

65C discharge rate: constant power

The continuous discharge rate of 65C means that the battery can deliver up to 533 A continuously. At peak, the rate reaches 130C, i.e. more than 1,000 A over short periods. This capacity makes the GNB 6S 8200mAh LiPo battery perfectly suited for current-demanding applications.

Applications compatible with this FPV 6S drone battery

GaoNeng has developed this battery to meet many RC and drone uses. Its 8200 mAh capacity provides above-average battery life for large drones. Here are the main compatible applications:

• 7 to 8 inch FPV drones (X8 chassis, 400-450 mm format)
• 10 inch X-Class FPV drones
• 1/7 and 1/8 scale RC vehicles
• EDF jets and 3D aircraft (FMS type)
• RC helicopters from 700 to 800 mm
• Multicopters and RC boats

XT60 connector: a versatile choice

This version is equipped with the XT60 connector, which is widely used in the FPV and RC world. This connector supports high currents while remaining compact and easy to handle. It is suitable for the majority of flight controllers and ESCs on the market. Feel free to contact our team if you need help checking compatibility with your hardware.

Charging Tips LiPo Safety

To get the most out of your GNB 6S 8200mAh LiPo battery, follow these essential guidelines. Proper maintenance significantly extends the life of your batteries.

• Use a LiHV-compatible charger with balancing function.
• Never exceed 4.35 V per cell under load (26.1 V total).
• Never go below 3.4 V per discharged cell (20.4 V total).
• Store the storage voltage battery (3.85 V per cell) between uses.
• Never charge unattended and keep the battery away from flammable materials.
• Use a fireproof charging bag (LiPo Safe Bag) as a precaution.

Transportation and Regulation

LiPo batteries are classified as dangerous goods for air transport. This is therefore done by road. Drone Parts Center ensures fast delivery from its European stock based in Belgium to the whole of Europe. Check out our shop to discover all our drone batteries and accessories.

Why choose GaoNeng (GNB)?

GaoNeng Battery Limited is a recognized manufacturer in the world of FPV and RC modeling. The GNB brand is renowned for its high-quality cells and high discharge rates. Thousands of FPV pilots around the world trust GNB for their competitions and freestyle sessions. This GNB 6S 8200mAh LiPo battery embodies this know-how in a high-capacity format.
