TBS – TBS Tracer nano tx starter set

In a race, microseconds count. Goggles down, thumbs up – are you ready for a true 250 Hz radio link? End-to-end latency: barely perceptible. Nothing else comes close! Thanks to 2.4 GHz technology, we’ve taken the best of Crossfire and reduced it to speed it up. The end result: smaller antennas, more speed, multi-day battery life.

INTRODUCING TBS TRACER – 2.4 GHZ “CROSSFIRE” RADIO SYSTEM

• 250 Hz: fastest radio link and telemetry available
• New 2.4 GHz technology not found in any other radio link
• 3 ms end-to-end latency
• Crossfire engine for optimal compatibility and functionality
• Transmitters in “JR” and “LITE” form factors
• Nanometer-sized receiver with antenna diversity
• 15mi+ / 25km+ range
• For drones, planes, helicopters, cars, and boats

THE FASTEST RADIO LINK

In a race, microseconds count. Goggles down, thumbs up – are you ready for a 250 Hz two-way radio link? End-to-end latency: basically zero (okay, 3ms!). Range: for days. Nothing comes close! We’ve taken the best of Crossfire and reduced and sped it up.

NOT JUST FOR RACE AND “FREERANGE” PILOTS

A single operating mode meets all requirements. A 250 Hz refresh rate. Plenty of penetration and range to outperform even the most serious video link. Full telemetry capability is standard, with no range degradation! Thanks to Crossfire’s pedigree, drone pilots, traditional RC pilots, and everyone in between can instantly access the familiar range of compatible software, devices, remote controls, and mounting boards.

EASE OF USE

OTA firmware updates, auto-bind, multi-bind, LUA device configuration such as flight controller PIDs, etc., and cloud connectivity: no problem! These are all features that TBS first introduced to the R/C space with TBS Crossfire! All receivers arrive in binding mode and it remembers your binding across all your radios, so the bind button is technically never necessary.

UNDER THE HOOD

TBS Tracer runs on the Crossfire engine. Over 6 years of active development and by far the most popular R/C system for FPV enthusiasts! You instantly benefit from the same reliability, features, and compatibility that drone pilots consider synonymous with peace of mind. So what’s the difference? Higher update rate, lower latency, smaller antennas due to higher frequency. Crossfire users will feel right at home!

THE TBS GUARANTEE

In our more than 10 years of existence, software updates have always been free, continuous and abundant. The hardware is designed for longevity and comes with a wide range of features that have yet to be unlocked. Support has always been focused on customer satisfaction. For pilots, by pilots.

This is the reason why TBS products are the most followed and why the investment in TBS Tracer will continue to pay off in the future – just as TBS Crossfire continues to do for all enthusiasts. As a thank you from us for your support, visit our website and enter your Crossfire’s serial number as a discount code for 25% off all TBS Tracer TX & RX products!

FEATURES:

• Long-range, adaptive, and robust remote control system for your drone and aircraft
• Low latency, 250 Hz update rate (5 times faster than normal – the fastest in the world) for stunning accuracy
• Two-way communication link with real-time vital links and telemetry
• OTA firmware updates, auto-bind, multi-bind support
• TBS Cloud connectivity with telemetry output for smartphone applications
• Fully configurable through OpenTX and TBS TANGO remote using CRSF protocol
• An “unlimited” number of people can fly at the same time
• Output power: 25 mW / 100 mW
• 8 or 12 channel output via CRSF, SBUS, inverted SBUS or PPM
• Serial modem capable of transmitting MAVLink or other serial protocols (uplink and downlink)

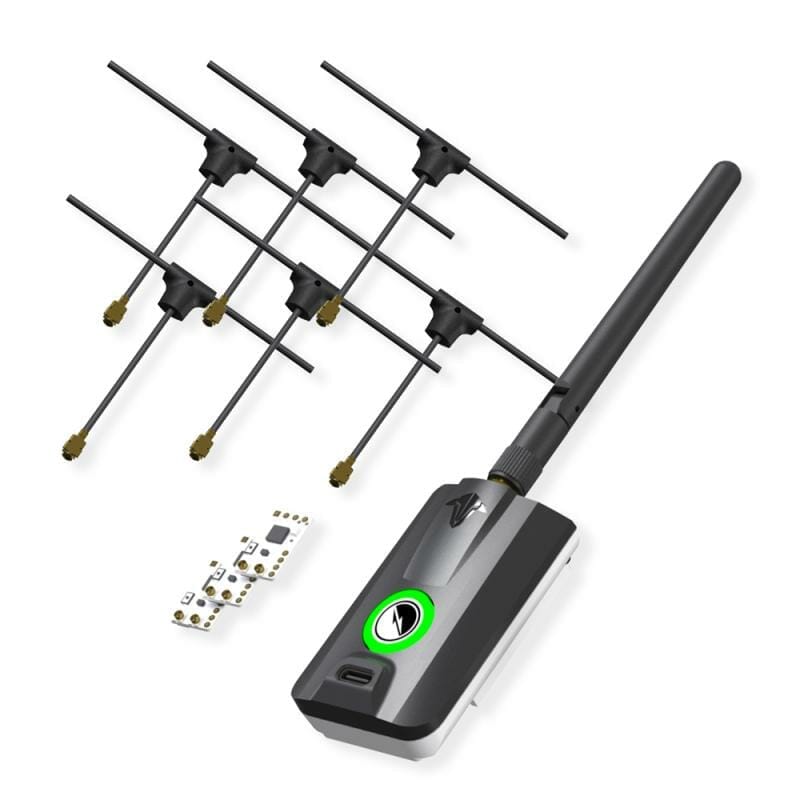

INCLUDES

• 1 x TBS Tracer Nano TX
• 3 x TBS Tracer Nano RX
• 6 x TBS Tracer Immortal T antenna

DOWNLOADS

• TBS Tracer Manual
• TBS Agent X (for software updates)
• Latest OpenTX LUA scripts for Crossfire
• TBS Cloud – Wi-Fi Firmware
• OpenTX Nightly Firmware

TBS TRACER NANO TX SPECIFICATIONS:

• Latency and refresh rate: 3 ms, 250 Hz
• Output power: 100 mW
• Frequency bands: ISM 2.4 GHz
• Input voltage: 3.5 – 13 V
• Connector: USB-C
• Power consumption: 1.1 W (@ 10 mW) – 2 W (@ 100 mW)
• Dimensions: 65 x 48 x 22 mm (JR module size)
• Radio compatibility: LITE module bay (e.g., TBS Tango 2, Taranis X-Lite, X9 Lite), OpenTX V2.1+. The TBS Tracer Nano TX is recommended for use in Futaba and Spektrum remote controls that do not have a JR module bay.

* Output power modes may not be available due to local regulatory limitations

SPECIFICATIONS OF THE TBS TRACER NANO RX:

• Antenna Ports: 2x u.FL / IPEX (diversity)
• Package contents: 1x TBS Tracer Nano RX, 2x Immortal-T, silicone cables
• Protocols: 2x CRSF, SBUS, PPM, 6x PWM, SmartAudio 2.0 / 2.1 (VTx control)
• Weight: 0.5 g (receiver only)
• Size: 11 mm x 18 mm
